1979 Ford Bronco Headlight Switch Connector C-701 Wiring Diagram & Wire Colors

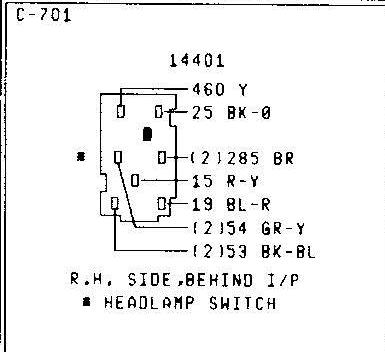

This document is a single-page connector pinout diagram from a Ford factory wiring reference, showing connector C-701, the headlamp switch connector (wiring harness group 14401). The diagram depicts the physical outline of the connector body with each cavity labeled by its circuit number and wire color code. The circuits shown are: 460 Y (yellow), 25 BK-0 (black-orange), (2)285 BR (brown, two wires), 15 R-Y (red-yellow), 19 BL-R (blue-red), (2)54 GR-Y (green-yellow, two wires), and (2)53 BK-BL (black-blue, two wires). A note below the diagram states the connector is located on the right-hand side, behind the instrument panel (I/P), and an asterisk keys one cavity to the headlamp switch. A reader can use this diagram to identify each terminal position on the headlamp switch connector by circuit number and wire color, useful for diagnosing headlight, dash illumination, and related lighting circuit problems, or for repairing or replacing the headlight switch connector on a vintage Ford truck such as a late-1970s Bronco. The page carries no explicit year, model, or engine applicability statement.
