Ford Bronco Cowl & Dash Wiring Harness Routing Diagram - Exploded View

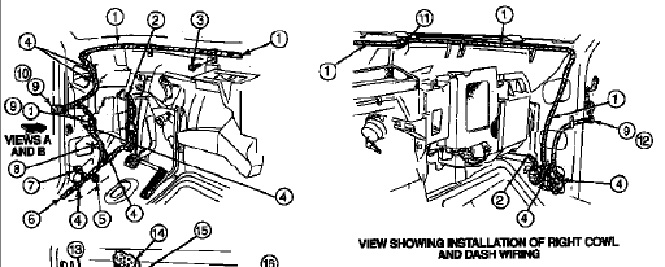

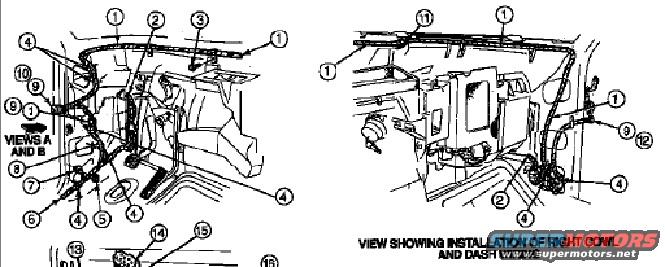

This document is a cropped scan of an exploded-parts style illustration showing the routing and installation of cowl and dash wiring in a Ford truck-type vehicle. Two line drawings are shown side by side: the left drawing (labeled 'VIEWS A AND B') depicts the left/driver-side cowl and dash area with numbered callouts 1 through 12 pointing to wiring harness segments, retaining clips, grommets, and attachment points along the cowl, dash panel, and firewall. The right drawing is captioned 'VIEW SHOWING INSTALLATION OF RIGHT COWL AND DASH WIRING' and shows the passenger-side cowl/dash area with callouts 1, 2, 4, 9, 11, and 12 indicating harness routing and fasteners around the heater/blower housing area. A third illustration is cut off at the bottom edge of the scan, with callouts 13, 14, 15, and 16 visible. No legend or parts table accompanies the drawings in this crop, so the numbered items cannot be identified from this page alone. The document contains no visible year, model, or part number text. It would be used alongside its (missing) legend to identify harness routing points and hardware for cowl and dash wiring installation.
