What fuses power the headlights on this Expedition/Navigator diagram?

Fuse 16 (20A) feeds the high beams via LT GRN/BLK, Fuse 28 (10A) feeds the left low beam via DK BLU/WHT, and Fuse 26 (10A) feeds the right low beam via DK GRN/ORG, all in the Central Junction Box.

Which fuse feeds the fog lamp switch?

Fuse 27, a 5A fuse in the Central Junction Box, feeds the fog lamp switch through a WHT/BLK wire to pin 2 of connector C246 at the main light switch.

Where is the fog lamp relay located and what are its wire colors?

The fog lamp relay is in the Battery Junction Box. Pin 2 is YEL (coil signal), pin 3 is ORG/LT GRN (power feed), pin 1 is BLK to ground G104 via splice S152, and pin 5 outputs TAN/ORG to both fog lamps via splice S147.

What wire feeds the hi-beam indicator in the instrument cluster?

A GRY/WHT wire enters pin 12 of connector C238 to the hi-beam indicator, which grounds through pin 1 of C238 via a BLK wire to splice S204 and ground G200.

How do the headlamp and fog lamp grounds differ between Expedition and Navigator?

The right headlamp and fog lamp grounds join at splice S104 on the Expedition or S103 on the Navigator, then go to ground G103.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1030295

2002 Ford Expedition/Navigator Headlight & Fog Lamp Wiring Diagram (Bottom)

Ford Expedition/Navigator headlamp and fog lamp wiring schematic with fuse box callouts

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1994 Ford Bronco/F-Series Electric Shift 4WD Wiring Diagram - Transfer Case

1996 Ford Bronco A/C Clutch Circuit Wiring Diagram - Pressure Switch & Diode

2002 Ford Expedition Headlight Wiring Diagram - Autolamp & Headlamp Relay (Top)

2002 Ford Expedition/Navigator Headlight & Fog Lamp Wiring Diagram (Bottom)

2002 Ford Expedition / Navigator Headlight & Fog Lamp Wiring Diagram

1994 Ford Bronco Positive Battery Cable Measurements & Routing Diagram

Ford Super Duty / Excursion Power Seat Wiring Diagram - Driver Seat Motor & Switch

2001 Ford F-150 Heated Seat Wiring Diagram - Modules, Switches & Fuses

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford Bronco Front Coil Spring & Shock Absorber Exploded Diagram (F2858-Q)

Exploded parts

Titan Engines Install Notes, Core Return & Warranty Info Sheet - Ocala FL

Service procedure

1994 Ford Bronco Door Jamb VIN Data Plate - GVWR, Axle & Paint Codes

Spec plate

Ford Transmission Pan Identification Chart - C4, C5, C6, AOD, E4OD, 4R70W

Manual page

1994 Ford Bronco Negative Battery Cable Diagram - Ground Cable Lengths

Schematic

Heavy-Duty Headlight Harness 1980-96 Ford Bronco/Truck - Part Numbers & Prices

Brochure

Blueprint

1988 Ford 5.8L Calibration 8-64H-R00 VECI Label & Parts List (E8AE-9C485 AGA)

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Driveshaft Operating Angle vs Shaft RPM Chart - Pinion Angle at Speed

Torque spec

Headlamp and fog lamp wiring schematic (Ford Expedition/Navigator) showing headlamp relay, central junction fuse box (20A fuses), fog lamp relay and switch, hi/lo beam circuits and grounds.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption July 2014 · Photo 2096 of 2998

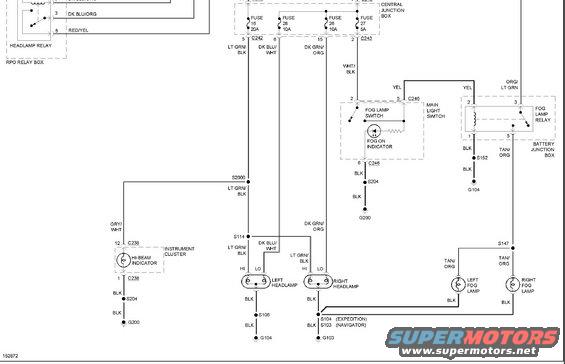

This is the bottom portion of a headlamp and fog lamp wiring diagram, applicable to the Ford Expedition and Lincoln Navigator (both are explicitly named at splice S104/S103). It shows power distribution from the Central Junction Box through Fuse 16 (20A, LT GRN/BLK, high beams), Fuse 28 (10A, DK BLU/WHT, left low beam), Fuse 26 (10A, DK GRN/ORG, right low beam), and Fuse 27 (5A, WHT/BLK, fog lamp switch feed). The headlamp relay resides in the RPO relay box (pins with DK BLU/ORG and RED/YEL wires). The fog lamp circuit runs from Fuse 27 through the fog lamp switch and fog-on indicator in the main light switch (connector C246), energizing the fog lamp relay in the battery junction box (YEL coil, ORG/LT GRN feed, TAN/ORG output at pin 5) to feed the left and right fog lamps via splice S147. The hi-beam indicator in the instrument cluster is fed by GRY/WHT via connector C238. Grounds are shown at G103, G104, and G200 through splices S103/S104 (Expedition/Navigator), S106, S152, and S204. Drawing reference number 152872 appears at the bottom.
