What Ford part number is the rear brake shoe retracting spring?

The brake shoe retracting spring is part number 2296 (item 5 in the parts table).

What grease should be applied to the rear brake backing plate?

Apply a light 0.80mm (1/32 inch) coating of high temperature lithium-base grease, Premium Long-Life Grease XG-1-C or -K (ESA-M1C75-B), or Disc Brake Caliper Lubricant D7AZ-19590-A (ESA-M1C172-A) or equivalent, where the shoes touch the backing plate; also lubricate the adjusting cable eye and anchor pin area.

Which vehicles use this self-adjusting rear drum brake assembly?

The diagram is labeled 'Self-Adjusting Brake Assemblies, Rear, Standard, F-150, E-150 and Bronco' and shows the 10-inch rear brake (left side). The manual footer covers the 1994 Econoline, F-150, F-250, F-350, Bronco and F-Super Duty.

What is the part number for the rear wheel cylinder?

Item 3, the rear wheel cylinder, is part number 2261.

How should the cable anchor be positioned during installation?

Install the brake shoe anchor pin guide plate (if equipped) and place the cable anchor over the anchor pin with the crimped side toward the brake backing plate.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1038090

1994 Ford Bronco/F-150 Rear Drum Brake Diagram & Parts List - 06-02-9

Rear drum brake removal and installation manual page with diagrams and part-number table

‹ ›

Rear drum brake removal and installation procedure with spring-replacement diagrams, part-number table and numbered steps.

AI caption October 2014 · Photo 237 of 413

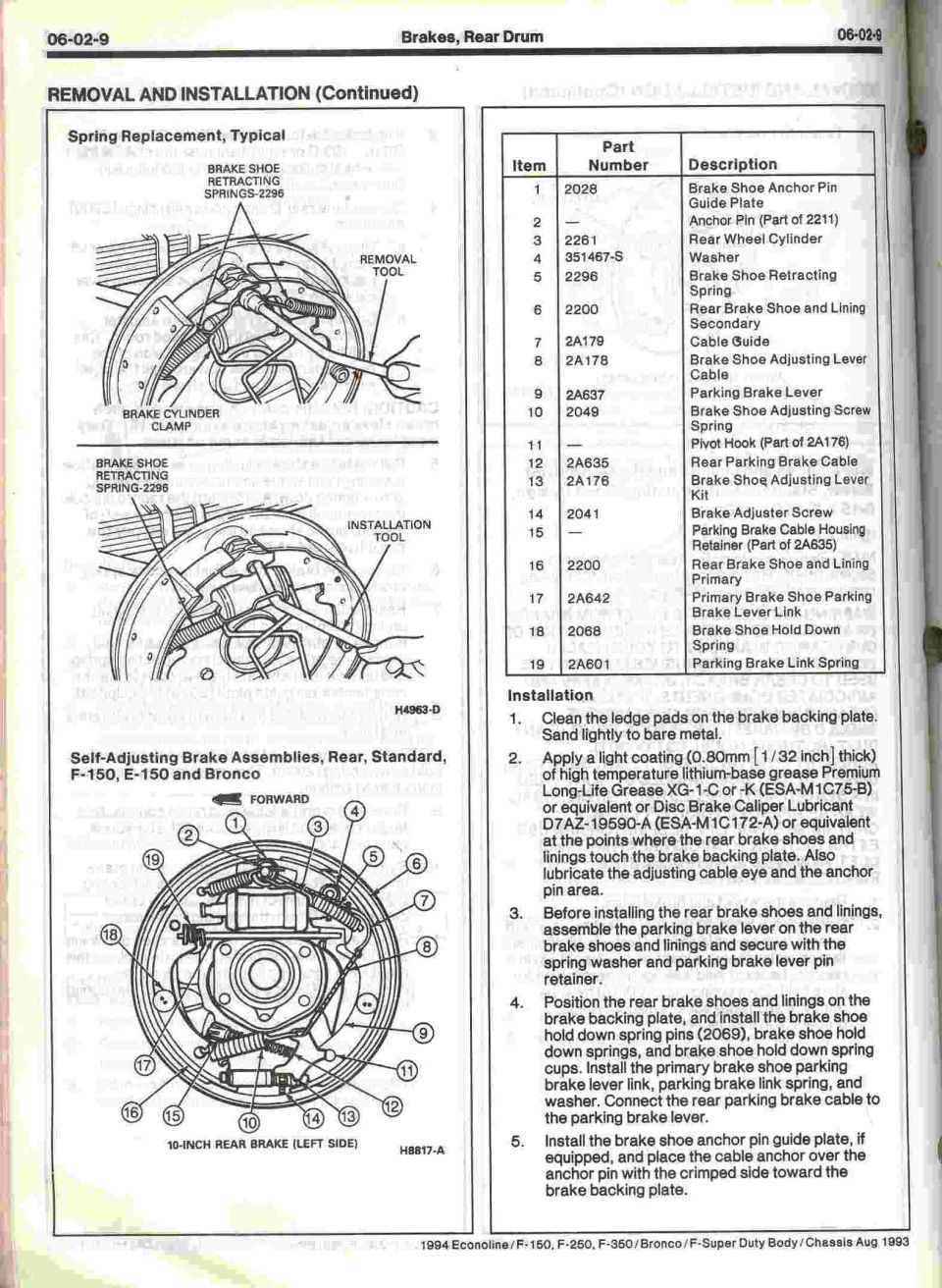

This is page 06-02-9 from the 1994 Ford Econoline / F-150, F-250, F-350 / Bronco / F-Super Duty Body & Chassis service manual (dated Aug 1993), covering rear drum brake removal and installation. The page shows two illustrations of typical brake shoe retracting spring replacement using a removal tool and an installation tool (with a brake cylinder clamp), plus an exploded diagram of the self-adjusting 10-inch rear brake assembly (left side) used on standard F-150, E-150 and Bronco. A 19-item parts legend identifies each numbered component with its Ford base part number, including the brake shoe anchor pin guide plate (2028), rear wheel cylinder (2261), brake shoe retracting spring (2296), brake shoes and linings (2200), cable guide (2A179), adjusting lever cable (2A178), parking brake lever (2A637), rear parking brake cable (2A635), adjusting lever kit (2A176), adjuster screw (2041), hold down spring (2068), and parking brake link spring (2A601). Installation steps 1-5 explain cleaning and sanding the backing plate ledge pads, applying lithium-base grease (XG-1-C/-K, ESA-M1C75-B) or caliper lubricant (D7AZ-19590-A) at shoe contact points, assembling the parking brake lever, installing shoes with hold down hardware, and fitting the anchor pin guide plate and cable anchor.
