1990 Ford Bronco MLPS Connector Pinout Diagram - E4OD Wire Colors & Circuits

Manual level position sensor connector pinout with circuit numbers and wire color codes
Manual level position sensor connector pinout with circuit numbers and wire color codesOriginal file
Manual level position sensor connector pinout with circuit numbers and wire color codes

Reference · 1987-1991 BroncoAll 175 wiring diagrams

Ford EEC-IV Self-Test Connector Diagram - STO, STI, SIGRTN & Fuel Pump Pins 1995 Ford Bronco 5.0L Engine Controls Wiring Diagram - MAP, HO2S, PCM (24-6) 1990 Ford Bronco Courtesy Lamps Wiring Diagram 89-2 - Dome & Cargo Lamp Circuit 1990 Ford Bronco MLPS Connector Pinout Diagram - E4OD Wire Colors & Circuits 1990 Ford Bronco Connector Pinouts: MLPS, Main Light & Tailgate Window Switch 1990 Ford Bronco Instrument Cluster Connector Pinout C250 & C251 (150-12) 1995 Ford Bronco Warning Chime Module C280 Connector Pinout & Wire Colors (66-2) 1995 Ford Bronco Warning Chime Wiring Diagram (66-1) - Seat Belt & Key Buzzer Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Wiring diagram of the manual level position sensor connector showing terminal circuit numbers and color-coded wires.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 1711 of 1787

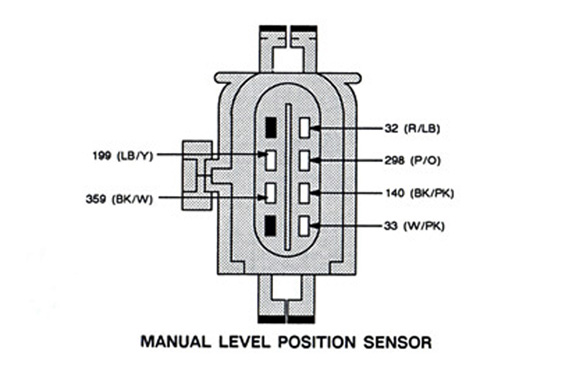

This document is a connector face diagram for a Ford Manual Lever Position Sensor (labeled in the scan as "MANUAL LEVEL POSITION SENSOR"), the transmission range sensor used with the E4OD automatic transmission. The illustration shows the oval sensor connector viewed head-on, with six terminal cavities identified by callout leaders. On the left side of the connector are circuit 199 with a light blue/yellow (LB/Y) wire and circuit 359 with a black/white (BK/W) wire. On the right side, from top to bottom, are circuit 32 with a red/light blue (R/LB) wire, circuit 298 with a purple/orange (P/O) wire, circuit 140 with a black/pink (BK/PK) wire, and circuit 33 with a white/pink (W/PK) wire. The diagram allows a technician to identify which circuit and wire color corresponds to each terminal position when testing or repairing the MLPS wiring on a vehicle such as the uploader's 1990 Ford Bronco. The document itself carries no year, model, or part number markings; its applicability is inferred from the album context (1990 Bronco E4OD/MLPS reference scans).

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire colors are on the MLPS (Manual Lever Position Sensor) connector?
The diagram shows six wires: circuit 199 (LB/Y, light blue/yellow), circuit 359 (BK/W, black/white), circuit 32 (R/LB, red/light blue), circuit 298 (P/O, purple/orange), circuit 140 (BK/PK, black/pink), and circuit 33 (W/PK, white/pink).
Which circuit numbers appear on the left side of the MLPS connector?
Circuit 199 (LB/Y wire) and circuit 359 (BK/W wire) are shown on the left side of the connector.
Which circuit numbers appear on the right side of the MLPS connector?
From top to bottom: circuit 32 (R/LB), circuit 298 (P/O), circuit 140 (BK/PK), and circuit 33 (W/PK).
How many terminals does this MLPS connector diagram show?
The diagram identifies six terminals with circuit numbers and wire colors: 199, 359, 32, 298, 140, and 33.
