What are connectors C250 and C251 on a 1990 Ford Bronco?

They are the two 14-pin instrument cluster connectors (gasoline engine). C250 handles indicators like seat belt, high beam, tachometer, 4x4, low range, fuel level, and power supply; C251 handles oil pressure, left turn, brake warning, Check Engine input from EEC, temperature, engine warning, and the amp indicator circuits.

Which pin on C250 is the tachometer input?

Pin 6, circuit 11 (DG/Y: dark green/yellow) is the tachometer input; pin 7, circuit 398 (BK/Y) is the tachometer ground.

What wire feeds power to the instrument cluster in RUN and START?

Circuit 640 (R/Y: red/yellow): pin 13 on connector C250 and pin 5 on connector C251, labeled 'Power Supply in RUN and START.'

Which pin carries the Check Engine light signal from the EEC?

C251 pin 9, circuit 658 (PK/LG: pink/light green), 'Check Engine' Input From EEC.

Where is the 4x4 indicator input on the cluster connector?

C250 pin 10, circuit 210 (LB: light blue), 4x4 Indicator Input. The Low Range input is pin 11, circuit 782 (BR/W, Bronco only) / 784 (LB/BK).

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1049964

1990 Ford Bronco Instrument Cluster Connector Pinout C250 & C251 (150-12)

Ford instrument cluster connector face and pinout chart C250 C251 gasoline 150-12

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1990 Ford Bronco Courtesy Lamps Wiring Diagram 89-2 - Dome & Cargo Lamp Circuit

1990 Ford Bronco MLPS Connector Pinout Diagram - E4OD Wire Colors & Circuits

1990 Ford Bronco Connector Pinouts: MLPS, Main Light & Tailgate Window Switch

1990 Ford Bronco Instrument Cluster Connector Pinout C250 & C251 (150-12)

1995 Ford Bronco Warning Chime Module C280 Connector Pinout & Wire Colors (66-2)

1995 Ford Bronco Warning Chime Wiring Diagram (66-1) - Seat Belt & Key Buzzer

Ford Duraspark II Breakerless Ignition Wiring Diagram - Primary & Secondary

Ford Bronco IAC / Throttle Air Bypass Valve Solenoid Wiring Diagram (C160, S165)

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

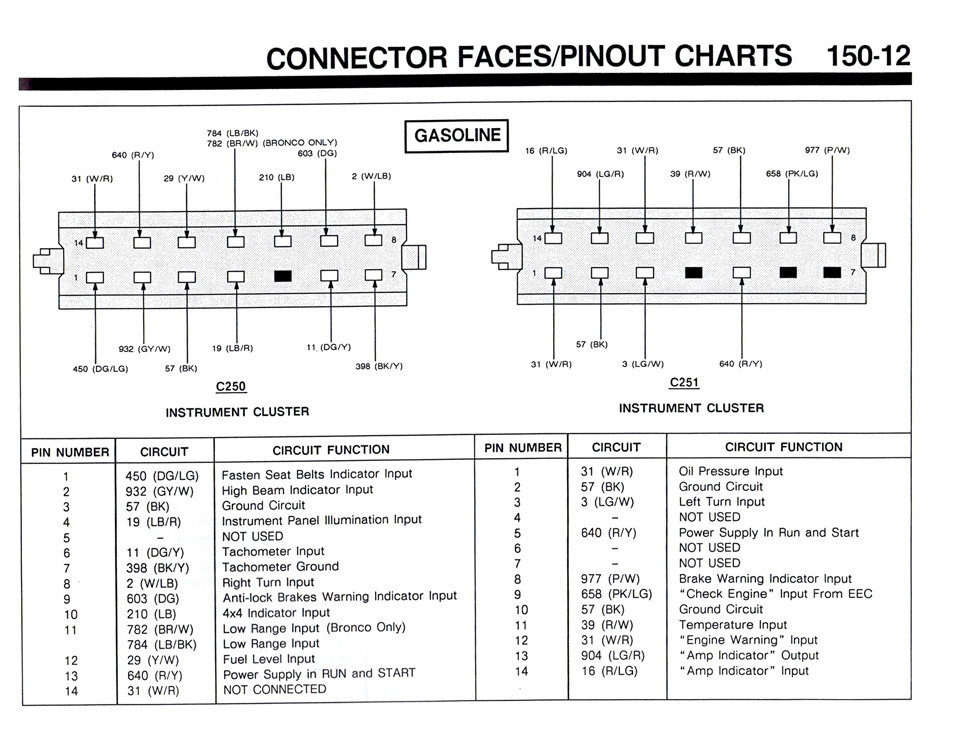

Connector face/pinout chart (page 150-12) for the Ford instrument cluster connectors C250 and C251, listing pin numbers, circuit IDs, wire colors and functions for gasoline applications.
