1995 Ford Bronco 5.0L Engine Controls Wiring Diagram - MAP, HO2S, PCM (24-6)

1995 Bronco 5.0L engine controls wiring diagram with PCM, MAP and heated oxygen sensor
1995 Bronco 5.0L engine controls wiring diagram with PCM, MAP and heated oxygen sensorOriginal file
1995 Bronco 5.0L engine controls wiring diagram with PCM, MAP and heated oxygen sensor

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1990 Ford Bronco Speed Control Wiring Diagram 31-2 - Cruise Servo & Amplifier 1990 Ford Bronco Speed Control Wiring Diagram 31-1 - Cruise Control Circuit Ford EEC-IV Self-Test Connector Diagram - STO, STI, SIGRTN & Fuel Pump Pins 1995 Ford Bronco 5.0L Engine Controls Wiring Diagram - MAP, HO2S, PCM (24-6) 1990 Ford Bronco Courtesy Lamps Wiring Diagram 89-2 - Dome & Cargo Lamp Circuit 1990 Ford Bronco MLPS Connector Pinout Diagram - E4OD Wire Colors & Circuits 1990 Ford Bronco Connector Pinouts: MLPS, Main Light & Tailgate Window Switch 1990 Ford Bronco Instrument Cluster Connector Pinout C250 & C251 (150-12) Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Wiring diagram of the 5.0L engine controls showing the PCM, MAP sensor, heated oxygen sensor and color-coded circuits.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 1715 of 1787

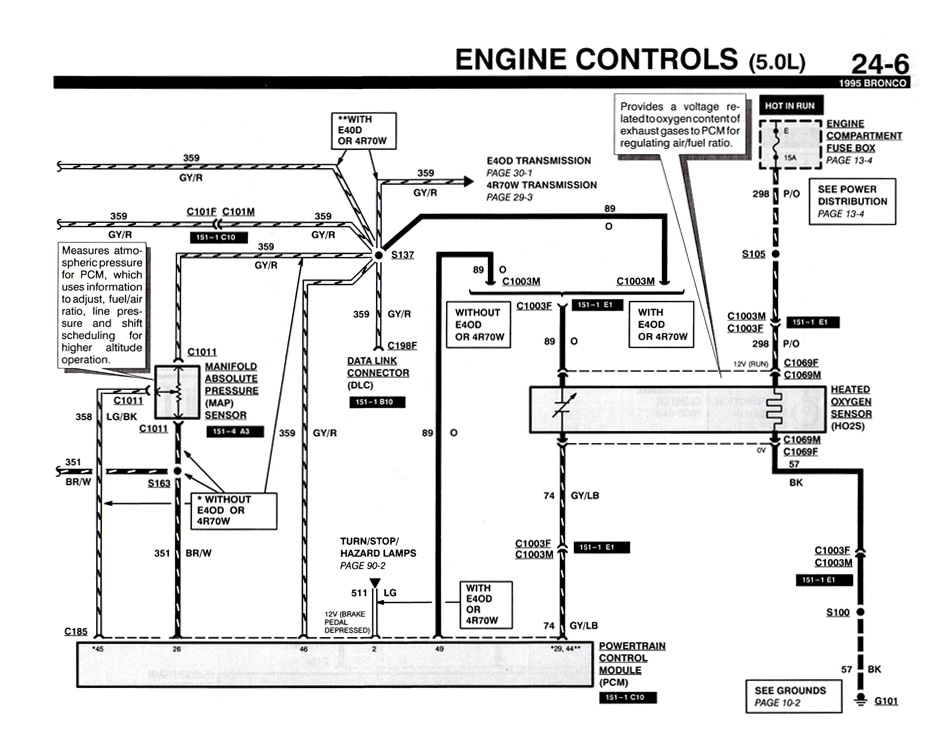

This is page 24-6 of the 1995 Ford Bronco factory wiring diagrams (EVTM), covering the Engine Controls circuit for the 5.0L engine. The diagram shows wiring between the Powertrain Control Module (PCM), the Manifold Absolute Pressure (MAP) sensor, the Data Link Connector (DLC), and the Heated Oxygen Sensor (HO2S). Circuit numbers and wire colors are labeled, including circuit 359 GY/R (signal return/reference through splice S137 and connectors C101F/C101M), circuit 358 LG/BK and 351 BR/W for the MAP sensor, circuit 89 O to the oxygen sensor signal, circuit 74 GY/LB, circuit 298 P/O feeding the HO2S heater from fuse E (15A, Hot in Run) in the engine compartment fuse box, circuit 511 LG from the turn/stop/hazard lamps (12V with brake pedal depressed), and circuit 57 BK ground to G101 via splice S100. Callout notes explain that the HO2S provides a voltage related to exhaust oxygen content for air/fuel regulation, and that the MAP sensor measures atmospheric pressure for fuel/air ratio, line pressure, and shift scheduling adjustments at altitude. Cross-references point to Power Distribution (page 13-4), E4OD Transmission (page 30-1), 4R70W Transmission (page 29-3), Turn/Stop/Hazard Lamps (page 90-2), Grounds (page 10-2), and component location views (section 151). Footnotes distinguish wiring with and without E4OD or 4R70W transmissions.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers the heated oxygen sensor (HO2S) on the 1995 Bronco 5.0L?
Fuse E, a 15A fuse in the engine compartment fuse box, Hot in Run, feeding circuit 298 (P/O wire) to the HO2S heater. See Power Distribution page 13-4.
What wire colors connect to the MAP sensor on the 1995 Bronco 5.0L?
The MAP sensor (connector C1011) uses circuit 359 GY/R (gray/red), circuit 358 LG/BK (light green/black), and circuit 351 BR/W (brown/white).
What does the MAP sensor do according to this diagram?
It measures atmospheric pressure for the PCM, which uses the information to adjust fuel/air ratio, line pressure, and shift scheduling for higher altitude operation.
Where does the oxygen sensor ground on the 1995 Bronco?
The HO2S grounds through circuit 57 (BK wire), through connectors C1003F/C1003M and splice S100 to ground G101 (see Grounds, page 10-2).
What is the oxygen sensor signal circuit to the PCM?
Circuit 89 (orange wire) carries the HO2S signal voltage to the PCM; routing differs with or without the E4OD or 4R70W transmission, and circuit 74 GY/LB is also shown to the PCM.
