Hyundai Genesis Coupe (BK2) Audio System Specifications - Radio & Amplifier Specs
Scanned service-manual specification table for the audio system listing model, power supply, rated output, antenna, tuning type, and AM/FM frequency ranges.

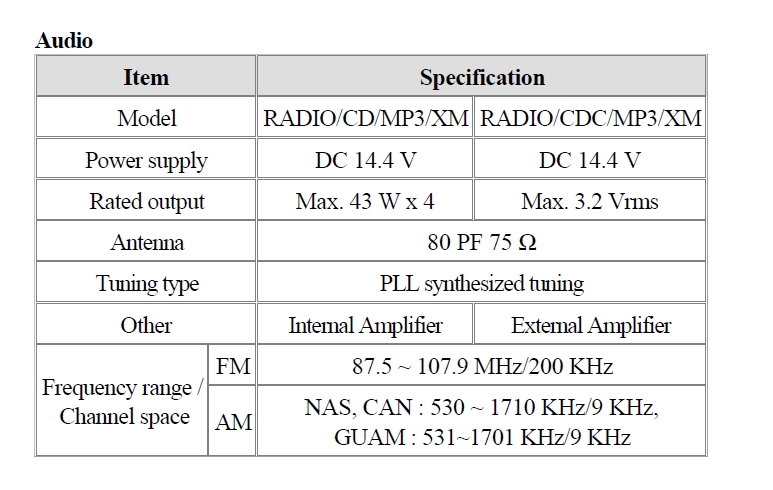

This document is a single specification table titled "Audio" from an automotive service/reference manual, uploaded as amplifier specs for a Hyundai Genesis (BK2). The table compares two head unit variants: RADIO/CD/MP3/XM (internal amplifier) and RADIO/CDC/MP3/XM (external amplifier). Both units operate on a DC 14.4 V power supply. The internal-amplifier unit is rated at a maximum output of 43 W x 4 channels, while the external-amplifier unit outputs a maximum of 3.2 Vrms (line-level output feeding the external amp). Shared specifications include an 80 PF 75-ohm antenna and PLL synthesized tuning. Frequency range and channel spacing are listed as FM: 87.5–107.9 MHz with 200 KHz spacing; AM: 530–1710 KHz with 9 KHz spacing for NAS (North American Spec) and CAN (Canada) markets, and 531–1701 KHz with 9 KHz spacing for GUAM. The document is useful for identifying which audio system a vehicle has (internal vs. external amplifier configuration), verifying electrical requirements when troubleshooting or replacing the head unit or amplifier, and confirming tuner band coverage by market. No year, model, or part numbers appear on the page itself.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the rated output of the Genesis audio head unit with internal amplifier?
- The RADIO/CD/MP3/XM unit with internal amplifier is rated at a maximum output of 43 W x 4.
- What output does the external-amplifier radio provide?
- The RADIO/CDC/MP3/XM unit with external amplifier is rated at a maximum of 3.2 Vrms.
- What power supply voltage does the audio system use?
- Both radio variants use a DC 14.4 V power supply.
- What are the FM and AM frequency ranges and channel spacing?
- FM: 87.5 ~ 107.9 MHz with 200 KHz spacing. AM: NAS and CAN markets 530 ~ 1710 KHz/9 KHz; GUAM 531 ~ 1701 KHz/9 KHz.
- What antenna specification is listed for the audio system?
- The antenna is specified as 80 PF 75 Ω, and the tuning type is PLL synthesized tuning.
