Ford 5.0L E4OD/4R70W Fuel Injector Wiring Diagram - PCM Pins & Wire Colors

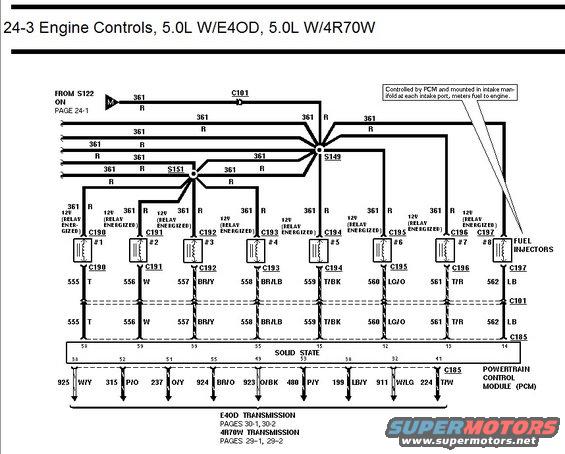

Ford 24-3 Engine Controls 5.0L W/E4OD wiring diagram with fuel injectors and PCM circuits
Ford 24-3 Engine Controls 5.0L W/E4OD wiring diagram with fuel injectors and PCM circuitsOriginal file
Ford 24-3 Engine Controls 5.0L W/E4OD wiring diagram with fuel injectors and PCM circuits

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford Bronco 5.0L Engine Controls Wiring Diagram - PCM, MAP & O2 Sensor (24-6) Ford 5.0L Engine Controls Wiring Diagram 24-5 - ECT, IAT, TPS, EVP, Knock Sensor Ford 5.0L Engine Controls Wiring Diagram 24-4 (W/O E4OD/4R70W) - PCM & Injectors Ford 5.0L E4OD/4R70W Fuel Injector Wiring Diagram - PCM Pins & Wire Colors 1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - EGR, IAC, Purge, PCM Ford 5.0L Engine Controls Wiring Diagram 24-1 - PCM & Fuel Pump Relay (Bronco) Ford Bronco & F-Series 4.9L Fuel Pump Wiring Diagram - Inertia Switch, Sender 1996 Ford 4.9L Engine Controls Wiring Diagram 23-6: MIL & CPP Switch Circuits 1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4 1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2 1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit 411wiring diagrams1992-1996 Ford Bronco More reference 1996 Ford Bronco/F-150 Distributor Exploded Parts Diagram & Installation 03-07A-6Exploded parts Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EAService procedure 1994 Ford Bronco Door Data Spec Plate - VIN, GVWR, Axle & Paint CodesSpec plate 1996 Ford Bronco Owner's Manual - Checking & Adding Engine CoolantManual page 1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)Schematic Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & CalloutsBrochure Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing DiagramVacuum routing Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift ControlFuse chart Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

Engine controls wiring diagram for 5.0L with E4OD/4R70W showing eight fuel injector circuits to the powertrain control module.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption · Photo 338 of 378

This is page 24-3 of a Ford wiring diagram set covering Engine Controls for the 5.0L engine with either the E4OD or 4R70W automatic transmission. The diagram shows the fuel injector circuit: switched 12V power (circuit 361, red wire, hot with the relay energized) comes from splice S122 (page 24-1), passes through connector C101, and is distributed via splices S149 and S151 to all eight fuel injectors (#1 through #8, at connectors C190-C197). A note states the injectors are controlled by the PCM, mounted in the intake manifold at each intake port, and meter fuel to the engine. Each injector's low-side control wire (circuits 555-562 with colors T, W, BR/Y, BR/LB, T/BK, LG/O, T/R, LB) passes through C101 to specific pins (58, 59, 39, 35, 15, 12, 13, 14) on the Powertrain Control Module at connector C185. The bottom of the diagram lists nine additional PCM output circuits (pins 38, 52, 51, 55, 49, 53, 30, 32, 41; circuits 925 W/Y, 315 P/O, 237 O/Y, 924 BR/O, 923 O/BK, 480 P/Y, 199 LB/Y, 911 W/LG, 224 T/W) that continue to the E4OD transmission (pages 30-1, 30-2) or 4R70W transmission (pages 29-1, 29-2). Useful for diagnosing injector power, injector driver circuits, and PCM-to-transmission wiring.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire colors and circuits go to each fuel injector on the 5.0L?
All injectors get power on circuit 361 (R, 12V with relay energized). Control wires are: #1 555 T, #2 556 W, #3 557 BR/Y, #4 558 BR/LB, #5 559 T/BK, #6 560 LG/O, #7 561 T/R, #8 562 LB.
Which PCM pins control the fuel injectors?
At connector C185: pin 58 (injector #1), 59 (#2), 39 (#3), 35 (#4), 15 (#5), 12 (#6), 13 (#7), 14 (#8).
Where do the fuel injectors get power?
From circuit 361 (red wire), which comes from splice S122 (page 24-1), passes through connector C101, and is distributed through splices S149 and S151. It is 12V with the relay energized.
Where are the fuel injectors located according to this diagram?
A note states they are controlled by the PCM and mounted in the intake manifold at each intake port, where they meter fuel to the engine.
Which PCM circuits go to the E4OD or 4R70W transmission?
PCM pins 38 (925 W/Y), 52 (315 P/O), 51 (237 O/Y), 55 (924 BR/O), 49 (923 O/BK), 53 (480 P/Y), 30 (199 LB/Y), 32 (911 W/LG), and 41 (224 T/W), continuing to E4OD pages 30-1/30-2 or 4R70W pages 29-1/29-2.
