What PCM pin does the idle air control valve connect to on the 5.0L without E4OD?

The idle air control valve (connector C1007) connects to PCM pin 21 via circuit 264, a white/light blue (W/LB) wire.

What wire color and circuit powers the fuel injectors in this diagram?

Circuit 361, a red (R) wire, provides 12V relay-energized power to all fuel injectors, distributed through splices S149 and S151.

Which circuits carry the injector control signals back to the PCM?

Circuit 556 (white wire) goes to PCM pin 59 and circuit 555 (tan wire) goes to PCM pin 58, converging through splices S159 and S160.

What is the EGR control solenoid circuit on this diagram?

The EGR control solenoid (connector C180) is powered by 12V circuit 361 R and its control side is circuit 360, a brown/pink (BR/PK) wire, going to PCM pin 33.

What connectors do the secondary air injection solenoids use?

The secondary air injection diverter (AIRD) solenoid uses connector C1023 (circuit 200 BR to PCM pin 11) and the secondary air injection bypass (AIRB) solenoid uses connector C1022 (circuit 190 W/O to PCM pin 51).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1137632

Ford 5.0L Engine Controls Wiring Diagram 24-4 (W/O E4OD/4R70W) - PCM & Injectors

Ford 24-4 Engine Controls 5.0L without E4OD wiring diagram with solenoids and fuel injectors

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford 5.0L Engine Controls Wiring Diagram 24-7 - PCM, MIL & CPP Switch Circuits

Ford Bronco 5.0L Engine Controls Wiring Diagram - PCM, MAP & O2 Sensor (24-6)

Ford 5.0L Engine Controls Wiring Diagram 24-5 - ECT, IAT, TPS, EVP, Knock Sensor

Ford 5.0L Engine Controls Wiring Diagram 24-4 (W/O E4OD/4R70W) - PCM & Injectors

Ford 5.0L E4OD/4R70W Fuel Injector Wiring Diagram - PCM Pins & Wire Colors

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - EGR, IAC, Purge, PCM

Ford 5.0L Engine Controls Wiring Diagram 24-1 - PCM & Fuel Pump Relay (Bronco)

Ford Bronco & F-Series 4.9L Fuel Pump Wiring Diagram - Inertia Switch, Sender

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Service procedure

Spec plate

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & Callouts

Brochure

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Engine controls wiring diagram for 5.0L without E4OD showing EGR, air injection, canister purge solenoids and fuel injector circuits.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption August 2018 · Photo 339 of 378

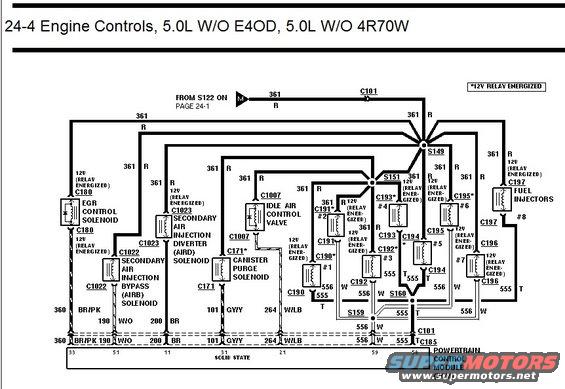

This is page 24-4 of a Ford factory-style wiring diagram covering Engine Controls for the 5.0L engine without E4OD or 4R70W automatic transmissions (i.e., manual transmission applications). The diagram shows the 12V relay-energized power feed (circuit 361, red wire) arriving from splice S122 on page 24-1, passing through connector C101 to splice S149, where it branches to power the EGR control solenoid (C180), secondary air injection diverter (AIRD) solenoid (C1023), secondary air injection bypass (AIRB) solenoid (C1022), canister purge solenoid (C171), idle air control valve (C1007), and all eight fuel injectors (connectors C190-C197) via splice S151. Ground/control-side circuits return to the Powertrain Control Module (PCM): 360 BR/PK to pin 33 (EGR), 190 W/O to pin 51 (AIRB), 200 BR to pin 11 (AIRD), 101 GY/Y to pin 31 (canister purge), 264 W/LB to pin 21 (IAC), and injector driver circuits 556 W to pin 59 and 555 T to pin 58, converging through splices S159/S160 and connector C185. A reader can identify wire colors, circuit numbers, connector IDs, splice points, and PCM pin assignments for the engine control solenoids and injectors.
