What fuse powers the Malfunction Indicator Lamp (MIL) circuit on the 4.9L?

Fuse position 17, a 10A fuse in the fuse panel, hot in START or RUN (fuse panel details on pages 13-3 and 13-9).

What wire colors are used in the 4.9L MIL circuit to the PCM?

Circuit 640 R/Y (red/yellow) from the fuse panel to the instrument cluster MIL, and circuit 658 PK/LG (pink/light green) from the cluster through C251, C202, and C198 to PCM pin 17.

When does the Malfunction Indicator Lamp illuminate?

It lights with the ignition switch in the ON position prior to cranking and goes off when the engine starts. If a fault develops in the Engine Control System, the PCM will turn on the indicator.

What does the Clutch Pedal Position (CPP) switch do on manual transmission trucks?

It prevents vehicle start-up with the clutch engaged. On E4OD and C6 automatic transmissions, a CPP switch jumper is used at connector C261 instead.

What circuit carries the CPP switch signal to the PCM?

Circuit 481 GY/Y (12V, switch closed) runs through C202 and C185 to PCM pin 30 (without E4OD). The feed side is circuit 480 P/Y from the ignition switch via circuit 32 R/LB and splice S224.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1137648

Ford 4.9L Engine Controls Wiring Diagram 23-6 - MIL & Clutch Pedal Position Switch

Engine Controls wiring diagram, 4.9L, page 23-6, ignition switch, MIL and clutch pedal switches

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - EGR, IAC, Purge (24-2)

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 24-1

Ford 4.9L Fuel Pump & Sender Wiring Diagram - F-Series & Bronco (Page 23-7)

Ford 4.9L Engine Controls Wiring Diagram 23-6 - MIL & Clutch Pedal Position Switch

Ford 4.9L Engine Controls Wiring Diagram 23-5 - PCM, ECT, IAT & Knock Sensor

Ford 4.9L Engine Controls Wiring Diagram - MAP, EVP, TPS & PCM (Page 23-4)

Ford 4.9L Engine Controls Wiring Diagram 23-3: Fuel Injectors, HO2S, Purge

Ford 4.9L Engine Controls Wiring Diagram 23-2 - EGR, AIRB/AIRD, IAC, PCM Pins

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Service procedure

Spec plate

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & Callouts

Brochure

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

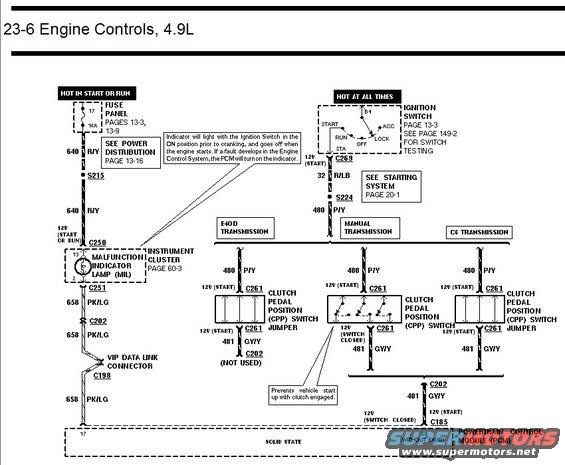

Ford 4.9L engine controls wiring diagram of ignition switch, malfunction indicator lamp and clutch pedal position switch circuits.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption August 2018 · Photo 355 of 378

This document is page 23-6 of a Ford engine controls wiring diagram covering the 4.9L engine. It shows two circuits feeding the Powertrain Control Module (PCM). The first is the Malfunction Indicator Lamp (MIL) circuit: a 10A fuse (position 17, hot in start or run) in the fuse panel feeds circuit 640 (R/Y) through splice S215 and connector C250 to the MIL in the instrument cluster; circuit 658 (PK/LG) then runs through C251, C202, past the VIP Data Link Connector, and C198 to PCM pin 17. A note explains the MIL lights with the ignition ON prior to cranking, goes off when the engine starts, and is turned on by the PCM if a fault develops. The second circuit is the start/Clutch Pedal Position (CPP) switch input: the ignition switch (hot at all times) feeds circuit 32 (R/LB) through C269 and S224 to circuit 480 (P/Y), which branches for E4OD, manual, and C6 transmissions. E4OD and C6 use a CPP switch jumper; manual transmissions use an actual CPP switch (via C261) that prevents starting with the clutch engaged. Circuit 481 (GY/Y) carries the signal through C202 to PCM pin 30 via C185 (without E4OD). Cross-references cite power distribution, starting system, instrument cluster, and ignition switch pages.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers the Malfunction Indicator Lamp (MIL) circuit on the 4.9L?: Fuse position 17, a 10A fuse in the fuse panel, hot in START or RUN (fuse panel details on pages 13-3 and 13-9).
What wire colors are used in the 4.9L MIL circuit to the PCM?: Circuit 640 R/Y (red/yellow) from the fuse panel to the instrument cluster MIL, and circuit 658 PK/LG (pink/light green) from the cluster through C251, C202, and C198 to PCM pin 17.
When does the Malfunction Indicator Lamp illuminate?: It lights with the ignition switch in the ON position prior to cranking and goes off when the engine starts. If a fault develops in the Engine Control System, the PCM will turn on the indicator.
What does the Clutch Pedal Position (CPP) switch do on manual transmission trucks?: It prevents vehicle start-up with the clutch engaged. On E4OD and C6 automatic transmissions, a CPP switch jumper is used at connector C261 instead.
What circuit carries the CPP switch signal to the PCM?: Circuit 481 GY/Y (12V, switch closed) runs through C202 and C185 to PCM pin 30 (without E4OD). The feed side is circuit 480 P/Y from the ignition switch via circuit 32 R/LB and splice S224.
