What fuses power the PCM and fuel pump relays on the 5.0L engine controls circuit?

Fuse U (20A, hot in start or run) feeds the PCM power diode, while fuses I and O (both 20A, hot at all times) in the engine compartment fuse box feed the PCM power relay and fuel pump relay via circuit 37 (Yellow).

What wire color and circuit number is the PCM power relay output?

The PCM power relay output is circuit 361, Red wire, showing 12V when the relay is energized. It splices at S136 and feeds the MAF sensor, the transmission (E4OD or 4R70W), and connector C101.

What circuit runs from the fuel pump relay to the inertia fuel shutoff switch?

Circuit 238, Dark Green/Yellow (DG/Y), 12V with the relay energized, routes through splice S139 and connector C202 to the inertia fuel shutoff on page 24-8.

What are the PCM ground circuits on this diagram?

Circuit 57 BK grounds at G100 and G104 (see grounds pages 10-1 and 10-3), and circuit 570 BK/W from PCM pin 40 grounds at G101 via splice S106.

What wires connect to the mass air flow (MAF) sensor?

The MAF sensor at connector C130 receives 361 R (12V relay energized) power, with signal/return circuits 967 LB/R and 968 T/LB going to the PCM.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1137650

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 24-1

Engine Controls wiring diagram, 5.0L, page 24-1, PCM power relay, MAF and fuel pump relay circuits

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford 5.0L Engine Controls Wiring Diagram 24-4 - Injectors, EGR, IAC, PCM Pins

Ford 5.0L Fuel Injector Wiring Diagram - PCM Pinout, E4OD/4R70W (Page 24-3)

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - EGR, IAC, Purge (24-2)

1996 Ford Bronco 5.0L Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 24-1

Ford 4.9L Fuel Pump & Sender Wiring Diagram - F-Series & Bronco (Page 23-7)

Ford 4.9L Engine Controls Wiring Diagram 23-6 - MIL & Clutch Pedal Position Switch

Ford 4.9L Engine Controls Wiring Diagram 23-5 - PCM, ECT, IAT & Knock Sensor

Ford 4.9L Engine Controls Wiring Diagram - MAP, EVP, TPS & PCM (Page 23-4)

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Service procedure

Spec plate

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & Callouts

Brochure

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Ford 5.0L engine controls wiring diagram of PCM power relay, mass air flow sensor and fuel pump relay circuits with color-coded wires.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption August 2018 · Photo 357 of 378

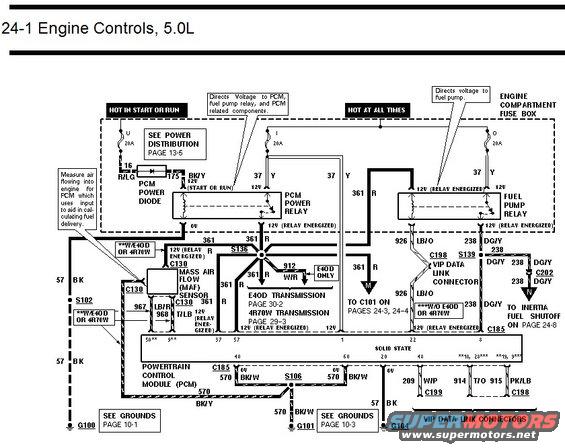

This document is page 24-1 of a Ford factory-style wiring diagram covering the Engine Controls circuit for the 5.0L engine. It shows power distribution from the engine compartment fuse box, fuse U (20A, hot in start or run) feeding the PCM power diode via circuit 16 R/LG and 175 BK/Y, and fuses I and O (20A each, hot at all times) feeding the PCM power relay and fuel pump relay via circuit 37 Y. The PCM power relay output (circuit 361 R, 12V relay energized) splices at S136 and feeds the mass air flow (MAF) sensor, the E4OD (page 30-2) or 4R70W (page 29-3) transmission, and connector C101 (pages 24-3, 24-4). The fuel pump relay output (238 DG/Y) routes through splice S139 and connector C202 to the inertia fuel shutoff switch (page 24-8). PCM pin numbers, ground circuits (57 BK to G100/G104, 570 BK/W to G101 via splice S106), and VIP data link connector circuits (926 LB/O, 209 W/P, 914 T/O, 915 PK/LB at C198/C199) are shown, along with footnotes distinguishing E4OD/4R70W applications and cross-references to grounds pages 10-1 and 10-3.
