What does the inertia fuel shutoff switch do on the 5.8L Bronco/F-Series?

It is a safety device that shuts off power to the electric fuel pump if a collision occurs (it opens on impact). The switch must be reset manually. It sits at connector C271 on circuit 238 DG/Y.

What are the fuel gauge sender resistance values for the Bronco?

22.5 ohms when the tank is empty and 145 ohms when full. The sender is a variable resistor connected to a float in the fuel tank.

What wire feeds the Bronco fuel pump?

Circuit 787 PK/BK (pink/black) runs from the inertia fuel shutoff at C271 through C205 to the Fuel Pump/Fuel Gauge Sender at C441. Ground is 57 BK through splice S400 to G100.

How does the F-Series dual-tank fuel pump wiring differ from the Bronco?

The F-Series uses a Fuel Tank Selector Switch (connector C268, circuit 670 R/Y in) that directs 12V to either the front tank pump on circuit 786 R (connector C440) or the rear tank pump on circuit 789 BR/W (connector C441). The Bronco has a single fuel pump/sender at C441.

Where do the fuel pump circuits ground?

Both pump grounds run on circuit 89 O to splice S400, then on 57 BK to ground G100. See grounds page 10-2 (F-Series) or page 10-5 (Bronco).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1137663

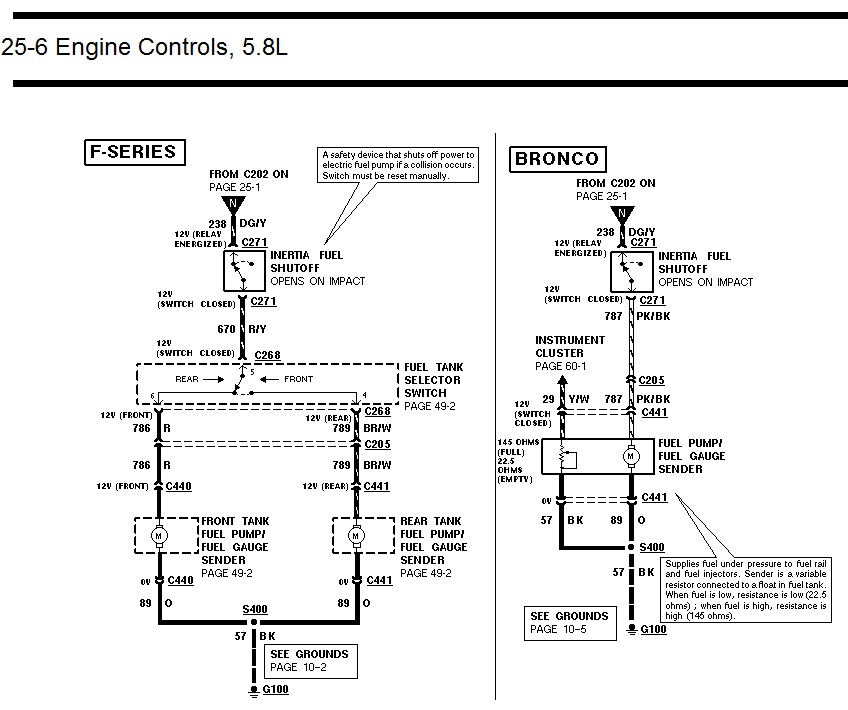

Ford Bronco & F-Series 5.8L Fuel Pump Wiring Diagram - Inertia Switch, Sender

Engine Controls wiring diagram, 5.8L, page 25-6, inertia fuel shutoff and fuel pump circuits for F-Series and Bronco

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford 5.8L California Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 25-7

1996 Ford Bronco Vehicle Speed Sensor (VSS) Wiring Diagram - PSOM, 4WABS, PCM

Ford F-Series Vehicle Speed Sensor (VSS) Wiring Diagram - PSOM, RABS, PCM

Ford Bronco & F-Series 5.8L Fuel Pump Wiring Diagram - Inertia Switch, Sender

Ford 5.8L Engine Controls Wiring Diagram 25-5 - MIL, CPP Switch, PCM Circuits

Ford 5.8L Engine Controls Wiring Diagram 25-4 - MAP Sensor, HO2S, PCM (Bronco)

Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, TPS, ECT, IAT, EGR Sensors

1996 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, Injectors, IAC

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader Procedure

Service procedure

Spec plate

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Blueprint

1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & Accessories

Brochure

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Ford 5.8L engine controls wiring diagram of inertia fuel shutoff, fuel selector and fuel pump/gauge sender circuits for F-Series and Bronco.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption August 2018 · Photo 370 of 378

This document is page 25-6 of a Ford factory-style wiring diagram set covering Engine Controls for the 5.8L engine. It shows the fuel pump and fuel gauge sender circuits for both F-Series trucks and the Bronco. Both circuits begin at connector C202 (from page 25-1) on circuit 238 DG/Y, passing through the Inertia Fuel Shutoff switch (a safety device that cuts power to the electric fuel pump on impact and must be reset manually) at connector C271. The F-Series version continues on circuit 670 R/Y to a Fuel Tank Selector Switch (C268, page 49-2), which routes 12V to either the front tank pump (786 R via C440) or the rear tank pump (789 BR/W via C205 and C441); both pumps ground through circuit 89 O to splice S400 and 57 BK to ground G100 (grounds page 10-2). The Bronco version uses circuit 787 PK/BK to a single combined Fuel Pump/Fuel Gauge Sender at C441, with the gauge feed 29 Y/W from the instrument cluster (page 60-1); the sender reads 22.5 ohms empty and 145 ohms full, grounding through 57 BK and 89 O to S400 and G100 (grounds page 10-5). Readers can learn wire colors, circuit numbers, connector IDs, and sender resistance specs.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does the inertia fuel shutoff switch do on the 5.8L Bronco/F-Series?: It is a safety device that shuts off power to the electric fuel pump if a collision occurs (it opens on impact). The switch must be reset manually. It sits at connector C271 on circuit 238 DG/Y.
What are the fuel gauge sender resistance values for the Bronco?: 22.5 ohms when the tank is empty and 145 ohms when full. The sender is a variable resistor connected to a float in the fuel tank.
What wire feeds the Bronco fuel pump?: Circuit 787 PK/BK (pink/black) runs from the inertia fuel shutoff at C271 through C205 to the Fuel Pump/Fuel Gauge Sender at C441. Ground is 57 BK through splice S400 to G100.
How does the F-Series dual-tank fuel pump wiring differ from the Bronco?: The F-Series uses a Fuel Tank Selector Switch (connector C268, circuit 670 R/Y in) that directs 12V to either the front tank pump on circuit 786 R (connector C440) or the rear tank pump on circuit 789 BR/W (connector C441). The Bronco has a single fuel pump/sender at C441.
Where do the fuel pump circuits ground?: Both pump grounds run on circuit 89 O to splice S400, then on 57 BK to ground G100. See grounds page 10-2 (F-Series) or page 10-5 (Bronco).
