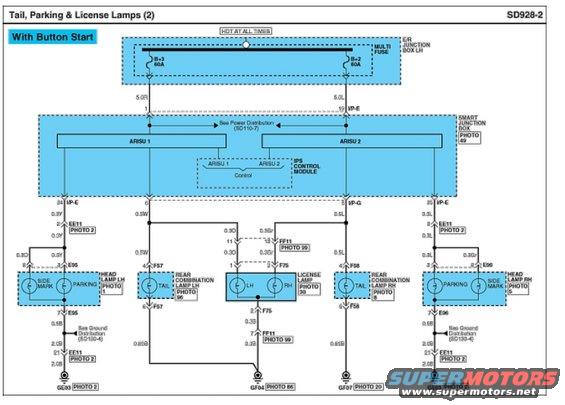

Hyundai Genesis Coupe BK2 Tail, Parking & License Lamp Wiring Diagram SD928-2
Wiring diagram for tail, parking and license lamps showing head/rear combination lamps, junction boxes and grounds.
This document is page SD928-2 of a Hyundai wiring diagram covering the Tail, Parking & License Lamps circuit (part 2) for vehicles equipped with Button Start. Power originates from the I/P Junction Box LH via a multi-fuse with two 60A elements (B+3 and B+2), fed hot at all times through 5.0R and 5.0L wires into the Smart Junction Box (see Power Distribution SD110-7). Within the Smart Junction Box, ARISU 1 and ARISU 2 outputs, managed by the IPS Control Module, drive the lamp circuits. Outputs feed the left and right headlamp assemblies (side marker and parking lamp elements via connectors E95 and E96 through intermediate connector EE11), the left and right rear combination lamp tail bulbs (via connectors F57 and F58 on 0.5W and 0.5L wires), and the LH/RH license lamps (via connector FF11 and F75 on 0.3O and 0.3Gr wires). Grounds return through GE03, GF04, and GF07, with references to Ground Distribution SD130-4. Wire gauges and colors (e.g., 0.3Y, 0.3L, 0.85B, 2.0B) and connector pin numbers are labeled throughout, and photo callouts (PHOTO 1–99) reference connector location images.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What fuses power the tail, parking and license lamp circuit in this diagram?
- The circuit is fed hot at all times through the Multi Fuse in the I/P Junction Box LH, using the B+3 60A and B+2 60A fuse elements.
- What module controls the tail and parking lamps in this diagram?
- The Smart Junction Box, using ARISU 1 and ARISU 2 outputs controlled by the IPS Control Module. Power distribution details are on SD110-7.
- What connectors serve the rear combination lamp tail bulbs?
- The rear combination lamp LH uses connector F57 (pin 4 input on a 0.5W wire, pin 5 ground on 0.85B to GF04), and the RH uses connector F58 (pin 4 input on 0.5L, pin 5 ground on 0.85B to GF07).
- How are the license plate lamps wired?
- The license lamps (LH and RH) connect through connector F75 pins 1 and 3, fed via intermediate connector FF11 on 0.3O and 0.3Gr wires, with ground on pin 2 (0.3B) returning through FF11 pin 7 to ground GF04.
- Does this diagram apply to push-button start cars?
- Yes, it is specifically labeled 'With Button Start'.
