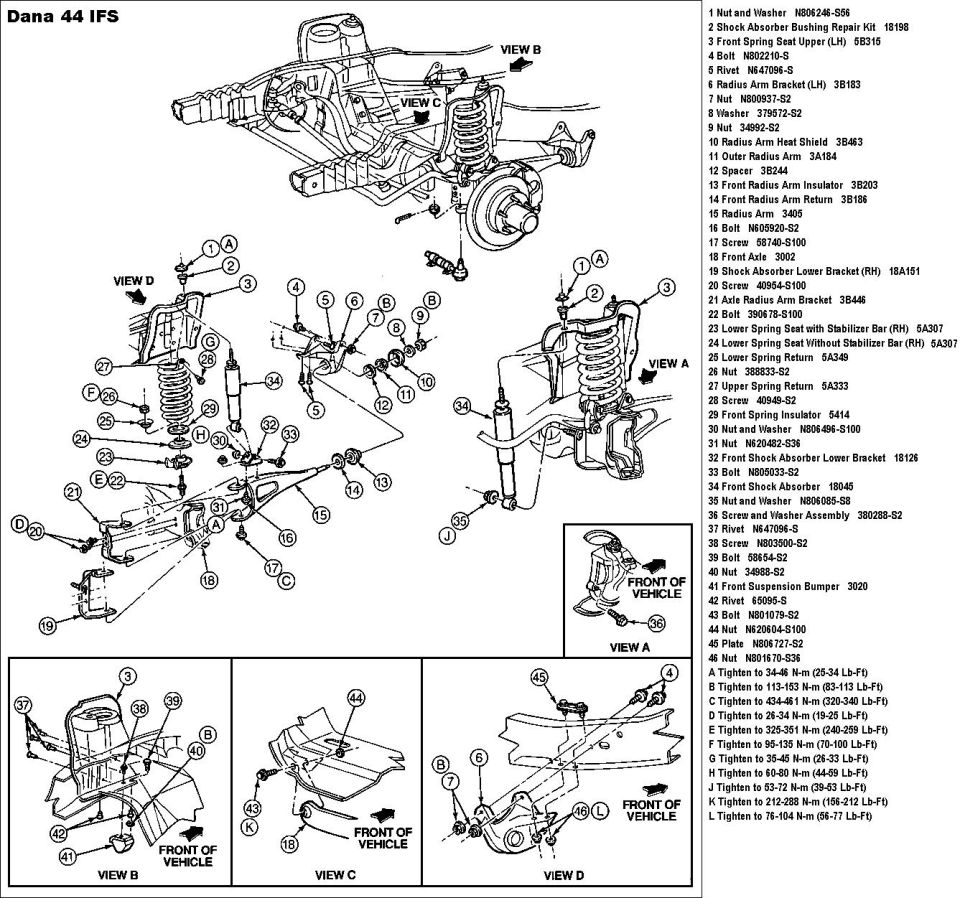

d44ifsusp.jpg Dana 44 IFSuspension (TTB), basically the same as the 2WD TIB.
IF THE IMAGE IS TOO SMALL, click it.
#1 & 28 are 1/2"
#9, 17, 22, & 26 are 1 1/8"
#30, 33, & 35 are 18mm hex driven; shock absorber lower bolt similar to N605704S439 or N605704S2 which lack the pointed tip
[url=https://www.fordpartsgiant.com/parts/ford-bolt_-n801079-s2.html]#43[/url] has a 15mm head; #44 is 18mm; the frame bracket is F4TZ3B178A

#2 Upper Shock Bushing (Energy (9.8101G)
#3 LHF [url=https://www.amazon.com/dp/B01FL4C2ZU]E2TZ5A306G[/url] (Dorman [url=https://www.amazon.com/dp/B078SWNK2T]523253[/url]); RHF E0TZ5A306G (Dorman [url=https://www.amazon.com/dp/B078SVZ2NY]523252[/url])

#6 Radius Arm Bracket (LH) E1TZ-3B095-B, (RH) -A
[url=http://www.supermotors.net/registry/media/789835][img]http://www.supermotors.net/getfile/789835/thumbnail/49bracket.jpg[/img][/url]

#11 & 13 Radius Arm Bushings (Energy 4.7110G)

#15 Radius Arm (LH) E8TZ-3A292-A
[url=http://www.supermotors.net/registry/media/781342][img]http://www.supermotors.net/getfile/781342/thumbnail/29radiusarm.jpg[/img][/url]

#18 Axle Beam (pivot bushing kit Energy 4.3133G)
#19 Front Bracket w/Quad Shock: Left E8TZ18113A, Right E8TZ18112A
#24 Lower Coil Isolator N803075S/AX18W/E8UZ5414A (Energy 9.8104G)
#27 Upper Spring Retainer EOTZ5B300B/7C2Z5B300A
#30 & 35 Lower Shock Nut (bushing Energy 9.8141G)

#43 Axle Pivot
[url=https://www.supermotors.net/registry/media/1157939][img]https://www.supermotors.net/getfile/1157939/thumbnail/20200306_164103.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1157941][img]https://www.supermotors.net/getfile/1157941/thumbnail/20200307_143234.jpg[/img][/url]

#34 Front Shock Absorber
Quad front-front Ford F4TA18045PA (Gabriel 63410)
Standard front Ford F4TA18045VA (Gabriel 63414)

See also:
[url=http://www.supermotors.net/registry/media/277373][img]http://www.supermotors.net/getfile/277373/thumbnail/axle-gone.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/544471][img]http://www.supermotors.net/getfile/544471/thumbnail/d44ifs96tag.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/260055][img]http://www.supermotors.net/getfile/260055/thumbnail/rivetreplacement.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/470224][img]http://www.supermotors.net/getfile/470224/thumbnail/radiusarmbrktrplc.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/72348][img]http://www.supermotors.net/getfile/72348/thumbnail/d44ifs-hd.jpg[/img][/url] . [url=http://www.supermotors.net/registry/2742/71518-4][img]http://www.supermotors.net/getfile/764862/thumbnail/03lowerbjnut.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/843080][img]http://www.supermotors.net/getfile/843080/thumbnail/cambercammoog.jpg[/img][/url]
d44ifsusp.jpg | Hits: 30032 | Posted on: 10/18/05 | View original size (358.95 KB)

Dana 44 IFSuspension (TTB), basically the same as the 2WD TIB.
IF THE IMAGE IS TOO SMALL, click it.
#1 & 28 are 1/2"
#9, 17, 22, & 26 are 1 1/8"
#30, 33, & 35 are 18mm hex driven; shock absorber lower bolt similar to N605704S439 or N605704S2 which lack the pointed tip
#43 has a 15mm head; #44 is 18mm; the frame bracket is F4TZ3B178A

#2 Upper Shock Bushing (Energy (9.8101G)
#3 LHF E2TZ5A306G (Dorman 523253); RHF E0TZ5A306G (Dorman 523252)

#6 Radius Arm Bracket (LH) E1TZ-3B095-B, (RH) -A


#11 & 13 Radius Arm Bushings (Energy 4.7110G)

#15 Radius Arm (LH) E8TZ-3A292-A


#18 Axle Beam (pivot bushing kit Energy 4.3133G)
#19 Front Bracket w/Quad Shock: Left E8TZ18113A, Right E8TZ18112A
#24 Lower Coil Isolator N803075S/AX18W/E8UZ5414A (Energy 9.8104G)
#27 Upper Spring Retainer EOTZ5B300B/7C2Z5B300A
#30 & 35 Lower Shock Nut (bushing Energy 9.8141G)

#43 Axle Pivot
.

#34 Front Shock Absorber
Quad front-front Ford F4TA18045PA (Gabriel 63410)
Standard front Ford F4TA18045VA (Gabriel 63414)
