Battle Born Brakes Super Duty Hydroboost Kit 1967-79 Ford Truck - Parts List
.jpg)
Reference · 1978-1979 BroncoAll 48 service procedures
Install instruction title page for a Battle Born Super Duty hydroboost kit for 1967-79 Ford trucks, listing included parts.
Part of 1978-1979 Ford Bronco Service Procedures

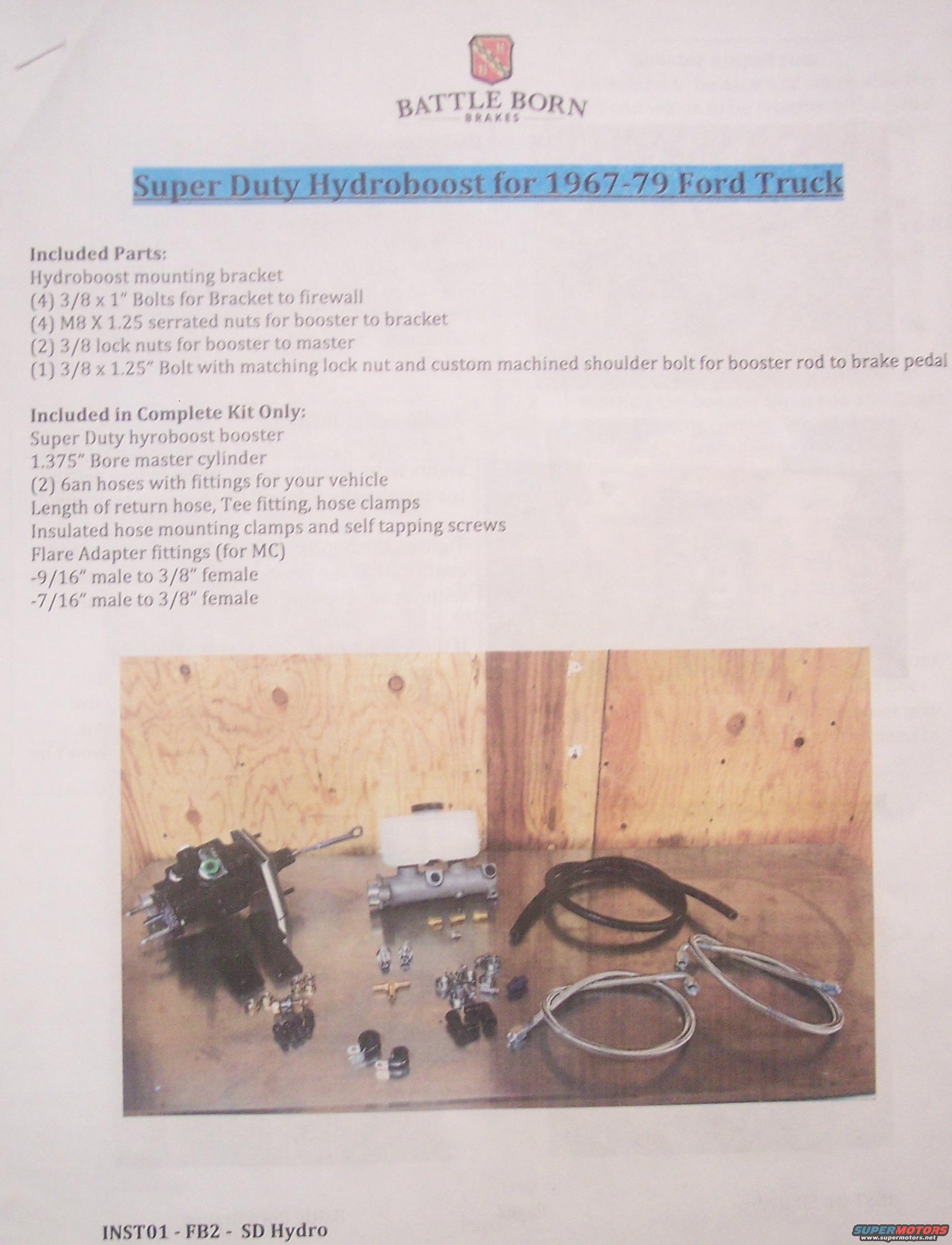

This is page 1 of installation instructions from Battle Born Brakes for their Super Duty Hydroboost brake conversion kit for 1967-79 Ford trucks. The page lists the parts included in the base kit: a Hydroboost mounting bracket, four 3/8 x 1" bolts for attaching the bracket to the firewall, four M8 x 1.25 serrated nuts for booster-to-bracket mounting, two 3/8 lock nuts for booster-to-master cylinder mounting, and a 3/8 x 1.25" bolt with matching lock nut plus a custom machined shoulder bolt for connecting the booster rod to the brake pedal. It also details what comes only with the Complete Kit: the Super Duty hydroboost booster itself, a 1.375" bore master cylinder, two 6an hoses with vehicle-specific fittings, a length of return hose with Tee fitting and hose clamps, insulated hose mounting clamps with self-tapping screws, and flare adapter fittings for the master cylinder (9/16" male to 3/8" female and 7/16" male to 3/8" female). A photo shows the complete kit contents laid out. The footer reads INST01 - FB2 - SD Hydro, identifying the instruction sheet.
