Wheel Alignment Basics Diagram - Camber, Caster & Toe-In Explained (Ford Bronco)

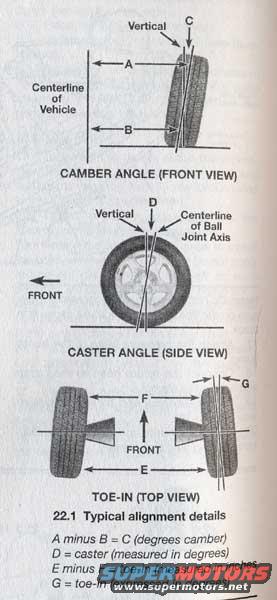

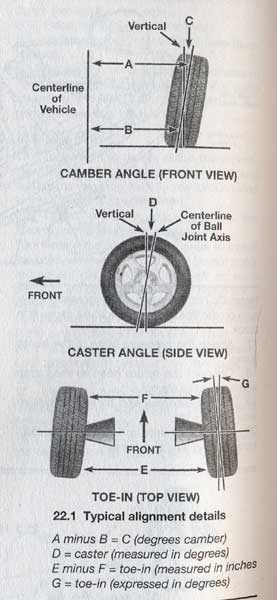

This is a scanned manual page (figure 22.1, 'Typical alignment details') illustrating the three fundamental front-end wheel alignment angles using labeled diagrams. The first diagram, 'Camber Angle (Front View)', shows a wheel viewed from the front with vertical reference line C, measurements A and B taken from the vehicle centerline, and explains that A minus B equals C, the camber in degrees. The second diagram, 'Caster Angle (Side View)', shows a wheel from the side with the vertical line and the centerline of the ball joint axis, labeled D, with caster measured in degrees; an arrow indicates the front of the vehicle. The third diagram, 'Toe-In (Top View)', shows both front wheels from above with measurements E (rear of tires), F (front of tires), and angle G; toe-in equals E minus F measured in inches, or G expressed in degrees. The legend at the bottom summarizes all four relationships. A reader can learn how camber, caster, and toe-in are defined and geometrically measured on a vehicle's front suspension. The page contains no specific alignment specification values, torque figures, or part numbers, and does not state a particular vehicle year or model.
