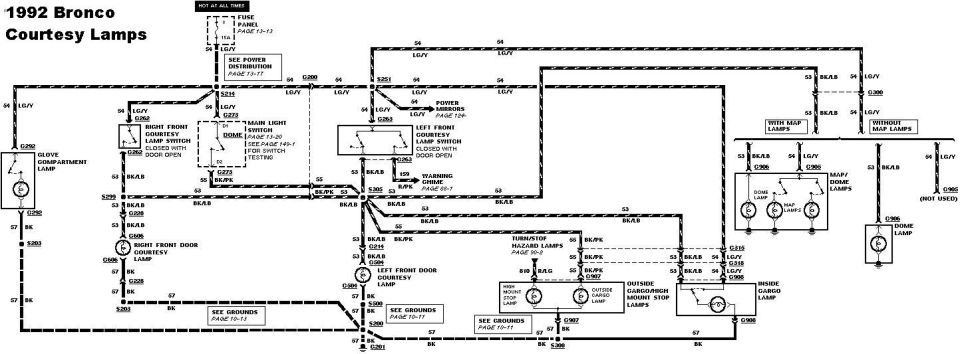

Wiring diagram labeled '1992 Bronco Courtesy Lamps' showing dome…

Courtesy Lamps 92 Bronco
IF THE IMAGE IS TOO SMALL, click it.

Note that '92-93 Broncos' & F-series' left front courtesy switch is a rare plastic design (Standard DS838) located at the bottom of the B-pillar (instead of the metal design in the lower A-pillar for all other years '80-96/7). From '94-96/7, the driver's switch (Motorcraft SW6345) returned to the lower A-pillar, like the RIGHT switch always was.

. . . . . . . . . .
