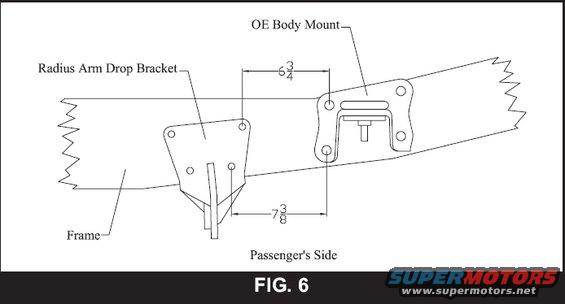

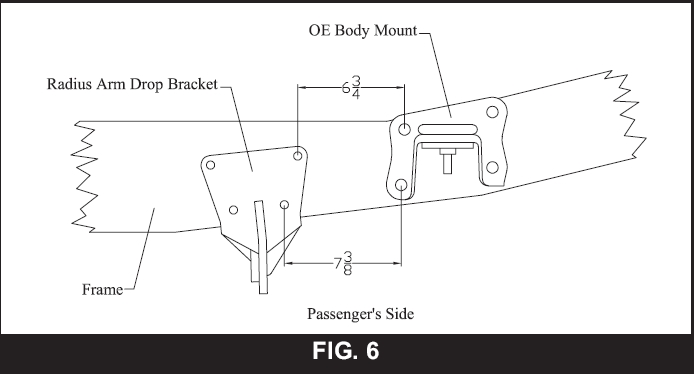

Radius Arm Drop Bracket Placement Diagram (Fig. 6) - Passenger Side Frame

This document is a line-drawing installation schematic labeled "FIG. 6" showing the passenger's side frame rail of a vehicle. It illustrates the mounting position of a Radius Arm Drop Bracket relative to the OE (original equipment) Body Mount on the frame. Two dimensional callouts are provided: 6 3/4 (inches implied) measured from the OE body mount to the upper portion of the drop bracket, and 7 3/8 measured from the body mount area to the lower portion of the bracket. The frame rail is drawn with jagged break lines on both ends, indicating only a section of the frame is shown. Labels with leader lines identify the Frame, the Radius Arm Drop Bracket (a triangular plate with multiple bolt holes and a lower drop leg), and the OE Body Mount (a plate with four holes and a bracket/stud assembly). A reader can learn where to locate the radius arm drop bracket along the passenger-side frame rail — likely part of a suspension lift kit instruction sheet — using the OE body mount as the measurement reference point. No part numbers, torque specs, year/model applicability, or manufacturer names are shown in this figure.
