How do I test the wiper switch circuit on a '92-up Ford multi-function switch?

Connect an ohmmeter to terminals 589 (O) and 993 (BR/W). A good switch reads 47.6K ohm in Off, 11.33K ohm in Int, 4.08K ohm in Lo, and closed circuit in Hi.

Which terminals test the washer switch circuit?

Terminals 590 (DB/W) and 993 (BR/W). With the wiper switch OFF, pushing the washer switch in should show a closed circuit; releasing it should show 103.3K ohm.

What resistance should the interval time adjust show?

With the ohmmeter on 590 (DB/W) and 993 (BR/W), rotating the control toward OFF between Int and Off should show smoothly increasing resistance from 3.3K ohm minimum to 103.3K ohm maximum; between Lo and Hi it reads 3.3K ohm.

How do I test the flash-to-pass function?

Connect the tester to 196(DB/O) and 12(LG/BK), then 15(R/Y) and 13(R/BK). Pull and hold the lever stalk toward the steering wheel; a good switch shows a closed circuit.

How do I test the hazard switch?

Connect the tester between 385(W/R) and terminals 2(W/LB), 5(O/LB), 3(LG/W), and 9(LG/O). With the hazard switch ON (button depressed then released to full out position), a good switch shows a closed circuit.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254845

1992-Up Ford Multi-Function Switch (MFS) Testing - Pinout, Wire Colors & Ohm Values

Multifunction switch testing circuit diagrams with wire color codes and test tables

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford EEC Self-Test Connector Diagram - DLC & STI Jumper Wire (1992 Bronco)

1992 Ford Bronco Power Mirror Wiring Diagram - Switch & Motor Wire Colors

1996 Ford Explorer Compass/Outside Air Temp Module Wiring Diagram - C342 Pinout

Ford Bronco Overhead Console Wiring Diagram - C914 Compass/Temp Module Pinout

1993 Ford Bronco/F-Series Dash Connector Locations Diagram (FPS-12129-93)

1992 Ford Bronco Cruise Control Wiring Diagram - Servo, Amplifier & Wire Colors

1992 Ford Bronco Courtesy Lamps Wiring Diagram - Dome, Cargo & Map Lights

1992-Up Ford Multi-Function Switch (MFS) Testing - Pinout, Wire Colors & Ohm Values

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford Bronco PCV Valve & Crankcase Ventilation Tube Exploded Diagram

Exploded parts

Ford RABS Rear Antilock Brake System Troubleshooting Chart (1992 Bronco)

Service procedure

Ford truck certification label with 25 numbered callouts explaining GVWR, tire, VIN and code fields

Spec plate

'91-93 Ford truck drive axle application chart for Bronco, F-150, F-250, F-350 and F-Super Duty

Manual page

1992 Ford Bronco/F-Series 5.0L 5.8L Engine Compartment Connector Locations

Schematic

Ford 5.0L V8 Vacuum Hose Routing Diagram - EGR, AIR, FPRC & Carbon Canister

Vacuum routing

Ford 255/302/351W & 351M/400 V8 Intake Manifold Bolt Tightening Sequence

Torque spec

Blueprint

1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & Accessories

Brochure

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Multifunction switch testing diagram with color-coded circuit drawings and continuity test tables for a 92-up vehicle.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption October 2005 · Photo 126 of 272

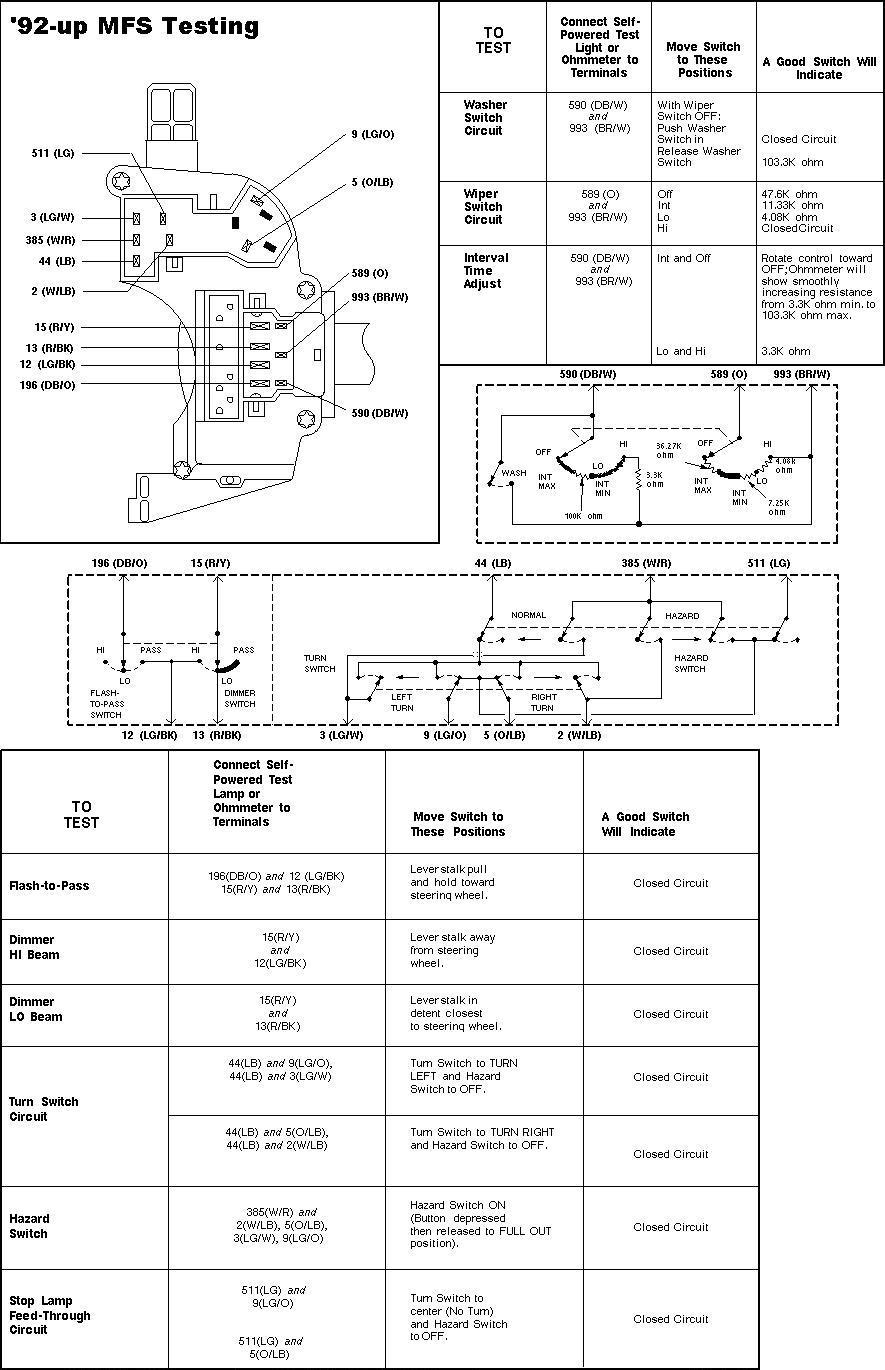

This document is a diagnostic reference titled "'92-up MFS Testing" for testing the multi-function switch (MFS) on 1992 and later Ford vehicles. It includes a connector pinout drawing of the switch identifying all terminals by circuit number and wire color: 511 (LG), 3 (LG/W), 385 (W/R), 44 (LB), 2 (W/LB), 15 (R/Y), 13 (R/BK), 12 (LG/BK), 196 (DB/O), 9 (LG/O), 5 (O/LB), 589 (O), 993 (BR/W), and 590 (DB/W). Two tables list step-by-step tests using a self-powered test light or ohmmeter. The upper table covers the washer switch circuit, wiper switch circuit (Off = 47.6K ohm, Int = 11.33K ohm, Lo = 4.08K ohm, Hi = closed circuit), and interval time adjust (3.3K to 103.3K ohm smooth sweep). The lower table covers flash-to-pass, dimmer high and low beams, left and right turn signal circuits, hazard switch, and stop lamp feed-through circuit, each of which should show a closed circuit when good. Internal schematic diagrams show the switch contact logic and internal resistor values (3.3K, 4.08K, 7.25K, 36.27K, 100K ohms) for the wiper/washer and turn/hazard/dimmer sections.
