What is the pinout of the C342 compass/outside air temperature module connector on a 1996 Ford Explorer?

C342 (black): Pin 1 not used; Pin 2 = 57 (BK) Ground; Pin 3 = 1003 (GY/Y) Power (Hot in Run); Pin 4 = 679 (GY/BK) Vehicle Speed Input; Pin 5 = 705 (LG/O) Battery Saver Input; Pin 6 = 53 (BK/LB) Courtesy Lamp Input; Pin 7 not used; Pin 8 = 19 (LB/R) Instrument Illumination Input; Pin 9 = 233 (DB/Y) Ambient Temperature Sensor Feed; Pin 10 = 234 (DB/W) Ambient Temperature Sensor Return.

Which fuse powers the 96 Explorer compass/outside air temperature module?

Fuse 10, a 7.5A fuse in the interior fuse panel (hot in run), feeding circuit 1003 (GY/Y). See power distribution, page 13-7.

What is the part number of the outside air temperature sensor?

The diagram lists the outside air temperature sensor as F87Z-12A647-AA.

What wire colors connect the outside air temperature sensor?

Circuit 234 (DB/W, sensor return) and circuit 233 (DB/Y, sensor feed), running through connectors C267F/C267M, C212M/C212F, C146F/C146M, and C194 to the sensor.

How is the module grounded?

Through circuit 57 (BK) on pin 2, via splice S202 to ground G204 (see grounds, page 10-8).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254848

1996 Ford Explorer Compass/Outside Air Temp Module Wiring Diagram - C342 Pinout

96 Explorer compass/outside air temperature module wiring diagram with pinout

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1992 Ford Bronco Rear Window Defrost Wiring Diagram - Tailgate Defroster Circuit

Ford EEC Self-Test Connector Diagram - DLC & STI Jumper Wire (1992 Bronco)

1992 Ford Bronco Power Mirror Wiring Diagram - Switch & Motor Wire Colors

1996 Ford Explorer Compass/Outside Air Temp Module Wiring Diagram - C342 Pinout

Ford Bronco Overhead Console Wiring Diagram - C914 Compass/Temp Module Pinout

1993 Ford Bronco/F-Series Dash Connector Locations Diagram (FPS-12129-93)

1992 Ford Bronco Cruise Control Wiring Diagram - Servo, Amplifier & Wire Colors

1992 Ford Bronco Courtesy Lamps Wiring Diagram - Dome, Cargo & Map Lights

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford Bronco PCV Valve & Crankcase Ventilation Tube Exploded Diagram

Exploded parts

Ford RABS Rear Antilock Brake System Troubleshooting Chart (1992 Bronco)

Service procedure

Ford truck certification label with 25 numbered callouts explaining GVWR, tire, VIN and code fields

Spec plate

'91-93 Ford truck drive axle application chart for Bronco, F-150, F-250, F-350 and F-Super Duty

Manual page

1992 Ford Bronco/F-Series 5.0L 5.8L Engine Compartment Connector Locations

Schematic

Ford 5.0L V8 Vacuum Hose Routing Diagram - EGR, AIR, FPRC & Carbon Canister

Vacuum routing

Ford 255/302/351W & 351M/400 V8 Intake Manifold Bolt Tightening Sequence

Torque spec

Blueprint

1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & Accessories

Brochure

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

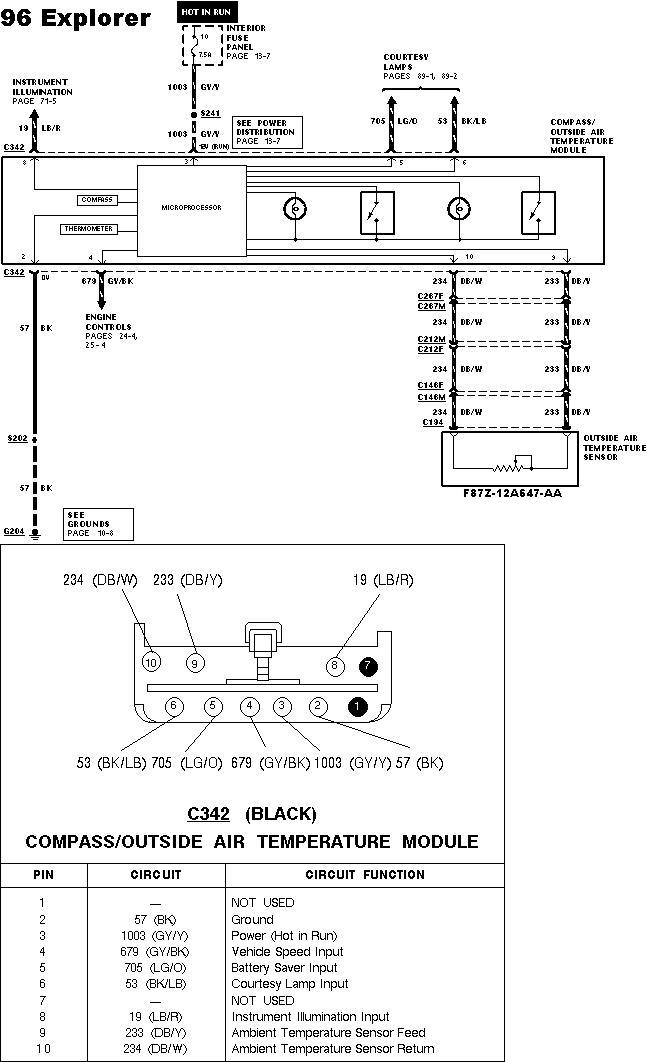

Wiring diagram of the 96 Explorer compass/outside air temperature module with color-coded circuits and connector C342 pinout.
