Which connector is the fuse panel on the Bronco/F-Series dash?

C207 is identified as the Fuse Panel, located on the driver's side of the dash near the hazard flasher and turn flasher.

What connector numbers serve the instrument cluster?

C250, C252, and C251 are the instrument cluster connectors.

Where is the rear window defrost control connector, and does it apply to all trucks?

C278 is the rear window defrost control connector, and the diagram notes it applies to the Bronco only.

Which connector is the diesel warning lamps display?

C264 is the Diesel Warning Lamps Display connector, noted as applying to the 7.3L only.

What connectors are for the cigar lighter and auxiliary power socket?

C294 and C295 serve the cigar lighter; C234 and C235 serve the auxiliary power socket.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254802

1993 Ford Bronco/F-Series Dash Connector Locations Diagram (FPS-12129-93)

Ford Bronco instrument panel electrical component locator: A/C-heater control, PSOM, fuse panel, connectors

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford EEC Self-Test Connector Diagram - DLC & STI Jumper Wire (1992 Bronco)

1992 Ford Bronco Power Mirror Wiring Diagram - Switch & Motor Wire Colors

1996 Ford Explorer Compass/Outside Air Temp Module Wiring Diagram - C342 Pinout

Ford Bronco Overhead Console Wiring Diagram - C914 Compass/Temp Module Pinout

1993 Ford Bronco/F-Series Dash Connector Locations Diagram (FPS-12129-93)

1992 Ford Bronco Cruise Control Wiring Diagram - Servo, Amplifier & Wire Colors

1992 Ford Bronco Courtesy Lamps Wiring Diagram - Dome, Cargo & Map Lights

1992-Up Ford Multi-Function Switch (MFS) Testing - Pinout, Wire Colors & Ohm Values

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford Bronco PCV Valve & Crankcase Ventilation Tube Exploded Diagram

Exploded parts

Ford RABS Rear Antilock Brake System Troubleshooting Chart (1992 Bronco)

Service procedure

Ford truck certification label with 25 numbered callouts explaining GVWR, tire, VIN and code fields

Spec plate

'91-93 Ford truck drive axle application chart for Bronco, F-150, F-250, F-350 and F-Super Duty

Manual page

1992 Ford Bronco/F-Series 5.0L 5.8L Engine Compartment Connector Locations

Schematic

Ford 5.0L V8 Vacuum Hose Routing Diagram - EGR, AIR, FPRC & Carbon Canister

Vacuum routing

Ford 255/302/351W & 351M/400 V8 Intake Manifold Bolt Tightening Sequence

Torque spec

Blueprint

1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & Accessories

Brochure

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Bronco-series IP electrical component location view showing connector IDs C204-C298: heater control C298, blower switch C260, fuse panel C207, speed control C219, PSOM connector C232.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption October 2005 · Photo 108 of 272

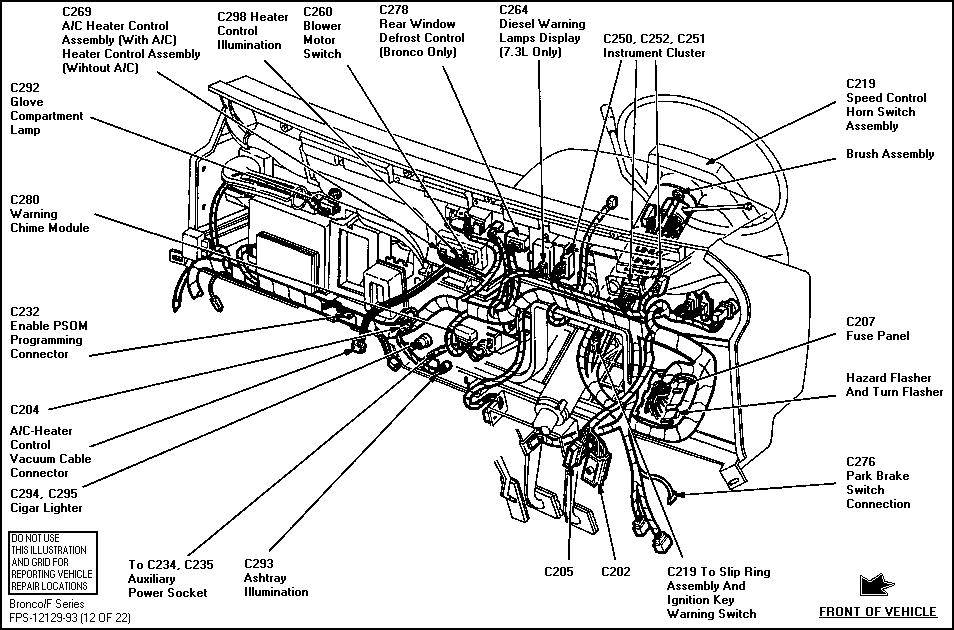

This document is a Ford factory-style illustration (labeled "Bronco/F Series, FPS-12129-93, 12 OF 22") showing the locations of electrical connectors behind the dashboard/instrument panel of a Ford Bronco or F-Series truck. Each callout identifies a connector number and the component it serves, including: C269 A/C-heater control assembly, C298 heater control illumination, C260 blower motor switch, C278 rear window defrost control (Bronco only), C264 diesel warning lamps display (7.3L only), C250/C252/C251 instrument cluster, C219 speed control horn switch assembly and slip ring/ignition key warning switch, C292 glove compartment lamp, C280 warning chime module, C232 enable PSOM programming connector, C207 fuse panel, hazard and turn flashers, C204 A/C-heater control vacuum cable connector, C294/C295 cigar lighter, C276 park brake switch connection, C234/C235 auxiliary power socket, C293 ashtray illumination, and connectors C205 and C202. An arrow indicates the front of the vehicle, and a note warns not to use the illustration and grid for reporting vehicle repair locations. This is page 12 of 22 in the set and is useful for locating and identifying dash harness connectors during electrical diagnosis or repair.
