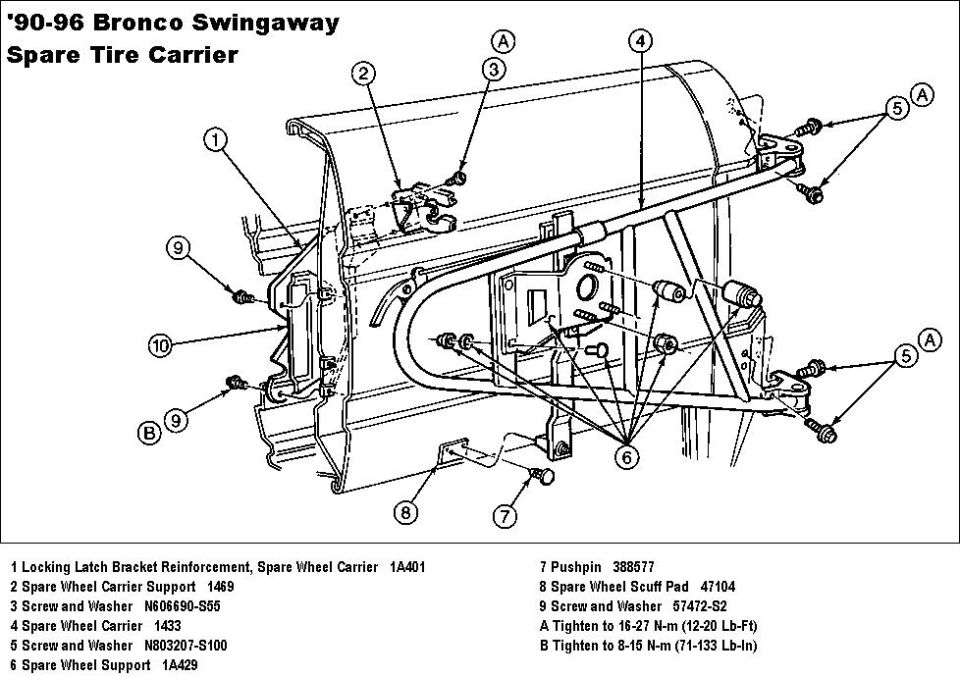

swingaway.jpg TSB 90-07-13 Swingaway Latch
This type was used from '90-96.
Publication Date: March 28, 1990

LIGHT TRUCK: 1990 BRONCO

ISSUE: High latching and operating efforts of the swing-away spare tire carrier may be caused by a lack of lubrication on the latch and striker assemblies.

ACTION: Lubricate the swing-away spare tire carrier latch and striker assemblies. Refer to the following procedure for service details.

SERVICE PROCEDURE
1. Make sure the spare tire carrier is latched. Both the primary and secondary latches must be engaged.
2. Spray multi-purpose grease (D7AZ-19584-AA) onto the latch mechanism located on the vertical bar of the swing-away carrier.
3. Make sure the tailgate striker is in the full up position and square. Do not allow striker misalignment.
4. Close the carrier.
* Both the primary and secondary positions must be latched.
* If the carrier does not latch, re-adjust the tailgate striker as required.
5. Lubricate the roll pin on the striker and the portion of the striker which engages the rubber sleeve on the carrier.

PART NUMBER  PART NAME
D7AZ-19584-AA  Multi-Purpose Grease

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under Basic Warranty Coverage

OPERATION  DESCRIPTION  TIME
900713A  Lubricate Tire Carrier  0.4 Hr.
