1992 Ford 5.0L/5.8L Engine Component Connector Locations Diagram

Component connector location diagram for 1992 5.0L/5.8L engines with connector callouts
Component connector location diagram for 1992 5.0L/5.8L engines with connector calloutsOriginal file
Component connector location diagram for 1992 5.0L/5.8L engines with connector callouts

Reference · 1987-1991 BroncoAll 110 schematics

1992 Ford 5.0L/5.8L Engine Component Connector Locations Diagram 1987-88 Ford 5.0L Engine Component Locations Diagram - Sensors & Solenoids 1992 Ford 5.0L/5.8L Engine Bay Component Connector Locations Diagram 1988 Ford Bronco 5.0 Thermactor Diagram - Air Control Valve & Check Valves Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification Ford Vacuum Check Valve Direction Diagram - Airflow & Black Vacuum Side Ford Thermactor Air Diverter Valve Diagram - Inlet & Outlet Port Identification Ford Idle Air Control (IAC) Valve Diagram - Cutaway Schematic & Airflow Ford Idle Air Bypass (IAB) Solenoid Cutaway Diagram - Plunger, Spring, Airflow Ford Idle Air Control (ISC-BPA) Solenoid Cutaway Schematic - Bronco IAC Valve Ford TPS Throttle Position Sensor Wiring Diagram - VREF, TP SIG, SIG RTN Colors 110schematics1987-1991 Ford Bronco More reference Ford Bronco Trailer Option Wiring Diagram - Trailer Package Circuits (Page 108)Wiring diagram Rear Antilock Brakes Flashout Code 5 test steps 5a through 5c with module harness connector pin viewService procedure Ford certification label dated 06/88 with GVWR 6300 LB, GAWR ratings and 31-10.5RX15C tire dataSpec plate Ford 5.0L EFI Engine Exploded Diagram - Internal & External Parts ListExploded parts 1988 Ford 5.0L emissions decal with EEC IV/EFI timing steps and vacuum hose routing diagramVacuum routing 1988 Ford Bronco/F-Series Fuse Box Diagram - Fuse Panel Sticker E8TB-14K016-AAFuse chart Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page Magnum Metropolitan Brochure - Ford Bronco/F-Series Suburban-Style ConversionBrochure Tubing Adapter Blueprint 2.00" OD x 1.375" ID x 3" - 1.125"-12 TPI RH ThreadBlueprint Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

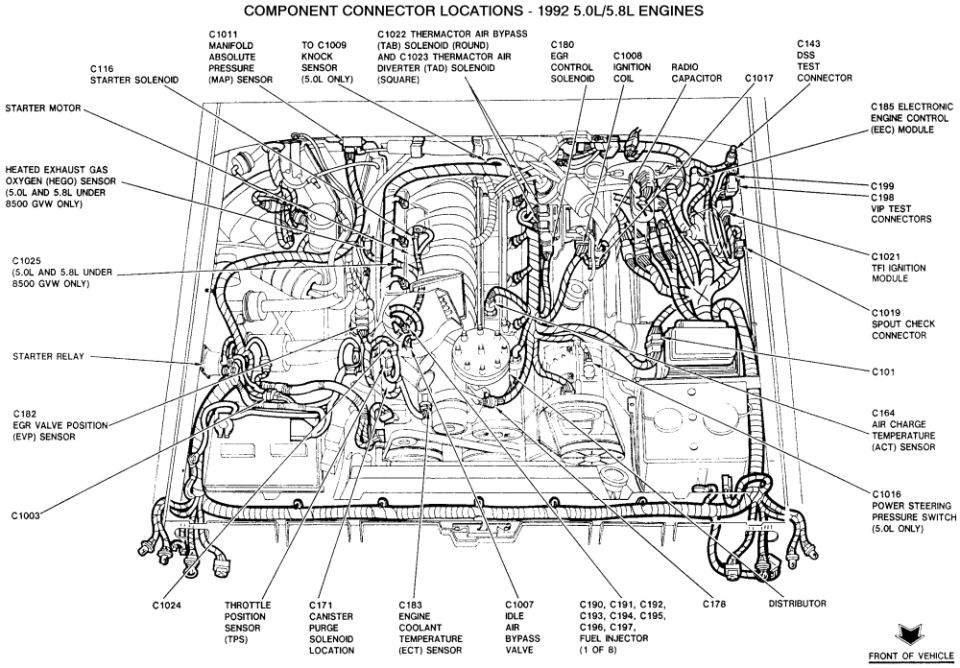

Component connector location schematic for 1992 5.0L/5.8L engines identifying numbered connectors, sensors and modules.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 41 of 120

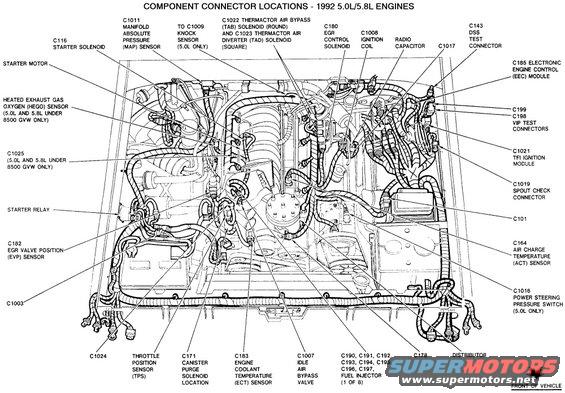

This document is a labeled engine bay illustration titled "Component Connector Locations - 1992 5.0L/5.8L Engines," showing a top-down view of a Ford 5.0L/5.8L V8 engine compartment. Callout lines identify the physical locations of electrical connectors and components, each keyed with its connector number. Items shown include the starter motor, starter solenoid (C116), starter relay, heated exhaust gas oxygen (HEGO) sensor (5.0L/5.8L under 8500 GVW only), EGR valve position (EVP) sensor (C182), MAP sensor (C1011), knock sensor connector (to C1009, 5.0L only), thermactor air bypass (TAB, C1022) and diverter (TAD, C1023) solenoids, EGR control solenoid (C180), ignition coil (C1008), radio capacitor, DSS test connector (C143), EEC module (C185), VIP test connectors (C198/C199), TFI ignition module (C1021), SPOUT check connector (C1019), air charge temperature (ACT) sensor (C164), power steering pressure switch (C1016, 5.0L only), throttle position sensor (TPS), canister purge solenoid (C171), engine coolant temperature (ECT) sensor (C183), idle air bypass valve (C1007), fuel injector connectors (C190-C197), distributor, and others (C101, C178, C1003, C1017, C1024, C1025). A "Front of Vehicle" arrow orients the diagram. Useful for locating sensors and connectors during diagnostics on 1992 Ford 5.0L/5.8L engines.

This document covers 1992, which may differ from this 1988 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the EEC module connector on the 1992 5.0L/5.8L engine?
The C185 Electronic Engine Control (EEC) module connector is shown at the upper right of the engine compartment, near the passenger-side firewall area in the diagram.
What connector numbers are used for the fuel injectors?
The eight fuel injector connectors are C190, C191, C192, C193, C194, C195, C196, and C197 (labeled '1 of 8').
Which components apply only to the 5.0L engine?
The knock sensor (to C1009) and the C1016 power steering pressure switch are marked '5.0L only.'
What is connector C1019?
C1019 is the SPOUT check connector, located near the TFI ignition module (C1021) on the right side of the engine compartment.
What are C1022 and C1023?
C1022 is the Thermactor Air Bypass (TAB) solenoid (round) and C1023 is the Thermactor Air Diverter (TAD) solenoid (square).
