Ford 5.0L EFI Engine Exploded Diagram - Internal & External Parts List

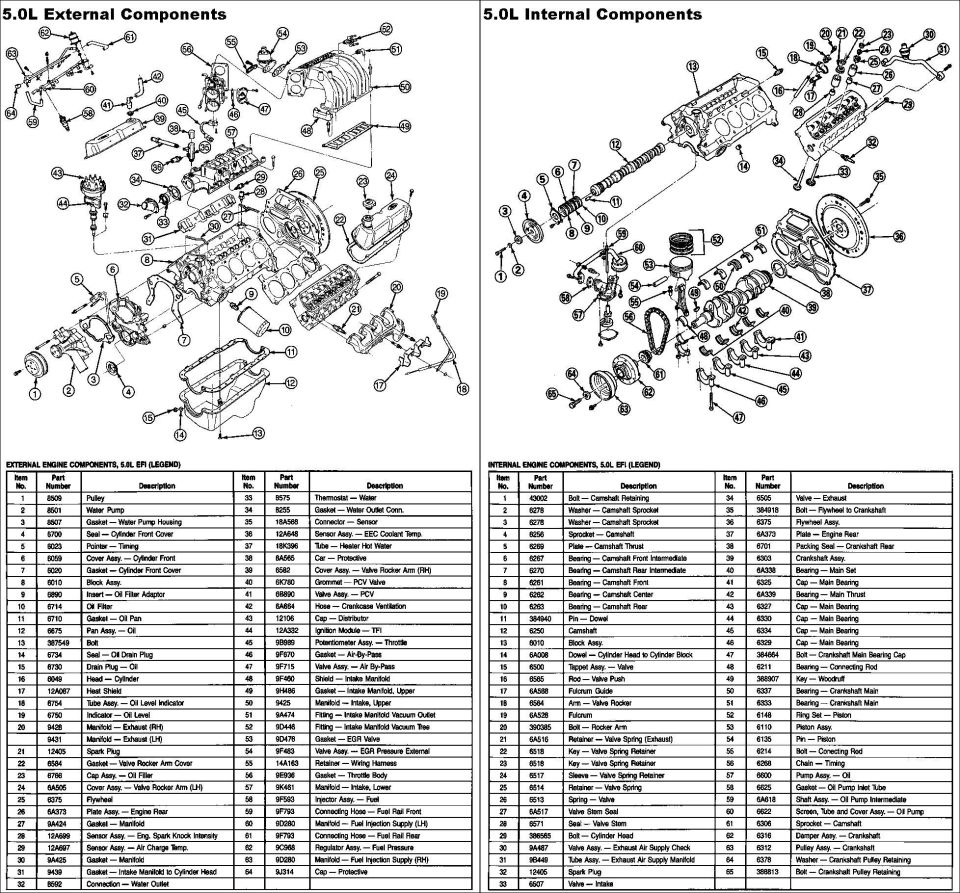

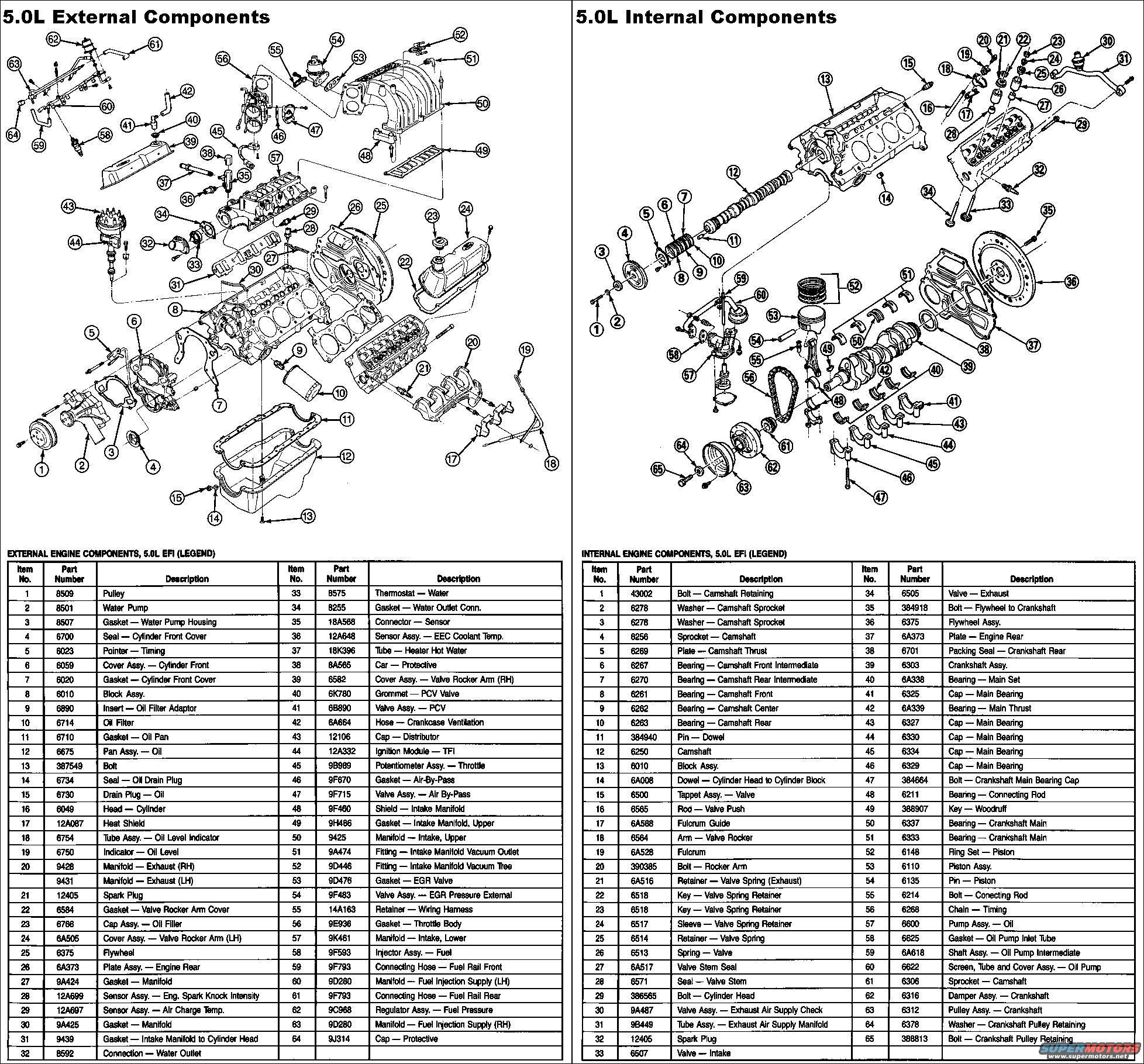

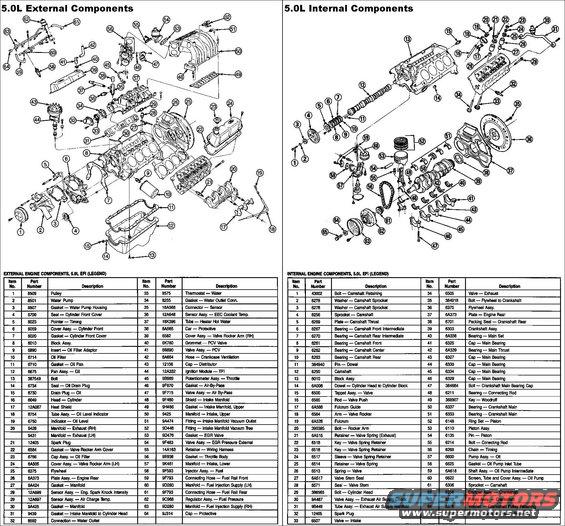

This document is a two-part exploded parts diagram for the Ford 5.0L EFI V8 engine, showing external and internal engine components side by side. The left half, titled "5.0L External Components," contains an exploded illustration with 64 numbered callouts keyed to a legend table listing item number, Ford base part number, and description for external parts such as the water pump (8501), oil pan (6675), exhaust manifolds (9428 RH / 9431 LH), TFI ignition module (12A332), throttle position potentiometer (9B989), upper and lower intake manifolds (9425 / 9K461), fuel injectors (9F593), and fuel pressure regulator (9C968). The right half, "5.0L Internal Components," shows 65 numbered internal parts including the camshaft (6250), camshaft bearings, valvetrain (tappets, pushrods, rocker arms, valve springs, intake valve 6507, exhaust valve 6505), crankshaft assembly (6303), main bearing caps, piston assembly (6110), piston ring set (6148), timing chain (6268), oil pump (6600), and crankshaft damper (6316). A reader can use this document to identify every major 5.0L EFI engine component by its callout location in the exploded views and cross-reference it to its Ford base part number for ordering replacement parts or reassembling the engine. The document itself carries no year or model designation beyond "5.0L EFI."
