Ford 5.8L V8 Camshaft & Timing Chain Exploded Diagram - Bearings, Eccentric

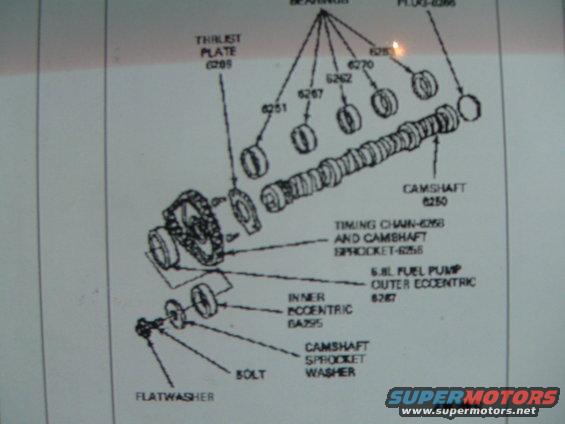

This document is an exploded parts diagram showing the camshaft assembly for a Ford small-block V8 engine, referencing the 5.8L engine. The illustration depicts the camshaft (part group 6250) with its five camshaft bearings (callouts 6251, 6267, 6262, 6270, and one partially legible number), a rear camshaft plug, and the front-end drive components. Front-of-engine parts shown in exploded order include the camshaft thrust plate (6269), the timing chain (6268) with camshaft sprocket (6256), the 5.8L fuel pump outer eccentric (6287), the inner eccentric (6A295), the camshaft sprocket washer, the retaining bolt, and a flatwasher. A reader can learn the correct assembly order and orientation of the camshaft, bearings, thrust plate, timing chain/sprocket, and fuel pump eccentrics, along with Ford basic part group numbers for ordering or cross-referencing parts. The diagram is useful for anyone rebuilding a timing set or replacing a camshaft, showing how the fuel pump eccentric pieces stack in front of the cam sprocket before the washer and bolt secure the assembly. The image is a photograph of a screen or printed page, with the top labels partially cut off and some part numbers blurry.
