What connector does this diagram show?

It shows C1057, the connector for the Anti-Lock Brake Control Module, with its pin numbering and circuit/wire color callouts.

How many pins does the ABS control module connector have?

The connector face shows 55 pin positions, numbered 1–19 on the top row, 20–37 on the middle row, and 38–55 on the bottom row.

Which circuits are marked as SHO only?

Circuits marked with a single asterisk (* SHO ONLY) are 685 (BK/W), 550 (Y/LG), and 678 (Y).

Which circuit is marked as Taurus only?

Circuit 492 (BR) is marked with a double asterisk, which the legend defines as TAURUS ONLY.

What wire color is circuit 530 at the ABS module?

Circuit 530 is shown with wire color LG/Y (light green/yellow), appearing at both ends of the top row of the connector.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ 1993 Ford Taurus/ Photo supermotors.net/registry/media/576228

Ford Taurus/SHO ABS Module Connector C1057 Pinout - Wire Colors & Circuits

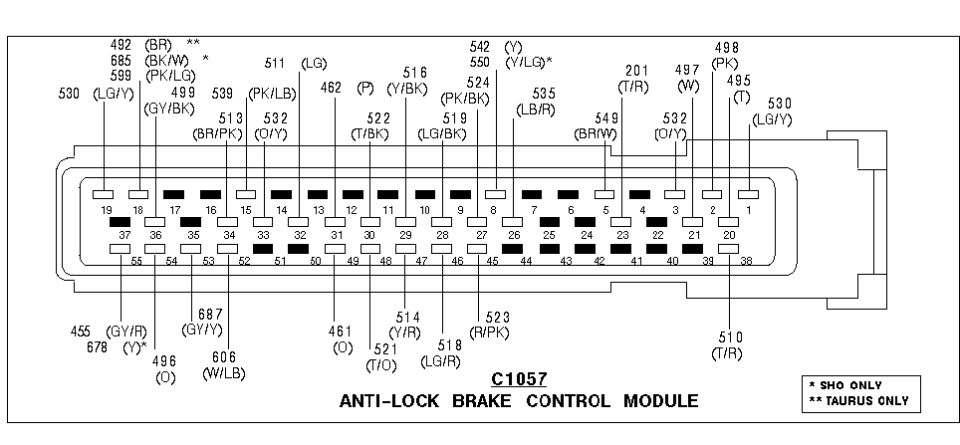

Anti-lock brake control module C1057 connector pinout diagram with numbered pins and color-coded circuits

‹ ›

Connector pinout diagram for the anti-lock brake control module C1057 with numbered pins and color-coded circuits.

AI caption October 2007 · Photo 78 of 117

This document is a connector pinout diagram for connector C1057, the Anti-Lock Brake Control Module connector. It shows the connector face with a 55-pin layout arranged in three rows: pins 1–19 across the top, pins 20–37 in the middle, and pins 38–55 across the bottom. Callout lines from individual pin cavities identify the circuit numbers and wire color codes used at the ABS module, including circuits 530 (LG/Y), 492 (BR), 685 (BK/W), 599 (PK/LG), 499 (GY/BK), 539, 513 (BR/PK), 511 (PK/LB), 532 (O/Y), 462 (LG/P), 522 (T/BK), 516 (Y/BK), 519 (LG/BK), 524 (PK/BK), 542 (Y), 550 (Y/LG), 535 (LB/R), 549 (BR/W), 201 (T/R), 497 (W), 498 (PK), 495 (T), and on the bottom side 455 (GY/R), 678 (Y), 496 (O), 687 (GY/Y), 606 (W/LB), 461 (O), 521 (T/O), 514 (Y/R), 518 (LG/R), 523 (R/PK), and 510 (T/R). A legend indicates that a single asterisk marks circuits that are SHO ONLY (685, 550, 678) and a double asterisk marks TAURUS ONLY circuits (492). The diagram is useful for tracing ABS wiring, testing circuits at the module connector, and identifying wire colors during diagnosis.
