What wire colors go to the left front door speaker in the JBL system without CD player?

Circuit 813 LB/W (light blue/white) and circuit 804 O/LG (orange/light green), connecting to the speaker through connector C516.

What are the right front door speaker circuits and connector?

Circuit 811 DG/O (dark green/orange) and circuit 805 W/LG (white/light green), connecting through connector C616.

Which wires feed the rear speakers in the JBL system?

Left rear speaker: circuit 826 DB/O and circuit 807 PK/LG through connector C440. Right rear speaker: circuit 806 PK/LB and circuit 803 BR/PK through connector C441.

Where does the speaker wiring on this page come from?

It comes from the JBL Audio System Amplifier, shown on page 130-8 of the same diagram set (takeout point Z).

Which connectors are marked NOT USED?

Two takeouts to connector C258 are marked NOT USED — one on the front speaker circuits (813, 804, 811, 805) and one on the rear circuits (826, 807, 806, 827 T/W).

Home/ Registry/ Ford/ Taurus/ 1992-1995/ 1993 Ford Taurus/ Photo supermotors.net/registry/media/593149

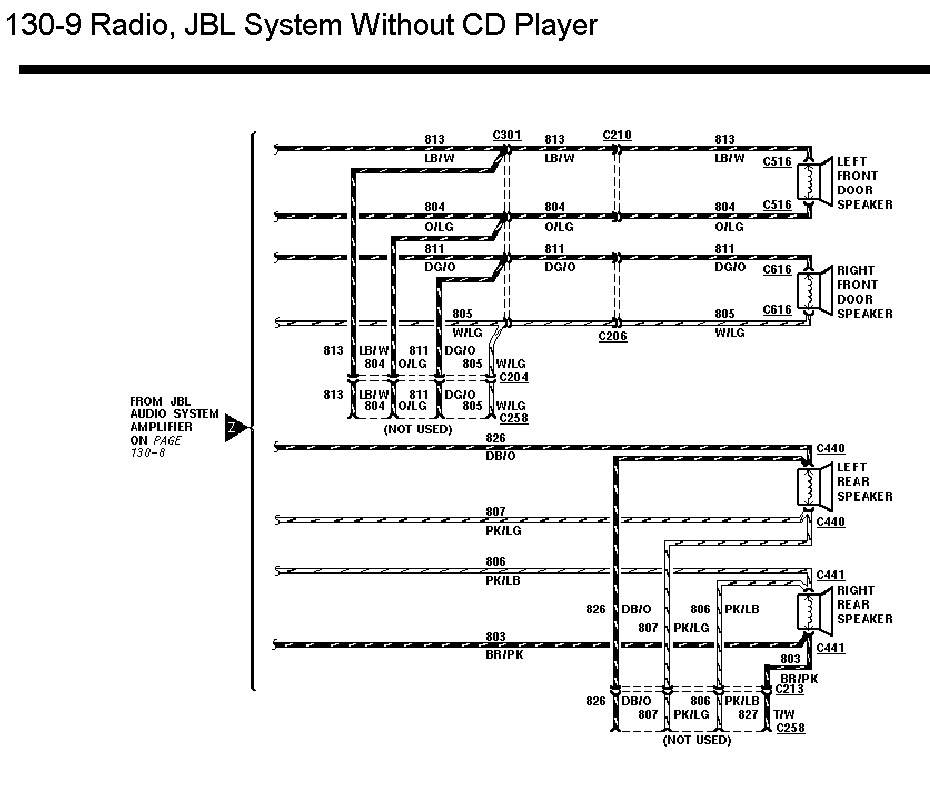

Ford Taurus SHO JBL Radio Wiring Diagram (No CD) - Speaker Wire Colors, Pg 130-9

Radio JBL system without CD wiring diagram, page 130-9, showing front and rear door speaker circuits

‹ ›

Wiring diagram for the JBL radio system without CD player showing color-coded front and rear speaker circuits.

AI caption December 2007 · Photo 83 of 117

This is page 130-9 of a Ford factory wiring diagram set, titled "Radio, JBL System Without CD Player." It shows the speaker output wiring from the JBL audio system amplifier (continued from page 130-8) to the four vehicle speakers. The left front door speaker connects through connector C516 via circuits 813 (LB/W, light blue/white) and 804 (O/LG, orange/light green), passing through connectors C301 and C210. The right front door speaker connects through C616 via circuits 811 (DG/O, dark green/orange) and 805 (W/LG, white/light green), passing through C206. Branch takeouts route to connectors C204 and C258 (C258 is marked NOT USED). The left rear speaker connects through C440 via circuits 826 (DB/O, dark blue/orange) and 807 (PK/LG, pink/light green); the right rear speaker connects through C441 via circuits 806 (PK/LB, pink/light blue) and 803 (BR/PK, brown/pink). Rear branch wiring routes through connector C213, with another unused takeout at C258 including circuit 827 (T/W, tan/white). This page lets a reader identify each speaker's circuit numbers, wire colors, and in-line connector locations for diagnosing JBL audio system speaker faults.
