Rock Lights Relay Wiring Diagram - Dome Light Auto/Manual Switch, 20A Fuse

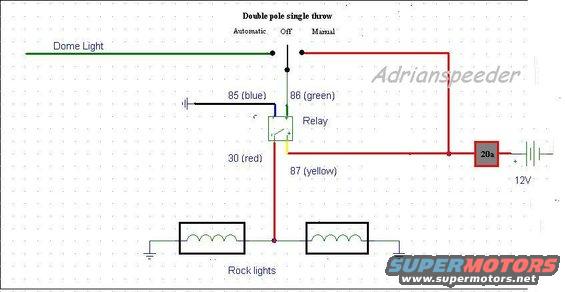

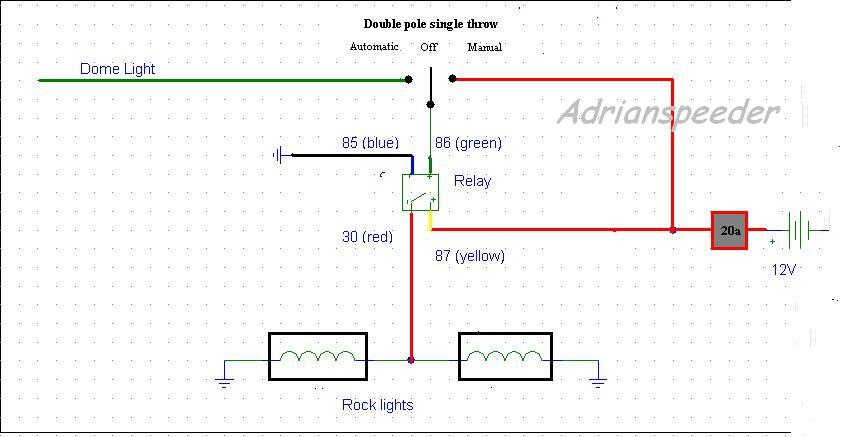

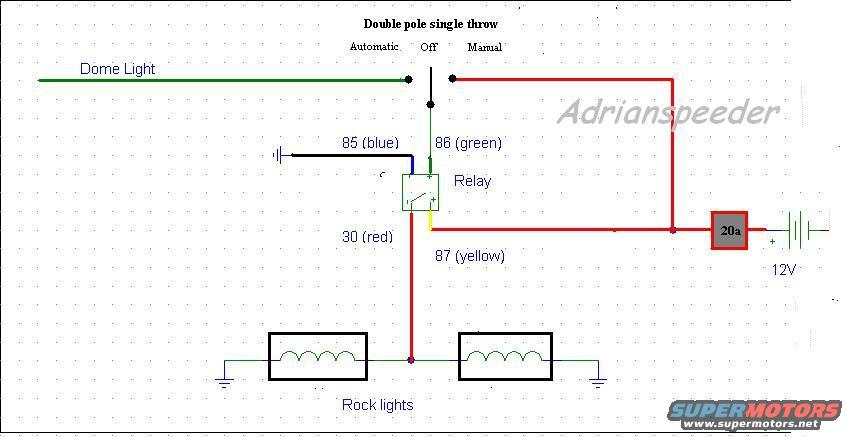

This is a hand-drawn wiring diagram (watermarked "Adrianspeeder") for adding rock lights to a vehicle, uploaded to a 1988 Ford Bronco gallery. It shows a double pole single throw switch with three positions: Automatic, Off, and Manual. In the Automatic position, the circuit ties into the dome light wire so the rock lights come on with the interior light; in Manual, the lights are powered directly from the 12V battery through a 20-amp fuse. A standard automotive relay is used with its terminals labeled by number and wire color: 85 (blue) to ground/switch, 86 (green) to the switch, 30 (red) feeding the rock lights, and 87 (yellow) to the fused 12V positive supply. Two rock light lamps are shown wired in parallel, each with its own chassis ground. The diagram teaches a reader which relay pins to use, what wire colors the author assigned, the recommended 20A fuse size, and how to wire a three-position switch for automatic (dome-light-triggered) or manual operation of auxiliary rock lights. No year, make, model, or part numbers are stated in the diagram itself.
