What fuse powers the master tailgate window switch?

Fuse panel position 14, a 20A circuit breaker, which is hot in ACC or RUN, feeds the master tailgate window switch via a LB/BK wire.

What powers the key-operated tailgate window switch?

Fuse panel position 12, a 20A circuit breaker that is hot at all times, feeds the key-operated tailgate window switch through a BK/W wire.

What does the tailgate latch switch do in this circuit?

The tailgate latch switch is open when the tailgate is not fully closed; it sits between the tailgate window switch (T/BK wire) and the power window motor (R/Y wire), preventing motor operation with the gate open.

What wire colors run between the master switch and the tailgate window switch?

P/LG and PK/LB wires connect the master tailgate window switch to the key-operated tailgate window switch, passing through point 517.

Where does the master tailgate window switch ground?

Through a BK wire to ground point G701.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1988 Ford Bronco/ Photo supermotors.net/registry/media/598014

Ford Bronco Tailgate Power Window Wiring Diagram - Switch, Motor & Fuses

Tailgate power window wiring diagram with color-coded wires and switches

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

Auxiliary light wiring diagram with 30 amp relay, 25 amp fuse, 12v battery and two 55W lights

Fog/Driving Light Relay Wiring Diagram - 55W Aux Lights, Relay Pins 30/85/86/87

Ford Bronco Tailgate Power Window Wiring Diagram - Switch, Motor & Fuses

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & Distributor

Ford 4-Terminal Starter Relay Wiring Diagram - S & I Terminals, Coil & Starter

Ford 4-Terminal Starter Solenoid Wiring Diagram - S & I Terminal Functions

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime module

1986-95 Ford V8 Truck Speed Density EEC-IV Pinout Wiring Diagram

1990 Ford Bronco Speed Control Wiring Diagram 31-2 - Cruise Servo & Amplifier

1990 Ford Bronco Speed Control Wiring Diagram 31-1 - Cruise Control Circuit

175wiring diagrams1987-1991 Ford Bronco More reference

Exploded parts

Ford automatic transmission identification chart of oil pan shapes for C3, C4, C6, MX, FX, FMX and Borg Warner

Manual page

Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Welder Input Data Plate - Serial JH229505, Stock 901782, 200/230/460V Specs

Spec plate

Brochure

Blueprint

'89 Ford vehicle emission control information label with EEC IV/EFI timing steps and vacuum hose routing

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

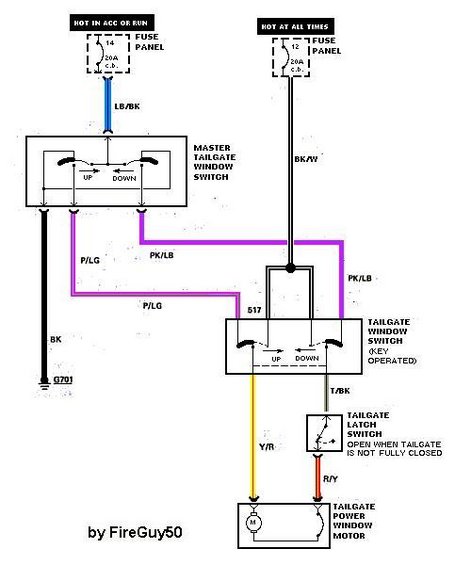

Wiring diagram of the tailgate power window circuit with master and key-operated switches, latch switch and color-coded wires.
