What is the part number for the Bronco tailgate back window glass?

The back window is shown as part number 9842006.

What torque is specified for the tailgate screw and washer assemblies?

The screw & washer assembly 57472-S2 is torqued to 9-14 N·m (6-11 ft-lbs), and the adjusting screw & washer to 9-4 N·m (6-11 ft-lbs).

What part numbers apply to the tailgate lock cylinder area?

View C shows the lock cylinder 7143184-E, clip 14559-B, and door lock cylinder retainer 9843629, along with the switch assembly.

What is the part number for the tailgate window regulator assembly?

The regulator assembly is part number 9844000, shown with the window motor.

Which parts make up the tailgate weatherstripping and seals?

The diagram shows the O/S belt weatherstrip 9841610, weatherstrip assembly 9841616-A (View B shows W/S assembly 9841610-A), seal assembly 9841616-7-A, and glass run assembly 98472A20-A.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1988 Ford Bronco/ Photo supermotors.net/registry/media/598011

Ford Bronco Tailgate Weatherstrip & Window Regulator Exploded Parts Diagram

Exploded parts drawing of a tailgate assembly with labeled part numbers and views

‹ ›

Exploded parts breakdown of a tailgate assembly showing window, regulator, glass, brackets and hardware with part numbers.

AI caption January 2008 · Photo 1 of 326

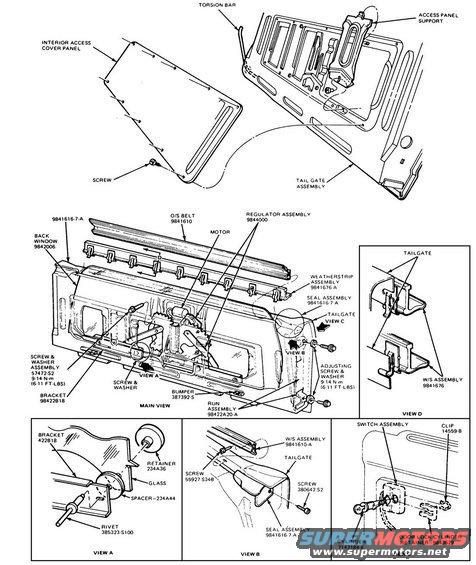

This document is an exploded parts diagram of a Ford Bronco tailgate assembly, focusing on the rear window (back window glass 9842006), tailgate weatherstripping, and related hardware. The upper illustration shows the tailgate with its interior access cover panel removed, identifying the torsion bar, access panel support, and attaching screws. The main view details the back window regulator assembly (9844000), motor, outside belt weatherstrip (9841610), weatherstrip assembly (9841616-A), seal assembly (9841616-7-A), glass run assembly (98472A20-A), bumper (387392-S), bracket (984228-1B), and screw & washer assemblies (57472-S2) with torque specifications of 9-14 N·m (6-11 ft-lbs) and 9-4 N·m (6-11 ft-lbs) for the adjusting screw. Detail View A shows a bracket (4228-1B), retainer (234A36), spacer (234A44), and rivet (385323-S100). View B shows the weatherstrip assembly (9841610-A) with screws 55927-S34B and 380647-S2 and seal assembly 9841616-7-A. View C covers the tailgate lock: switch assembly, clip (14559-B), lock cylinder (7143184-E), and door lock cylinder retainer (9843629). View D shows weatherstrip placement at the tailgate corner. The document lets a reader identify part numbers, fastener locations, and torque values for tailgate glass and weatherstrip service.
