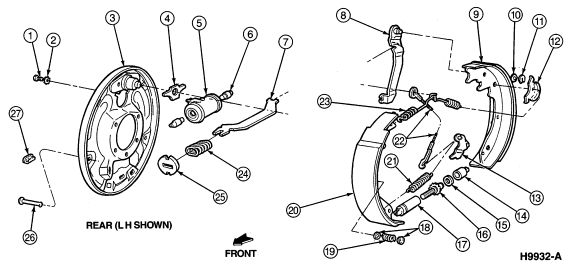

Ford Rear Drum Brake Exploded Parts Diagram (LH Shown) - Illustration H9932-A

This document is an exploded-view parts illustration of a rear drum brake assembly, labeled "REAR (L H SHOWN)" with a "FRONT" orientation arrow and Ford illustration number H9932-A. The drawing contains 27 numbered callouts identifying components but includes no printed legend or parts list on this page, so component names and part numbers are not stated in the document itself. The left half of the illustration depicts the brake backing plate with its mounting fasteners, the wheel cylinder, a parking brake actuating lever/strut, and adjuster hardware. The right half shows the brake shoes with hold-down pins, springs and retainers, return/retracting springs, the adjuster screw assembly with its spring, and the parking brake lever and related linkage. A reader can use this diagram to understand how the rear drum brake components fit together, their relative positions on the left-hand rear brake, and the order of assembly, though identification of each numbered part requires the accompanying legend page (not shown here). The uploader filed it as "94 rear brakes," suggesting it depicts a 1994-era Ford rear drum brake, though the vehicle it is attached to is a 2007 Ford Mustang.
