What wire color feeds the left stop/park/turn lamp?

Circuit 9 LG/O (light green/orange), running from connector C258 through C253F/M, C158F/M, splice S148, C148M/F, and C403M/F to connector C404 at the left stop/park/turn lamp.

What wire color feeds the right stop/park/turn lamp?

Circuit 5 O/LB (orange/light blue), running from connector C258 through splice S149 to connector C405 at the right stop/park/turn lamp.

Where do the rear stop/park/turn lamps ground?

Both rear lamps ground through circuit 57 BK to splice S401 and then ground G104 (see grounds page 10-2).

Where does the trailer/camper adapter tap into the stop/turn circuits?

At splice S148 (9 LG/O, left) and splice S149 (5 O/LB, right); the trailer/camper adapter is shown on page 95-2.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/724100

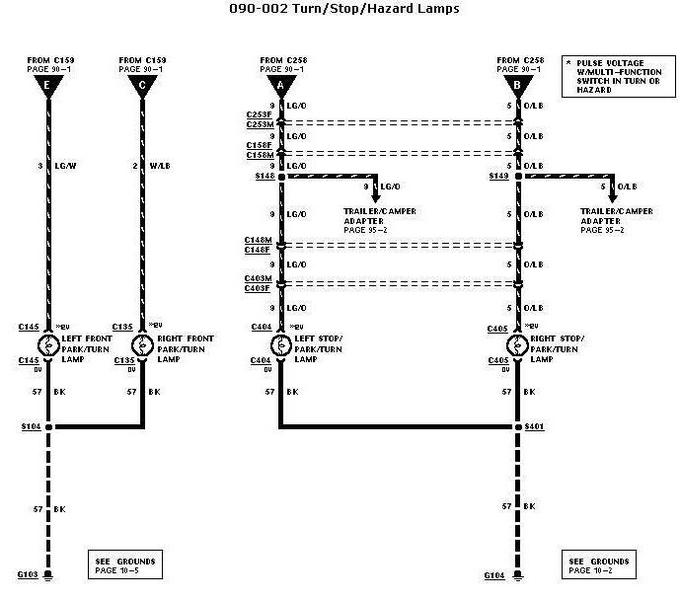

Ford Turn/Stop/Hazard Lamp Wiring Diagram 090-002 - Stop Lamp Circuits

Turn/stop/hazard lamps wiring diagram 090-002 with front park/turn and stop/turn lamps

‹ ›

Automotive wiring diagram for turn, stop and hazard lamps showing front park/turn and stop/turn lamps with trailer/camper adapters and color-coded circuits.

AI caption April 2009 · Photo 848 of 4867

This document is a Ford factory-style wiring diagram, sheet 090-002, covering the Turn/Stop/Hazard Lamps circuit. It shows four circuit branches originating from connectors C159 and C258 (both referenced to page 90-1). Circuit 3 LG/W (light green/white) feeds the left front park/turn lamp via connector C145, and circuit 2 W/LB (white/light blue) feeds the right front park/turn lamp via C135; both ground through circuit 57 BK to splice S104 and ground G103 (grounds page 10-5). Circuit 9 LG/O (light green/orange) feeds the left stop/park/turn lamp through connectors C253F/M, C158F/M, splice S148 (with a tap to the trailer/camper adapter, page 95-2), C148M/F, C403M/F, and C404. Circuit 5 O/LB (orange/light blue) feeds the right stop/park/turn lamp through the same connector series, splice S149 (also tapping the trailer/camper adapter), and C405. Rear lamps ground through circuit 57 BK to splice S401 and ground G104 (grounds page 10-2). A note indicates pulse voltage is present with the multi-function switch in the turn or hazard position. A reader can trace wire colors, connector numbers, splices, and ground points for diagnosing turn signal, brake lamp, or hazard lamp faults.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire color feeds the left stop/park/turn lamp?: Circuit 9 LG/O (light green/orange), running from connector C258 through C253F/M, C158F/M, splice S148, C148M/F, and C403M/F to connector C404 at the left stop/park/turn lamp.
What wire color feeds the right stop/park/turn lamp?: Circuit 5 O/LB (orange/light blue), running from connector C258 through splice S149 to connector C405 at the right stop/park/turn lamp.
Where do the rear stop/park/turn lamps ground?: Both rear lamps ground through circuit 57 BK to splice S401 and then ground G104 (see grounds page 10-2).
Where does the trailer/camper adapter tap into the stop/turn circuits?: At splice S148 (9 LG/O, left) and splice S149 (5 O/LB, right); the trailer/camper adapter is shown on page 95-2.
Why is the voltage pulsing on these circuits?: The diagram notes pulse voltage is present with the multi-function switch in the TURN or HAZARD position.
