TSB 88-05-13 Ugly Upholstery & Trim
Publication Date: MARCH 2, 1988

LIGHT TRUCK: 1987 F-SERIES, BRONCO

ISSUE: Poor appearance or premature wear of interior door trim panels and front and rear seat covers on F-Series and Bronco vehicles with XLT trim may be caused by the materials used to manufacture the panels and seat covers.

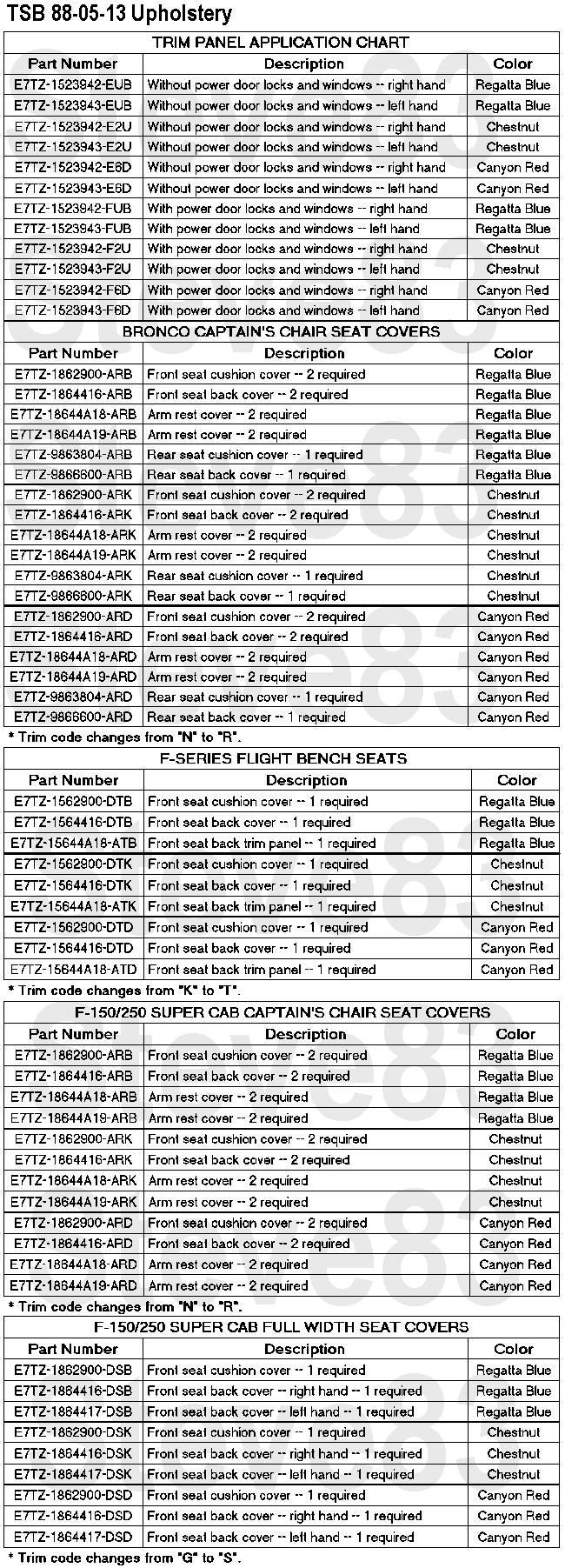

ACTION: To correct this, install new design door trim panels and seat covers made of Camden cloth. The Camden cloth improves wear qualities. Refer to the following trim panel and seat cover application charts for the correct service part numbers.

SERVICE PROCEDURE
NOTE: ON VEHICLES BUILT AFTER 2/18/87, DO NOT INSTALL NEW DOOR TRIM PANELS IF THEY HAVE A PLASTIC UPPER HALF WITH A 2" x 25" CLOTH APPLIQUE.
1. Remove the right and left hand interior door trim panels. Refer to the 1987 Light Truck Shop Manual, Section 45-03-1 for detailed service information.
2. Obtain the new service replacement interior door trim panels.
3. Install the right and left hand interior door trim panels. Refer to the 1987 Light Truck Shop Manual, Volume A, Section 41-60-1, for detailed service information.
4. Remove the front seat back and seat cushion covers. Refer to the 1987 Light Truck Shop Manual, Volume A, Section 41-60-1, for detailed service information.
5. On Broncos and F-Series Super Cabs, remove the rear seat back and seat cushion covers. Refer to the 1987 Light Truck Shop Manual, Volume A, Section 41-60-1, for detailed service information.
6. Obtain the new service replacement seat covers.
7. On Broncos and F-Series Super Cabs, install the new rear seat back and seat cushion covers. Refer to the 1987 Light Truck Shop Manual, Volume A, Section 41-60-1, for detailed service information.
8. Install new front seat back and seat cushion covers. Refer to the 1987 Light Truck Shop Manual, Volume A, Section 41-60-1, for detailed service information.

PART NUMBER PART NAME
E7TZ-1523942-EUB Trim Panel
E7TZ-1523943-EUB Trim Panel
E7TZ-1523942-E2U Trim Panel
E7TZ-1523943-E2U Trim Panel
E7TZ-1523942-E6D Trim Panel
E7TZ-1523943-E6D Trim Panel
E7TZ-1523942-FUB Trim Panel
E7TZ-1523943-FUB Trim Panel
E7TZ-1523942-F2U Trim Panel
E7TZ-1523943-F2U Trim Panel
E7TZ-1523942-F6D Trim Panel
E7TZ-1523943-F6D Trim Panel
E7TZ-1862900-ARB Front Seat Cushion Cover
E7TZ-1864416-ARB Front Seat Back Cover
E7TZ-18644A18-ARB Arm Rest Cover
E7TZ-18644A19-ARB Arm Rest Cover
E7TZ-9863804-ARB Rear Seat Cushion Cover
E7TZ-9866600-ARB Rear Seat Back Cover
E7TZ-1862900-ARD Front Seat Cushion Cover
E7TZ-1864416-ARD Front Seat Back Cover
E7TZ-18644A18-ARD Arm Rest Cover
E7TZ-18644A19-ARD Arm Rest Cover
E7TZ-9863804-ARD Rear Seat Cushion Cover
E7TZ-9866600-ARD Rear Seat Back Cover
E7TZ-1862900-ARK Front Seat Cushion Cover
E7TZ-1864416-ARK Front Seat Back Cover
E7TZ-18644A18-ARK Arm Rest Cover
E7TZ-18644A19-ARK Arm Rest Cover
E7TZ-9863804-ARK Rear Seat Cushion Cover
E7TZ-9866600-ARK Rear Seat Back Cover
E7TZ-1562900-DTB Front Seat Cushion Cover
E7TZ-1564416-DTB Front Seat Back Cover
E7TZ-15644A18-ATB Front Seat Back Trim Panel
E7TZ-1562900-DTD Front Seat Cushion Cover
E7TZ-1564416-DTD Front Seat Back Cover
E7TZ-15644A18-ATD Front Seat Back Trim Panel
E7TZ-1562900-DTK Front Seat Cushion Cover
E7TZ-1564416-DTK Front Seat Back Cover
E7TZ-15644A18-ATK Front Seat Back Trim Panel
E7TZ-1862900-DSB Front Seat Cushion Cover
E7TZ-1864416-DSB Front Seat Back Cover - R.H.
E7TZ-1864417-DSB Front Seat Back Cover - L.H.
E7TZ-1862900-DSD Front Seat Cushion Cover
E7TZ-1864416-DSD Front Seat Back Cover - R.H.
E7TZ-1864417-DSD Front Seat Back Cover - L.H.
E7TZ-1862900-DSK Front Seat Cushion Cover
E7TZ-1864416-DSK Front Seat Back Cover - R.H.
E7TZ-1864416-DSK Front Seat Back Cover - L.H.

SUPERSEDES: 87-15-07
WARRANTY STATUS: Eligible Under Basic Warranty Coverage

OPERATION DESCRIPTION TIME
880513A F-Series with captain's chairs 3.0 Hrs.
880513B F-Series with captian's chairs 1.3 Hrs.
880513C F-Series with full width seat 1.2 Hrs.
880513D Bronco 4.2 Hrs.
880513E Replace trim panels - All 0.5 Hr.
880513E1 Extra time to cut both speaker holes 0.4 Hr.
