Ford Transmission Fluid Temperature Sensor Location Diagram - 1995 Bronco E4OD

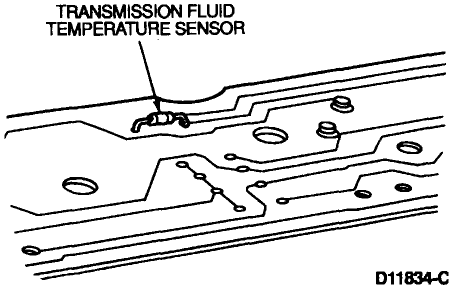

This document is a single line-art illustration from a Ford service manual showing the location of the Transmission Fluid Temperature Sensor. The drawing depicts a section of the transmission's internal valve body / case area viewed at an angle, with fluid passages, bolt holes, and openings visible. A single callout with a leader arrow points to a small sensor component mounted on the valve body area, labeled 'TRANSMISSION FLUID TEMPERATURE SENSOR.' The figure carries the Ford illustration reference number D11834-C in the lower right corner. No text beyond the callout label and figure number appears — there are no torque specifications, part numbers, wire colors, or procedural steps on this page. It appears to be one page of a multi-page automatic transmission service procedure set (other uploads in the album include additional transmission diagrams). A reader can learn where the transmission fluid temperature sensor is physically located within the transmission, which is useful when diagnosing transmission temperature-related codes or when replacing the sensor during valve body service. The uploader filed it with a 1995 Ford Bronco, which typically used the E4OD automatic transmission, though the drawing itself states no year, model, or transmission designation.
