What material are these Bronco body mount pucks made from?

The drawing specifies 6061-T6 aluminum (6061-T6 AL).

How many body mount pucks are needed in total?

Ten total: 2 "A" pillar, 2 "B" pillar, 4 bed, and 2 core support pucks.

What size is the center hole in each puck?

All four puck designs have a .625" (5/8") diameter through-hole.

What are the outer diameters of the pucks?

The A pillar, B pillar, and bed pucks are 3.0" diameter; the core support pucks are 2.5" diameter.

What year Broncos does this body mount drawing cover?

The title block states it is for 80-96 Bronco body mounts (1980-1996).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/844510

1980-96 Ford Bronco Aluminum Body Mount Puck Blueprint - Dimensions & Specs

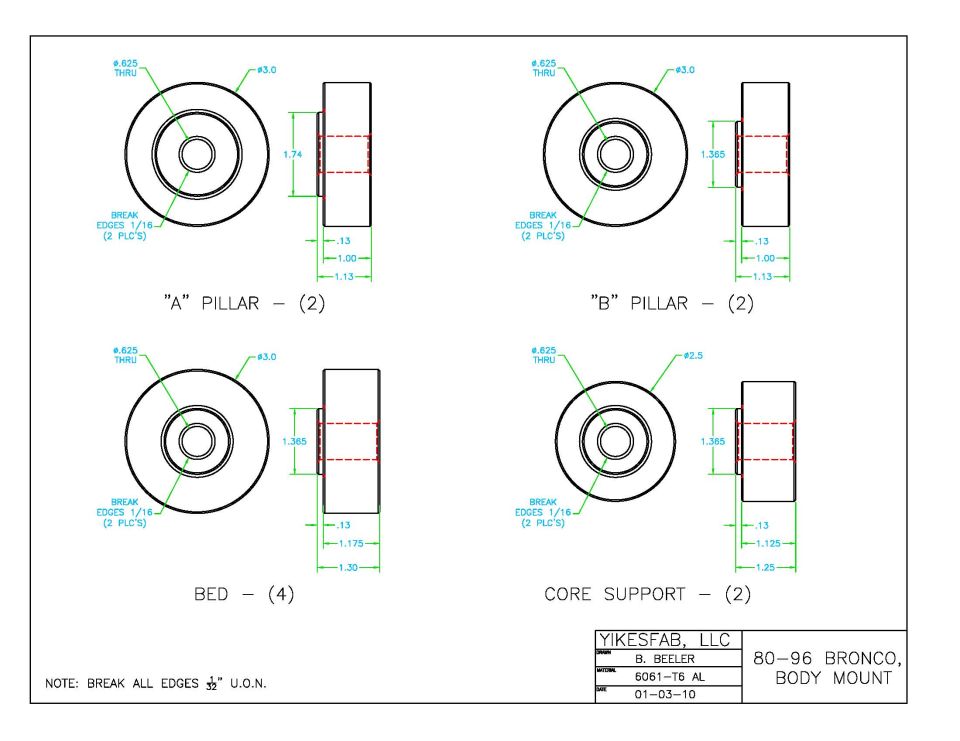

Dimensioned engineering drawing of four body-mount bushings for 80-96 Bronco

‹ ›

YIKESFAB dimensioned blueprint of A-pillar, B-pillar, bed, and core-support body-mount bushings for an 80-96 Bronco.

AI caption January 2011 · Photo 1397 of 1976

This is a machining blueprint from YIKESFAB, LLC (drawn by B. Beeler, dated 01-03-10) for a complete set of custom body mount pucks (bushings) for 1980–1996 Ford Broncos, to be machined from 6061-T6 aluminum. Four puck designs are detailed, each shown in front and side views with dimensions: "A" Pillar (qty 2) — 3.0" outer diameter, 0.625" through-hole, 1.74" pilot/shoulder diameter, 1.13" overall thickness with a 0.13" step to a 1.00" body; "B" Pillar (qty 2) — 3.0" OD, 0.625" hole, 1.365" shoulder, 1.13" overall / 1.00" body; Bed (qty 4) — 3.0" OD, 0.625" hole, 1.365" shoulder, 1.30" overall / 1.175" body; Core Support (qty 2) — 2.5" OD, 0.625" hole, 1.365" shoulder, 1.25" overall / 1.125" body. Each part calls for breaking edges 1/16" in two places, and a general note requires breaking all edges 1/32" unless otherwise noted. A machinist or fabricator can use this drawing to make a full 10-piece solid aluminum body mount kit for an 80–96 Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What material are these Bronco body mount pucks made from?: The drawing specifies 6061-T6 aluminum (6061-T6 AL).
How many body mount pucks are needed in total?: Ten total: 2 "A" pillar, 2 "B" pillar, 4 bed, and 2 core support pucks.
What size is the center hole in each puck?: All four puck designs have a .625" (5/8") diameter through-hole.
What are the outer diameters of the pucks?: The A pillar, B pillar, and bed pucks are 3.0" diameter; the core support pucks are 2.5" diameter.
What year Broncos does this body mount drawing cover?: The title block states it is for 80-96 Bronco body mounts (1980-1996).
