Subwoofer Box Front Baffle Blueprint – 25.25x14 in Panel, 11.25/12.88 in Cutouts

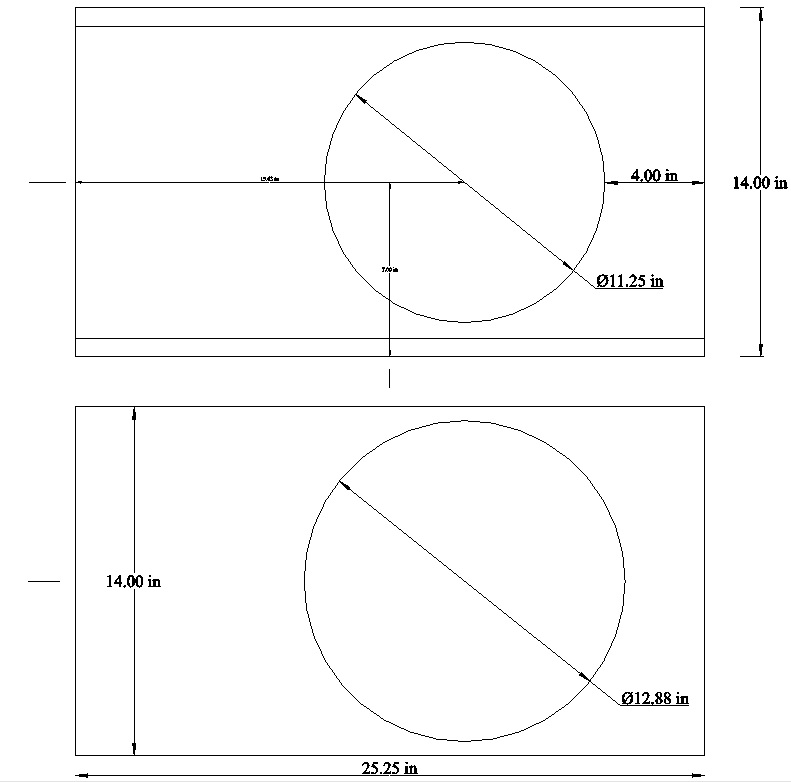

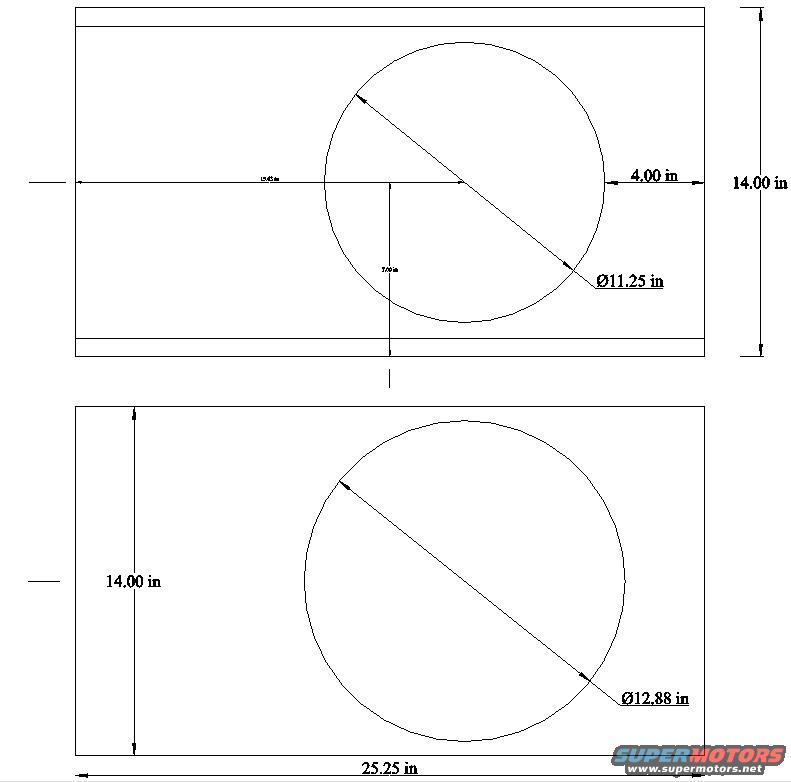

This document is a CAD-style dimensioned blueprint (two views) for the front panel of a custom subwoofer enclosure, uploaded as part of a car-audio build set for a 1994 Ford Bronco. The upper drawing shows a rectangular panel 14.00 inches tall with a circular cutout of Ø11.25 inches, positioned 4.00 inches from the right edge of the panel; a vertical dimension of 7.00 inches locates the circle center from the bottom edge, and a small, partially legible horizontal dimension locates it from the left side. The lower drawing shows a rectangular panel 25.25 inches wide by 14.00 inches tall containing a larger circular cutout of Ø12.88 inches. The two circles likely represent the speaker mounting hole and the outer speaker frame/grille diameter (roughly sized for a 12-inch subwoofer). A reader can use this sheet as a cut template for the enclosure front baffle: overall panel size (25.25 x 14.00 in), cutout diameters (11.25 in inner, 12.88 in outer), and the cutout's offset placement. The drawing contains no text other than dimensions — no part numbers, material callouts, or vehicle-specific information appear on the sheet itself.
