Ford Bronco Super Duty Seat Adapter Top Plate Blueprint - Dimensions & Hole Layout

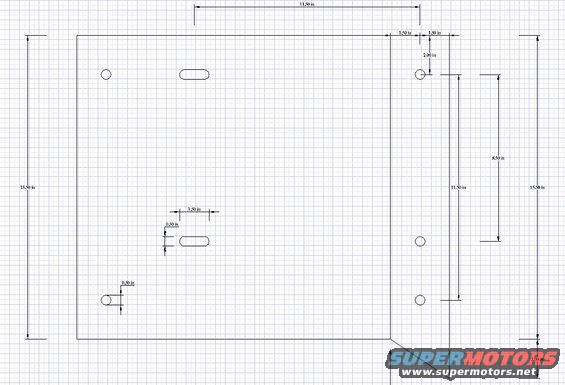

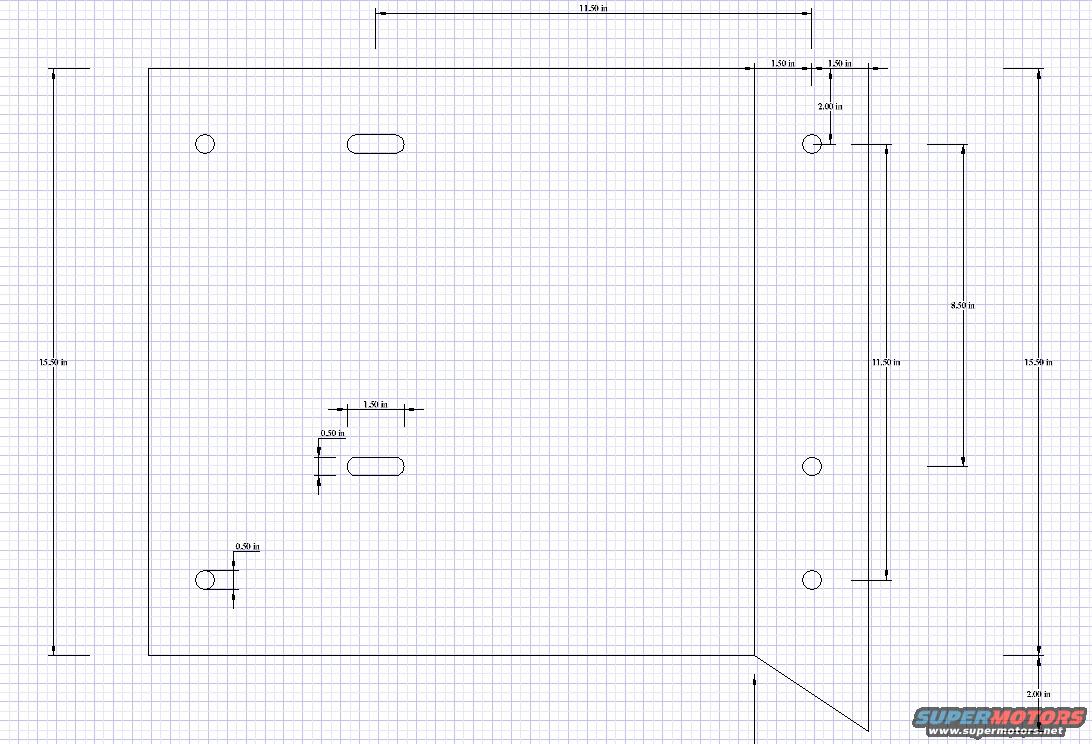

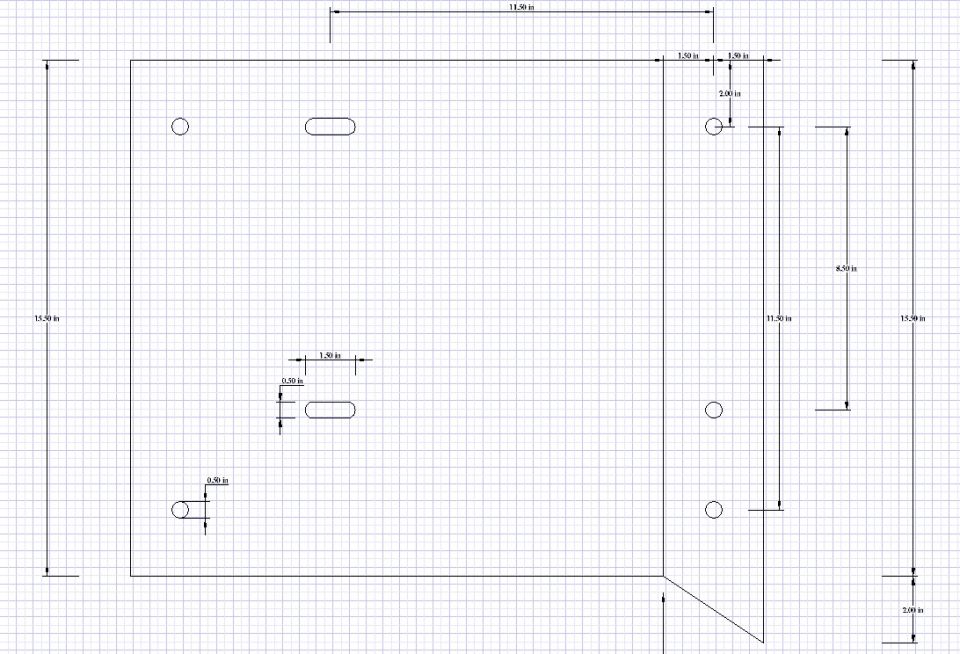

This document is a dimensioned mechanical blueprint (CAD drawing) for a flat plate, uploaded as "SD Seat Adaptor Top Plate" — the top plate of a seat adapter bracket intended to mount a Super Duty seat into a 1994 Ford Bronco. The drawing shows a plate approximately 15.50 inches tall (dimensioned on both left and right sides) with an 11.50-inch dimension across the top. Hole features include two round holes and a slot along the top edge, a 1.50-inch slot near the center offset 0.50 inch, a round hole at the lower left (0.50 in reference), and three round holes along a right-hand strip spaced 8.50 in and 11.50 in apart, with the top hole 2.00 in down from the top edge and 1.50 in / 1.50 in from the right side. The lower right corner has an angled cut with a 2.00-inch dimension. The drawing contains no title block, material spec, thickness, part number, or date — only dimension callouts in inches. A fabricator can use these dimensions to cut and drill the plate as part of a multi-page adapter set (companion side plate and wiring diagram scans exist in the same album).
