What are the overall dimensions of the SD seat adaptor side plate?

The plate is 19.50 inches long along the bottom edge and 3.50 inches tall.

How long is the top edge before the angled cut?

The top edge measures 16.00 inches before the angled corner cut begins.

What angle is the corner cut on the side plate?

The angled cut is dimensioned at 135.00° from the top edge, with a 3.00 inch horizontal run at the bottom.

Does the drawing specify material or thickness for the plate?

No. The drawing shows only outline dimensions (19.50 in, 16.00 in, 3.50 in, 3.00 in) and the 135.00° angle; no material, thickness, or holes are indicated.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1003111

Ford Bronco SD Seat Adaptor Side Plate Blueprint - Dimensions & Angle

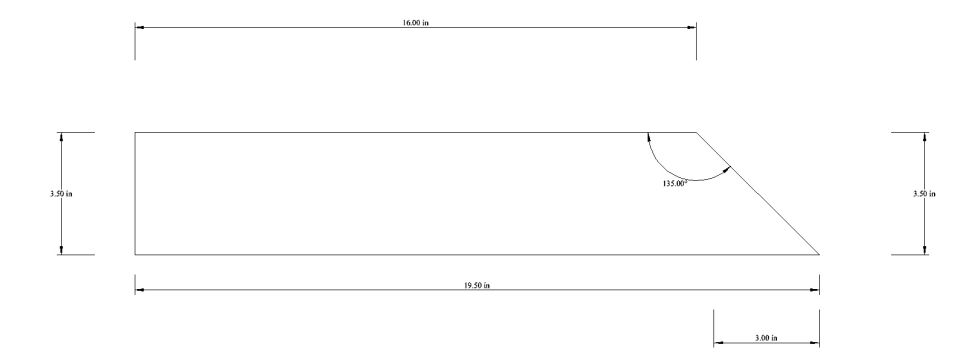

Dimensioned engineering drawing of an angled flat panel with measurements

‹ ›

Dimensioned engineering drawing of a flat panel with overall length and an angled cut callout labeled in inches and degrees.

AI caption November 2013 · Photo 1315 of 3001

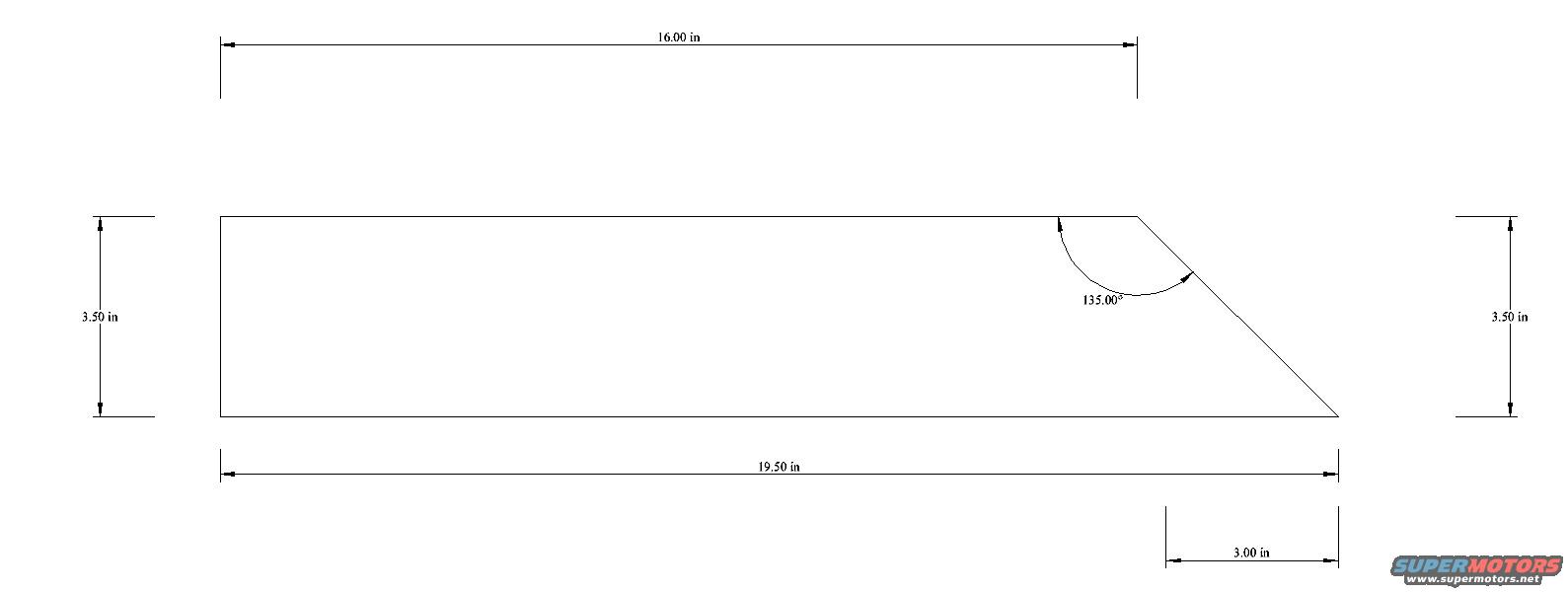

This document is a simple dimensioned CAD-style blueprint of a flat side plate, uploaded as "SD Seat Adaptor Side Plate" in an album relating to adapting a Super Duty power seat into a 1994 Ford Bronco. The drawing shows a long, low rectangular plate with one angled (chamfered) corner at the right end. Overall dimensions are given as 19.50 inches along the bottom edge and 3.50 inches tall (the height dimension is shown on both the left and right sides). The top edge measures 16.00 inches before the angled cut begins. The angled cut runs at 135.00° measured from the top edge, and the corresponding horizontal run of the chamfer along the bottom is dimensioned at 3.00 inches. There is no text block, title, material specification, thickness, hole pattern, part number, or date on the drawing — only the outline geometry and its five linear dimensions plus one angle. A reader can use this drawing to fabricate the side plate of a seat adaptor bracket, cutting a 19.50 in × 3.50 in plate with a 135° angled corner starting 16.00 in along the top edge.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the overall dimensions of the SD seat adaptor side plate?: The plate is 19.50 inches long along the bottom edge and 3.50 inches tall.
How long is the top edge before the angled cut?: The top edge measures 16.00 inches before the angled corner cut begins.
What angle is the corner cut on the side plate?: The angled cut is dimensioned at 135.00° from the top edge, with a 3.00 inch horizontal run at the bottom.
Does the drawing specify material or thickness for the plate?: No. The drawing shows only outline dimensions (19.50 in, 16.00 in, 3.50 in, 3.00 in) and the 135.00° angle; no material, thickness, or holes are indicated.
