What Ford part number is the EGR valve in this diagram?

The EGR valve is identified by callout 9F483, labeled 'E.G.R. VALVE' in the diagram.

What is the gasket part number for the EGR valve?

The diagram calls out 9D476 as the GASKET associated with the EGR valve area.

Where do the vacuum hoses marked with a % symbol come from?

A footnote states '% CUT FROM 12226 BULK HOSE', meaning those hoses are cut to length from Ford 12226 bulk hose.

What fastener part numbers are shown in this diagram?

Starred fastener callouts include 45356-S, 45357-S, 45358-S, N803243-S (AI-106), 387065-S (II.187-AJ), and 383004-S (II-191-VC).

What is the drawing number of this Ford illustration?

The illustration is marked P-21174 in the lower right corner.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877822

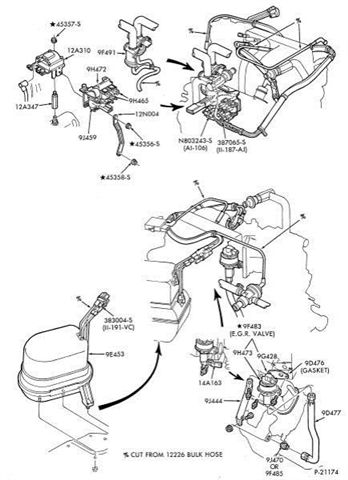

1996 Ford Bronco 5.0L EGR & Vacuum Component Diagram - Ford Part Callouts

Emissions component diagram showing EGR valve, solenoids and connecting vacuum hoses on an engine

‹ ›

Emissions vacuum routing diagram identifying the EGR valve, solenoids, canister and connecting hoses with part numbers.

AI caption July 2011 · Photo 112 of 224

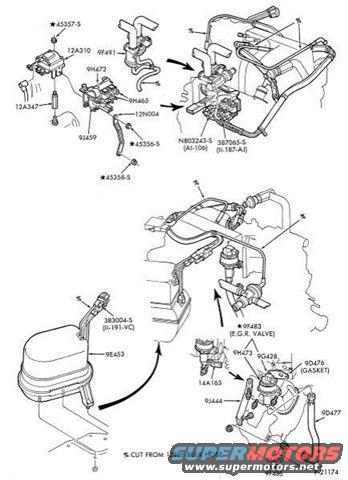

This document is a Ford exploded parts/routing illustration (drawing number P-21174) showing emission control and vacuum system components on a V8 engine, uploaded as applying to a 1996 Ford Bronco with the 5.0L (TAB/TAB emissions calibration). The diagram uses Ford base part-number callouts to identify components and their installed locations on the engine. Identified items include the EGR valve (9F483), EGR valve gasket (9D476), EGR tube/related fittings (9D477), vacuum/EGR solenoid and bracket hardware (9H472, 9H465, 9J459, 9J444, 9H473, 9G428), air management components (9E453 silencer/canister-style component, 9F491, 9E485 or 9J470), sensor 14A163, wiring/harness items (12A310, 12A347, 12N004), and various fasteners marked with stars (45356-S, 45357-S, 45358-S, N803243-S AI-106, 387065-S II.187-AJ, 383004-S II-191-VC). A footnote indicates that hoses marked with the % symbol are cut from 12226 bulk vacuum hose. A reader can use this to identify part numbers, mounting relationships, and vacuum hose routing for the EGR and related emission components when servicing or reassembling the system.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What Ford part number is the EGR valve in this diagram?: The EGR valve is identified by callout 9F483, labeled 'E.G.R. VALVE' in the diagram.
What is the gasket part number for the EGR valve?: The diagram calls out 9D476 as the GASKET associated with the EGR valve area.
Where do the vacuum hoses marked with a % symbol come from?: A footnote states '% CUT FROM 12226 BULK HOSE', meaning those hoses are cut to length from Ford 12226 bulk hose.
What fastener part numbers are shown in this diagram?: Starred fastener callouts include 45356-S, 45357-S, 45358-S, N803243-S (AI-106), 387065-S (II.187-AJ), and 383004-S (II-191-VC).
What is the drawing number of this Ford illustration?: The illustration is marked P-21174 in the lower right corner.
