Custom 12' Cargo/Camper Trailer Blueprint - Curb Side View with Dimensions

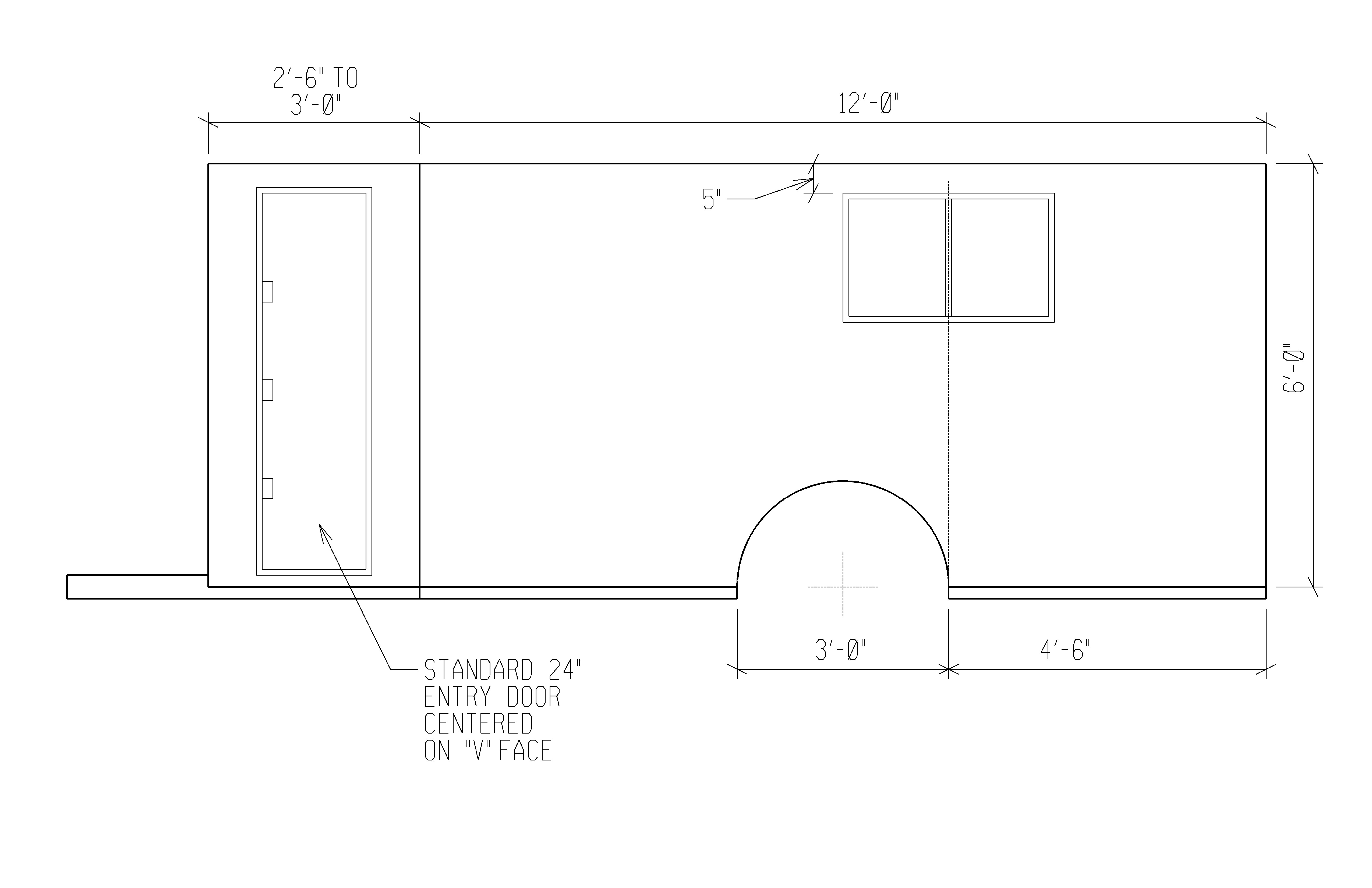

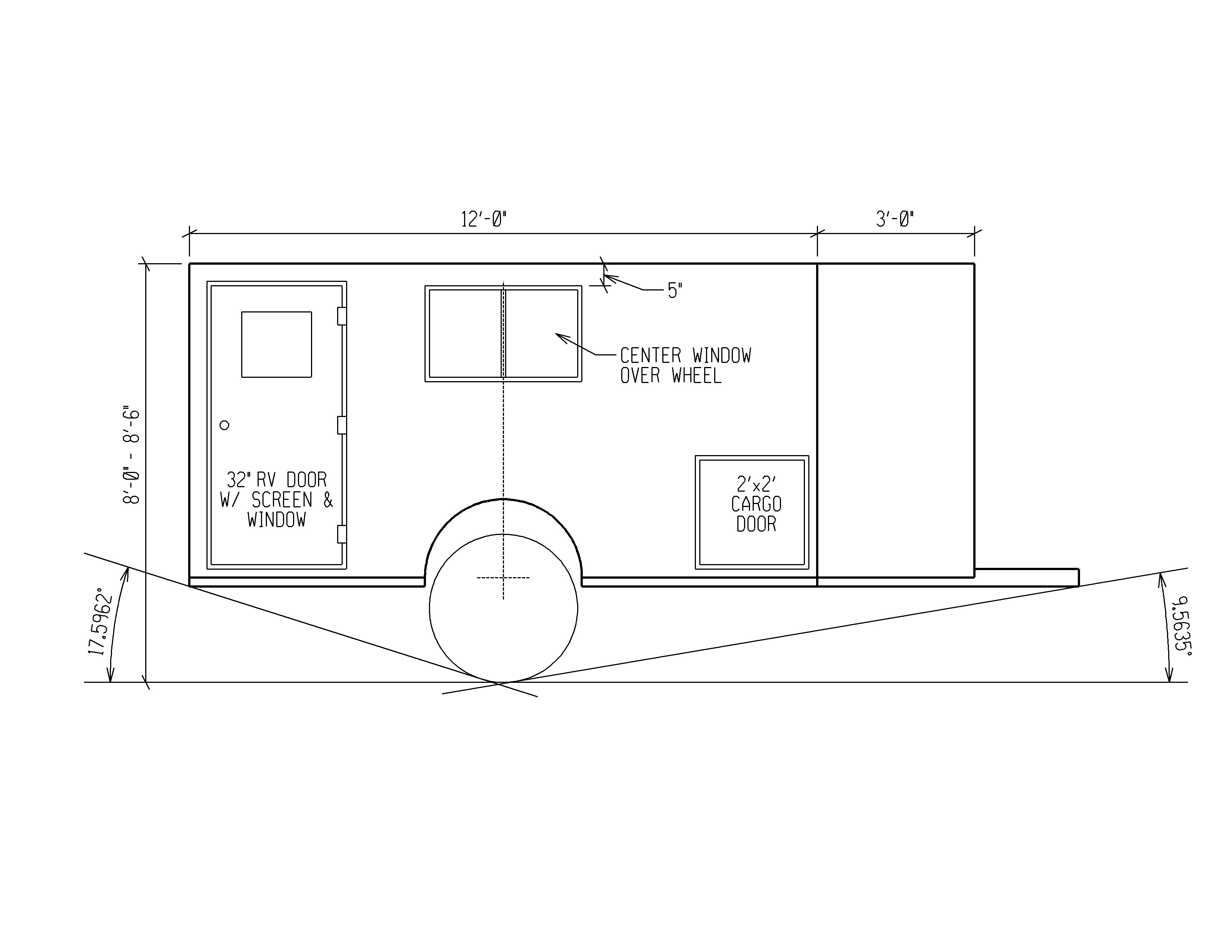

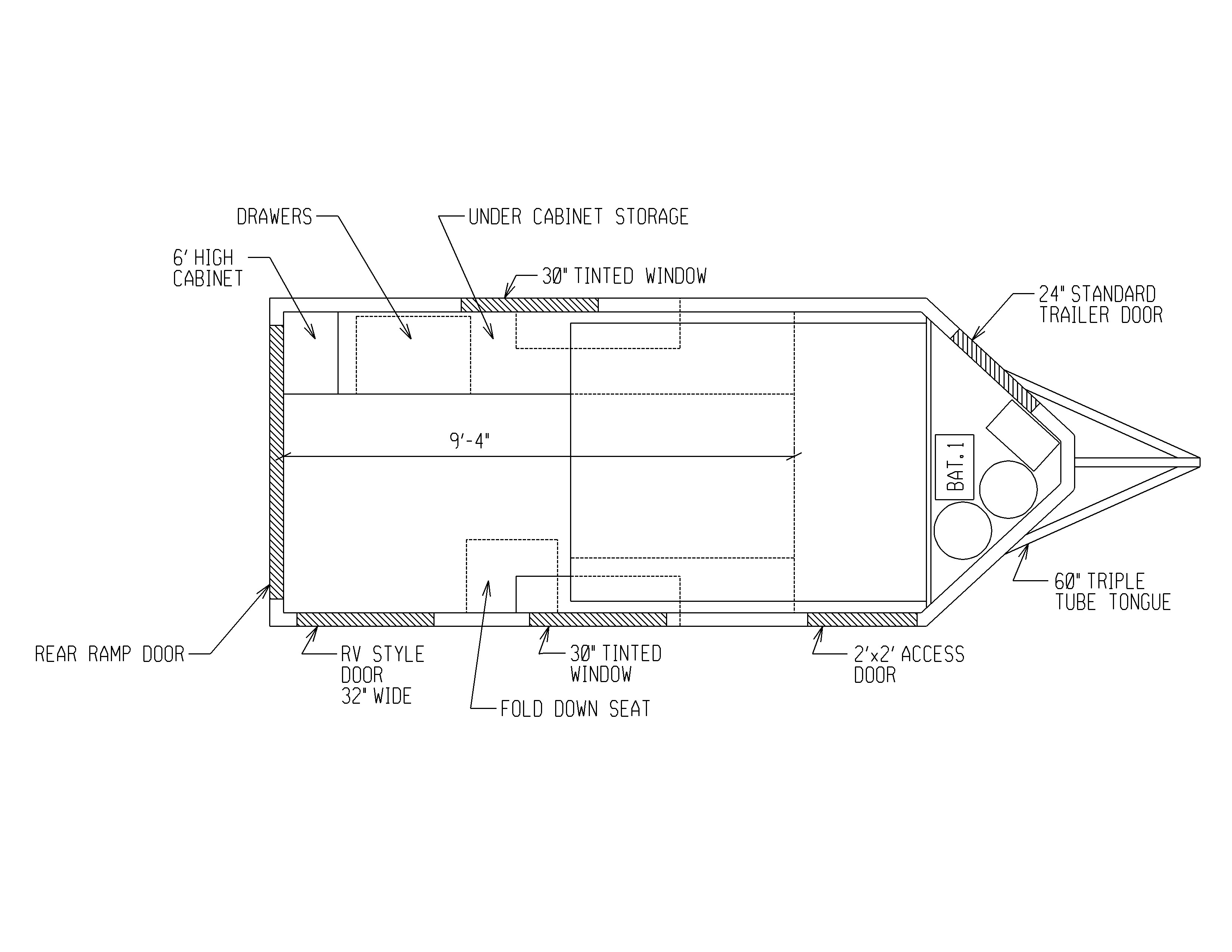

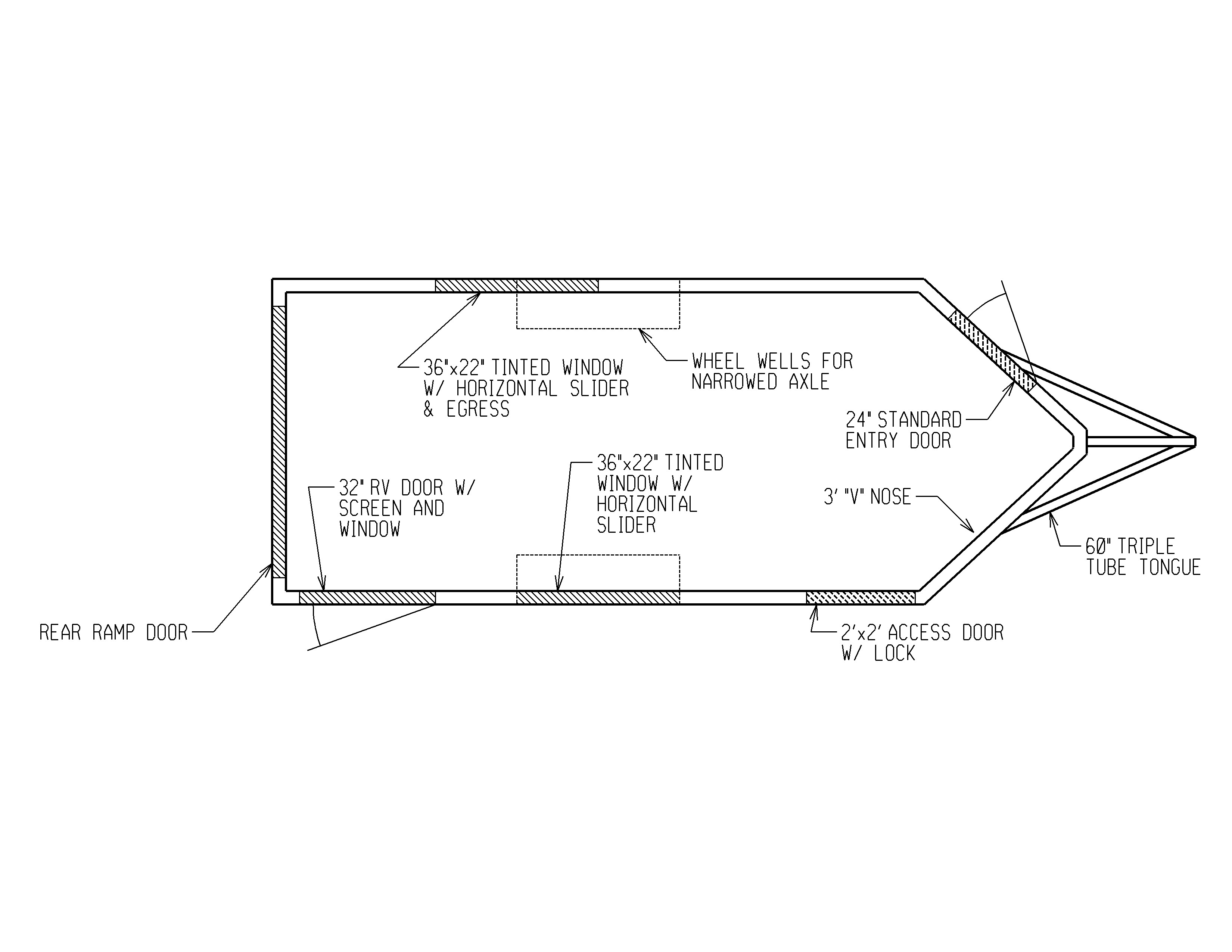

This document is a dimensioned blueprint titled by its filename as a curb-side elevation view of a custom cargo/camper trailer. The drawing shows a trailer body 12'-0" long and 6'-0" tall, with an additional 3'-0" section at one end and a tongue/frame member extending beyond it. Key features called out include a 32" RV door with screen and window, noted to be placed "as far back as possible"; a sliding center window positioned directly over the wheel, set 5" down from the top of the wall; a 3'-0" wide semicircular wheel-well arch whose centerline is dimensioned 6'-0" from the body wall; and a 2'x2' cargo door with the instruction to "place door as far forward as possible." The drawing is part of a multi-view set (plan, road side, angle, and fabrication views appear in the same album), evidently prepared as fabrication instructions for building or ordering the trailer shell. A reader can learn the overall side-wall dimensions, door and window sizes, and the intended placement rules for the doors and window relative to the wheel and body ends. No part numbers, dates, or vehicle applicability information appear on the drawing.
