Ford Front Spindle Rolling Diaphragm Seal 3254 Installation - Tool T83T-3132-A

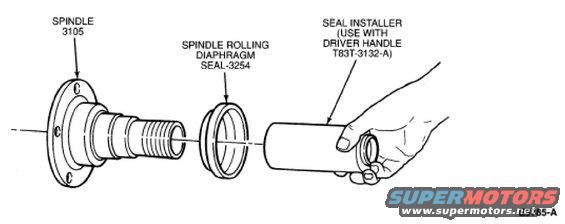

This document is a single illustrated page from a Ford factory service procedure, showing the installation of a spindle rolling diaphragm seal onto a front wheel spindle. The exploded-view line drawing depicts three items aligned on a common axis: the spindle (Ford basic part number 3105) on the left, the spindle rolling diaphragm seal (basic part number 3254) in the middle, and a cylindrical seal installer tool on the right, shown held in a technician's hand. A callout notes that the seal installer is to be used with driver handle T83T-3132-A (a Ford special service tool number). The figure reference number E9785-A appears at the bottom right, consistent with Ford service manual artwork. The page contains no torque specifications, step-by-step text, or year/model applicability statements — it is purely an illustration identifying the components and the special tool required to drive the rolling diaphragm seal onto the spindle. A reader learns which seal fits the spindle, its basic part number (3254), and that the correct installation method uses a dedicated seal installer cup driven with handle T83T-3132-A rather than improvised tools. It was uploaded as part of a multi-page front wheel bearing service set (bearing1–bearing5) for a 1995 Ford Bronco.
