Ford Air Cleaner & Intake 9600 Exploded Parts Diagram (2011 Ford Illustration)

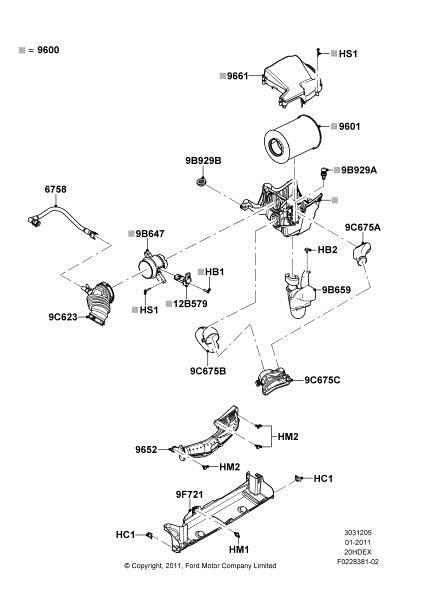

This document is an official Ford exploded parts illustration (drawing reference F0228381-02, sheet code 3031205, dated 01-2011, code 20HDEX) covering the air cleaner and air intake system, identified overall by base part group 9600. The diagram shows the relationship of components including the air cleaner cover (9661), air filter element (9601), air cleaner housing/tray assembly, intake resonator ducting (9C623, 9C675A, 9C675B, 9C675C), throttle body/air flow related parts (9B647, 9B659, 12B579), a hose (6758), sensors/grommets (9B929A, 9B929B), lower shields and trays (9652, 9F721), and associated hardware fasteners labeled HS1, HB1, HB2, HM1, HM2, and HC1. Dashed leader lines show how each component and fastener assembles into the complete air intake system. A reader can use this diagram to identify Ford base part numbers for ordering replacement air intake components and to see the assembly order and fastener locations. The document is copyrighted 2011 by Ford Motor Company Limited, indicating it belongs to a circa-2011 Ford service/parts publication rather than stating a specific model or model year applicability on the page itself.
