1993 Ford Bronco Door Latch & Lock Rod Exploded Diagram - Part Numbers

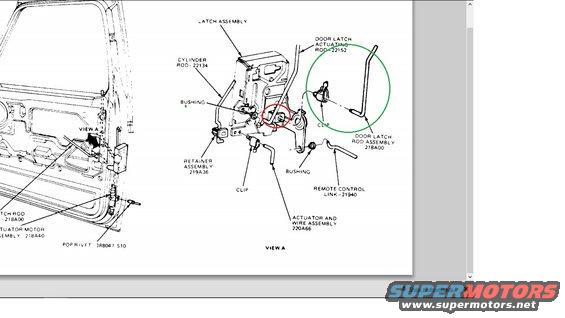

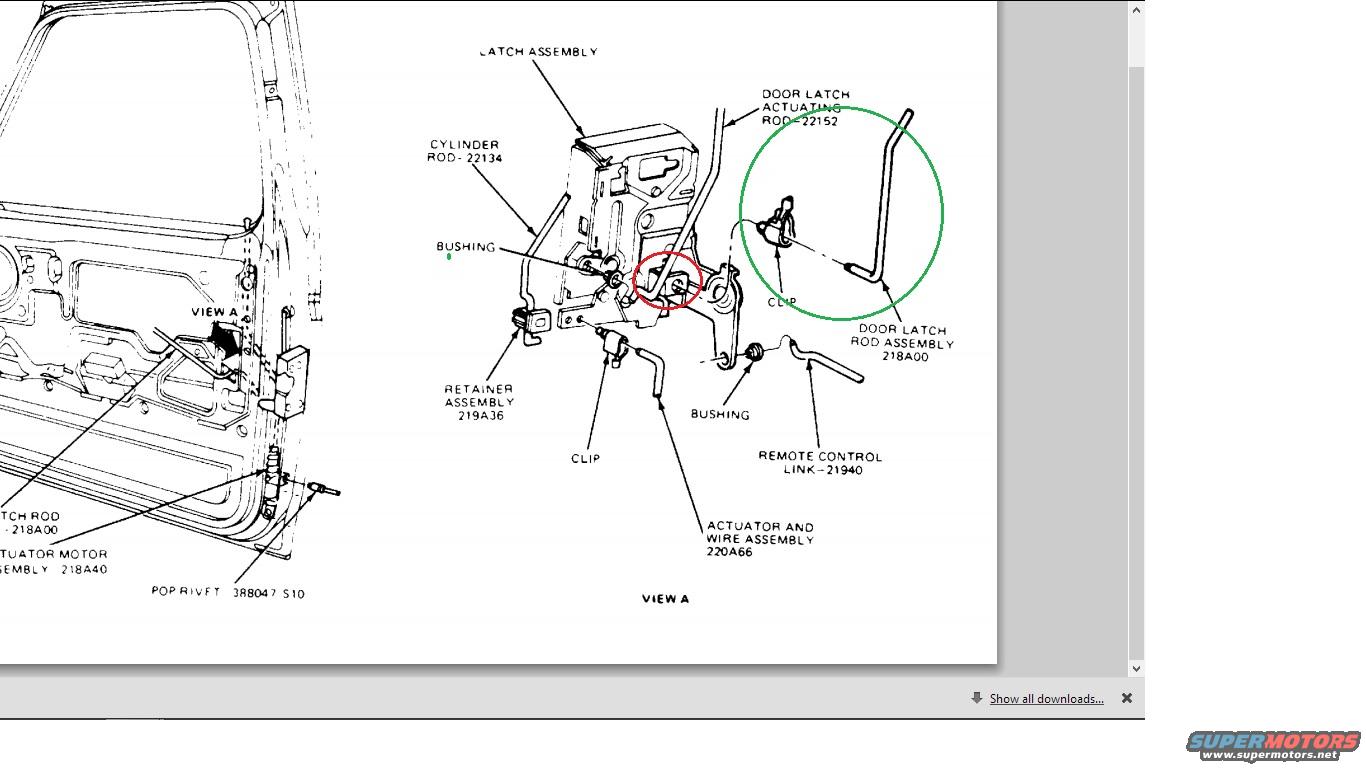

This document is an exploded parts diagram of a Ford door latch and lock mechanism, uploaded as 'lockdiagram.jpg' to a 1993 Ford Bronco gallery. It shows two views: a full door panel illustration on the left (with an arrow indicating VIEW A) and a detailed close-up (VIEW A) of the latch assembly on the right. Labeled components include the latch assembly, cylinder rod (22134), door latch actuating rod (22152), door latch rod assembly (218A00), retainer assembly (219A36), remote control link (21940), actuator and wire assembly (220A66), actuator motor assembly (218A40), pop rivet (388047-S10), plus bushings and clips. Hand-drawn annotations circle the door latch rod assembly (green) and a connection point on the latch (red), suggesting the uploader was highlighting where the rod engages the latch mechanism. The diagram is useful for anyone repairing or reassembling a Ford door latch/power lock system, identifying Ford part group numbers for the linkage rods, actuator, and hardware, and understanding how the actuating rods, clips, and bushings connect the lock cylinder and remote control link to the latch. No year, model, or engine applicability text is visible on the diagram itself.
