What wire circuit feeds the headlights from the headlight switch?

Circuit 15 (R/Y, Red/Yellow), which goes to the MFS and to the headlights.

Which wires on the headlight switch are always hot?

Circuit 38 (BK/O), which connects to the fuse box, and circuit 195 (T/W) are labeled Always Hot.

What wire from the AutoLamp mirror triggers the relays?

A White/Pink wire from the mirror feeds the Parking Light Relay and Headlight Relay.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/963306

Ford Bronco Auto Headlights Wiring Diagram - AutoLamp Mirror & Relay Circuits

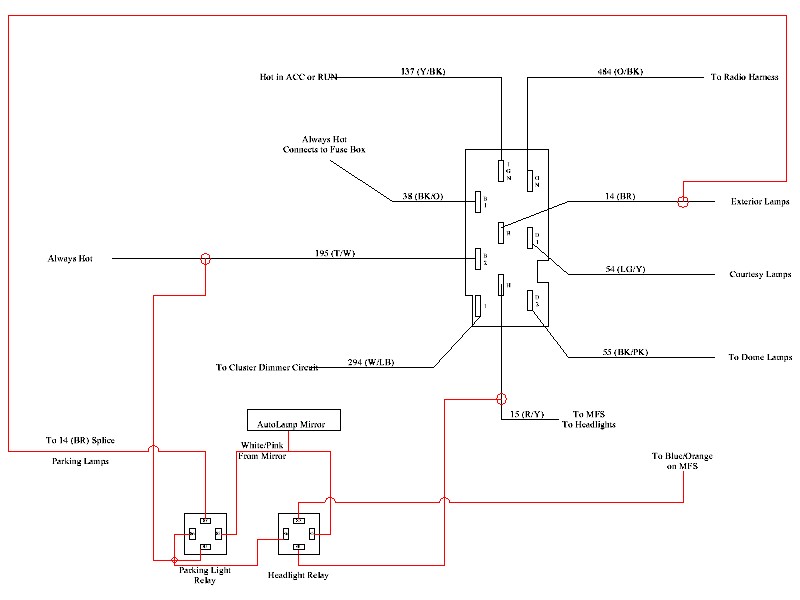

Headlight and parking-lamp wiring diagram with relays and color-coded wires

‹ ›

Wiring diagram showing headlight and parking-lamp relays, a multi-pin connector and color-coded circuits feeding courtesy, dome and exterior lamps.

AI caption January 2013 · Photo 554 of 3001

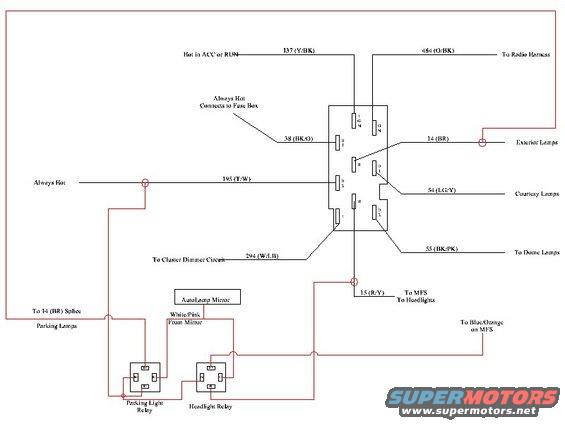

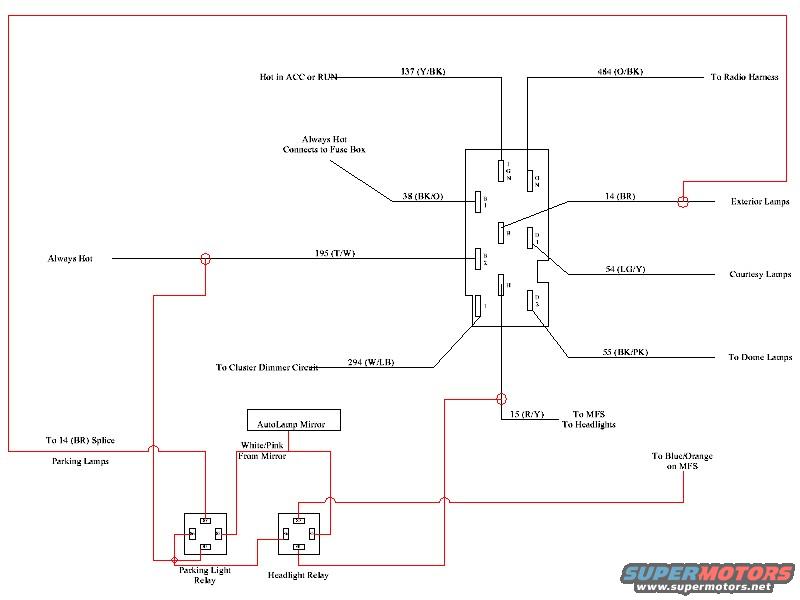

This hand-drawn wiring diagram documents an automatic headlight (AutoLamp) retrofit centered on a headlight switch connector. It labels the switch's wire circuits by Ford circuit number and color code: 137 (Yellow/Black, hot in ACC or RUN), 454 (Orange/Black, to radio harness), 38 (Black/Orange, always hot, connects to fuse box), 14 (Brown, exterior lamps), 195 (Tan/White, always hot), 54 (Light Green/Yellow, courtesy lamps), 294 (White/Light Blue, to cluster dimmer circuit), 53 (Black/Pink, to dome lamps), and 15 (Red/Yellow, to the multifunction switch/headlights). Red overlay lines show the added AutoLamp wiring: an AutoLamp mirror provides a White/Pink signal wire that feeds two added relays — a Parking Light Relay and a Headlight Relay. The parking light relay ties into the 14 (BR) splice for the parking lamps, while the headlight relay connects to the 15 (R/Y) headlight feed and to the Blue/Orange wire on the MFS (multifunction switch). Power for the relays is taken from the always-hot 195 (T/W) circuit. A reader can learn the headlight switch pinout/circuit colors and how to wire an auto-headlight mirror module with relays to control both parking lamps and headlights.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire circuit feeds the headlights from the headlight switch?: Circuit 15 (R/Y, Red/Yellow), which goes to the MFS and to the headlights.
Which wires on the headlight switch are always hot?: Circuit 38 (BK/O), which connects to the fuse box, and circuit 195 (T/W) are labeled Always Hot.
What wire from the AutoLamp mirror triggers the relays?: A White/Pink wire from the mirror feeds the Parking Light Relay and Headlight Relay.
What circuit controls the exterior/parking lamps?: Circuit 14 (BR, Brown) — the Parking Light Relay ties into the 14 (BR) splice for the parking lamps.
Where does the headlight relay output connect on the multifunction switch?: To the Blue/Orange wire on the MFS.
