Ford Bronco Auto Headlights Wiring Diagram - AutoLamp Mirror & Relay Add-On

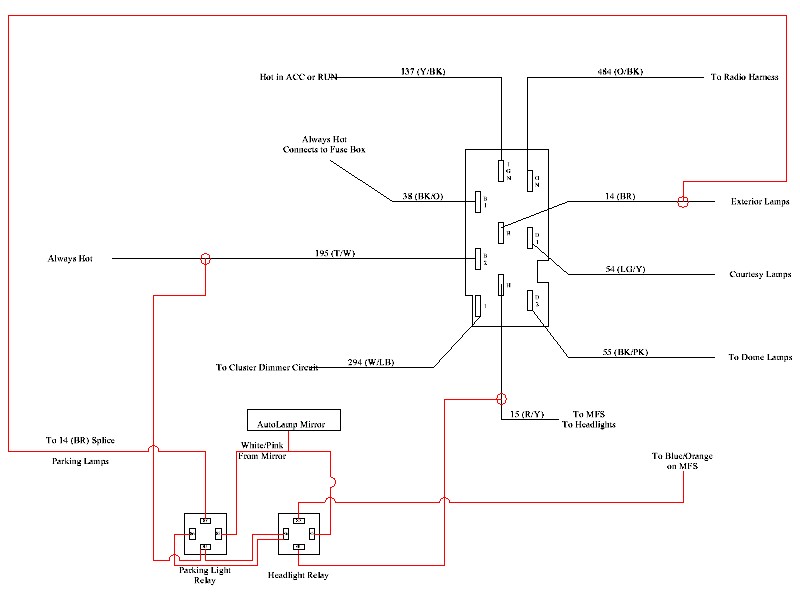

Headlight and parking-lamp wiring diagram with relays and color-coded wires

‹ ›

Wiring diagram showing headlight and parking-lamp relays, a multi-pin connector and color-coded circuits feeding courtesy, dome and exterior lamps.

AI caption January 2013 · Photo 547 of 3001

This is a hand-drawn wiring diagram, uploaded to a 1994 Ford Bronco gallery, showing how to add automatic headlights using an AutoLamp (auto-dimming/autolamp) mirror and two relays. The diagram centers on the factory headlight switch connector with its standard Ford circuit numbers and wire colors: 137 (Y/BK) Hot in ACC or RUN, 484 (O/BK) to the radio harness, 38 (BK/O) always hot from the fuse box, 195 (T/W) always hot, 14 (BR) exterior lamps, 54 (LG/Y) courtesy lamps, 55 (BK/PK) to dome lamps, 294 (W/LB) to the cluster dimmer circuit, and 15 (R/Y) to the multifunction switch (MFS) and headlights. Red lines show the added wiring: a White/Pink wire from the AutoLamp mirror drives a Parking Light Relay and a Headlight Relay, which tie into the 14 (BR) splice for parking lamps, the always-hot 195 (T/W) feed, the 15 (R/Y) headlight feed, and the Blue/Orange wire on the MFS. A reader can learn the headlight switch pinout/wire colors and how to interconnect the mirror and relays to trigger parking lamps and headlights automatically.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire colors and circuit numbers are on the Ford Bronco headlight switch in this diagram?: 137 (Y/BK) hot in ACC or RUN, 484 (O/BK) to radio harness, 38 (BK/O) always hot from fuse box, 195 (T/W) always hot, 14 (BR) exterior lamps, 54 (LG/Y) courtesy lamps, 55 (BK/PK) to dome lamps, 294 (W/LB) to cluster dimmer circuit, and 15 (R/Y) to the MFS and headlights.
What triggers the relays in this auto headlight setup?: A White/Pink wire from the AutoLamp Mirror feeds the Parking Light Relay and Headlight Relay.
Which wire feeds the headlights from the switch?: Circuit 15 (R/Y), which goes to the MFS and to the headlights; the added relay wiring also ties into a Blue/Orange wire on the MFS.
How are the parking lamps connected in this modification?: The Parking Light Relay output connects to a splice on circuit 14 (BR), the exterior lamps wire, labeled 'To 14 (BR) Splice / Parking Lamps'.
Which wires on the headlight switch are always hot?: Circuit 38 (BK/O), which is always hot and connects to the fuse box, and circuit 195 (T/W), labeled Always Hot.
