1994 Ford Bronco Positive Battery Cable Measurements - Starter Wiring Diagram

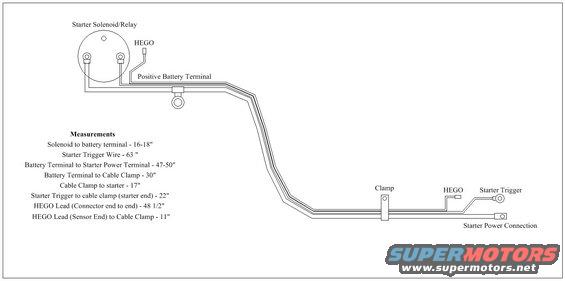

This document is a hand-drawn wiring/cable routing diagram showing the layout and length measurements for a custom positive battery cable assembly, apparently for a Ford Bronco starter circuit. The diagram depicts the starter solenoid/relay at one end, connections for the positive battery terminal, an HEGO (heated exhaust gas oxygen sensor) lead at both ends, a cable clamp mid-run, and terminations at the starter (Starter Trigger and Starter Power Connection). A measurements list specifies cable segment lengths: solenoid to battery terminal 16-18", starter trigger wire 63", battery terminal to starter power terminal 47-50", battery terminal to cable clamp 30", cable clamp to starter 17", starter trigger to cable clamp (starter end) 22", HEGO lead connector end to end 48 1/2", and HEGO lead (sensor end) to cable clamp 11". A reader can use this document as a template for fabricating a replacement positive battery lead with integrated starter trigger and HEGO sensor wiring, knowing exactly how long each segment should be and where the clamp and connectors sit along the cable run. No part numbers, wire gauges, colors, or vehicle year/model identifiers appear in the drawing itself.
