1979 Ford Bronco Alternator Voltage Regulator Connector C-204 Wiring Diagram

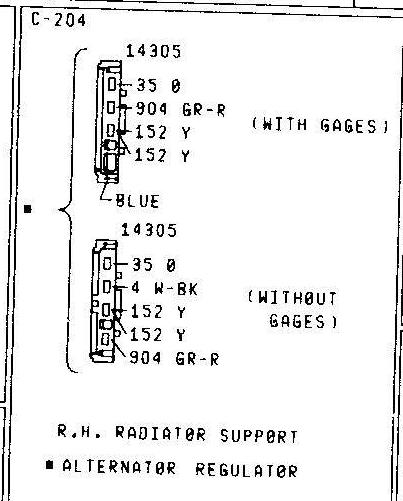

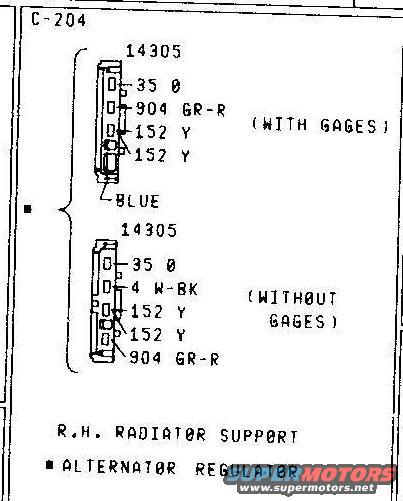

This document is a wiring connector diagram identified as connector C-204, showing the alternator (voltage) regulator connector, which is located on the right-hand (R.H.) radiator support. Two versions of the connector are illustrated for wiring harness 14305: one for vehicles equipped with gauges ('WITH GAGES') and one for vehicles without gauges ('WITHOUT GAGES'). For the with-gauges version, the connector pins carry circuit 35 (orange), circuit 904 GR-R (green-red), two circuit 152 Y (yellow) wires, and a wire noted as BLUE. For the without-gauges version, the pins carry circuit 35 (orange), circuit 4 W-BK (white-black), two circuit 152 Y (yellow) wires, and circuit 904 GR-R (green-red). The diagram lets a reader identify the correct wire circuit numbers and color codes at the alternator regulator connector depending on whether the vehicle has a gauge-equipped instrument cluster, useful for diagnosing charging system or gauge wiring problems. The page is part of a larger album of scanned wiring diagrams attributed to a 1979 Ford Bronco, though this page itself does not state a year or model.
