1979 Ford Bronco Instrument Cluster Connector C-208A Pinout (With Gauges) 14401

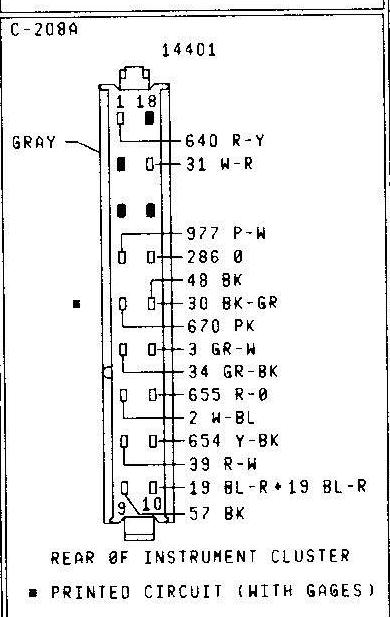

This document is a connector pinout diagram for connector C-208A, identified with base part number 14401 (wiring assembly), showing the rear view of an instrument cluster connector for a version equipped with gauges. The connector is noted as GRAY in color and is an 18-position connector, with pin 1 and pin 18 labeled at the top and pins 9 and 10 labeled at the bottom. The diagram lists the circuit numbers and wire color codes at each populated cavity: 640 R-Y, 31 W-R, 977 P-W, 286 O, 48 BK, 30 BK-GR, 670 PK, 3 GR-W, 34 GR-BK, 655 R-O, 2 W-BL, 654 Y-BK, 39 R-W, 19 BL-R (splitting to a second 19 BL-R), and 57 BK. Several cavities are shown filled/blocked. A footnote indicates the marked circuit connects to the printed circuit (with gages). A reader can use this diagram to identify which circuit number and wire color belongs to each cavity when diagnosing or repairing instrument cluster wiring on a vehicle with the gauge package. The document itself shows no year, make, or model; it was uploaded as part of a 1979 Ford Bronco wiring reference album.
