What wire colors are on the Ford distributor connector C-322?

Circuit 734 is O-Y (orange-yellow), circuit 733 is BK-GR (black-green), and circuit 735 is P-BL (purple-blue).

Where is connector C-322 located?

The document states it is located on the engine near the distributor assembly.

What color is the distributor connector body?

The connector is labeled BROWN in the diagram.

How many wires/pins does the distributor connector have?

Three pins: circuits 734, 733, and 735, shown on both mating halves of the connector.

What does the square symbol in the diagram indicate?

The legend indicates the square-marked connector half belongs to the distributor assembly.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ “buyers guide”/ Photo supermotors.net/registry/media/975549

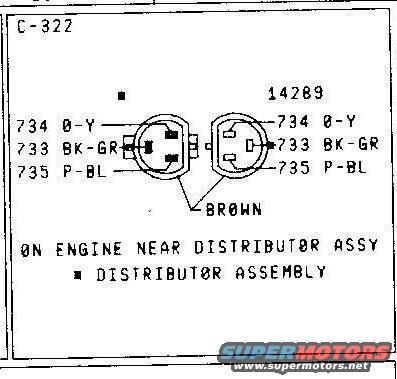

1979 Ford Bronco Distributor Connector C-322 Wiring Diagram - Pinout & Colors

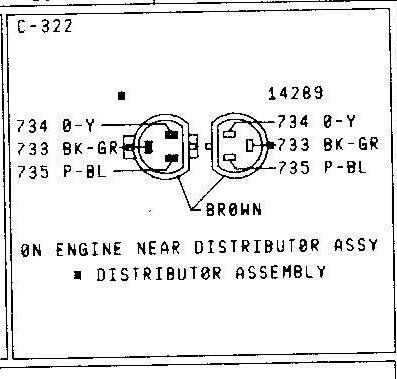

Distributor assembly connector C-322 pinout with wire numbers and colors

‹ ›

Wiring connector diagram for distributor assembly (C-322) on engine near distributor, listing pin wire numbers and color codes.

AI caption April 2013 · Photo 69 of 104

This document is a wiring connector diagram labeled C-322, showing the mating pair of connectors for a Ford distributor assembly. The diagram depicts two connector faces (a plug and its mating receptacle), each with three terminals. Both sides carry the same three circuits: circuit 734 with orange-yellow (O-Y) wire, circuit 733 with black-green (BK-GR) wire, and circuit 735 with purple-blue (P-BL) wire. The connector body color is noted as BROWN. The harness/connector reference number 14289 appears above the connectors. A caption states the connector is located "ON ENGINE NEAR DISTRIBUTOR ASSY," and a legend square indicates the marked side belongs to the DISTRIBUTOR ASSEMBLY. From this page a reader can identify the correct connector (C-322), its physical location on the engine, the wire colors and circuit numbers for each of the three pins, and which connector half connects to the distributor. It is one page of a larger album of 1979 Ford Bronco wiring reference scans, though the page itself does not state a year or model.
